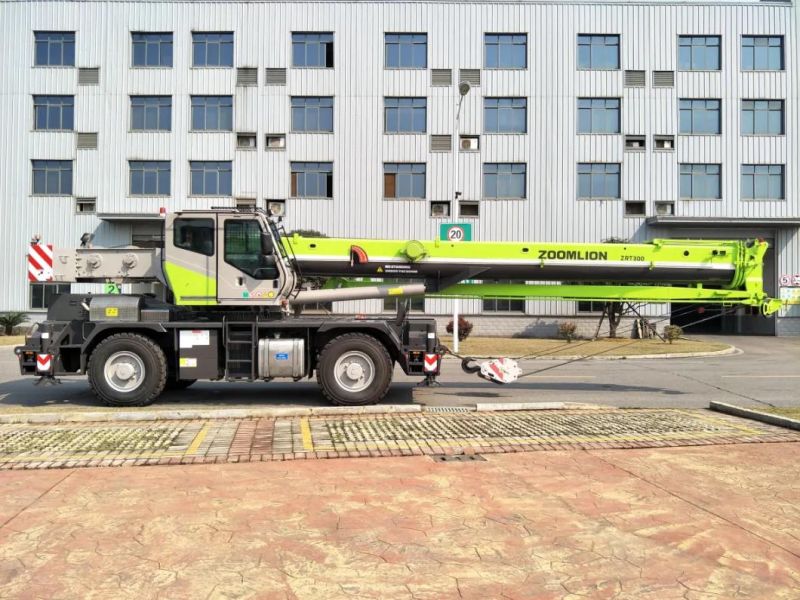

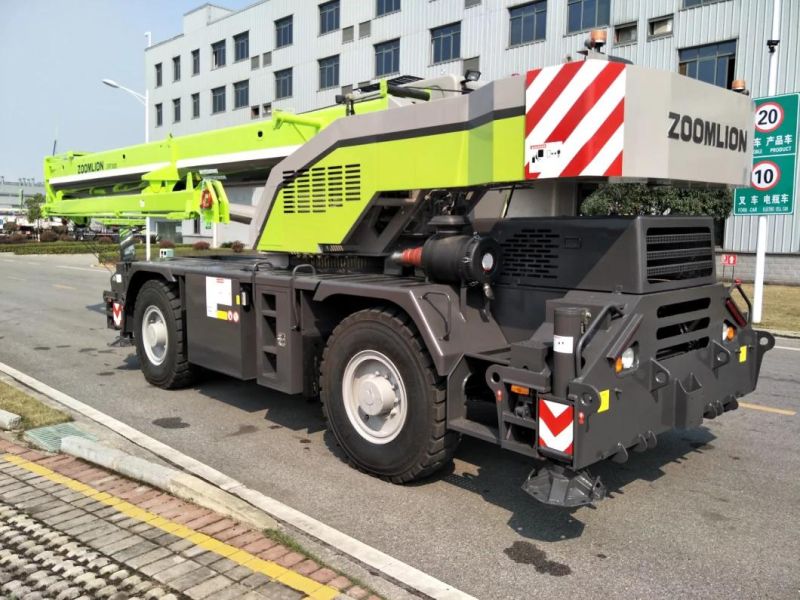

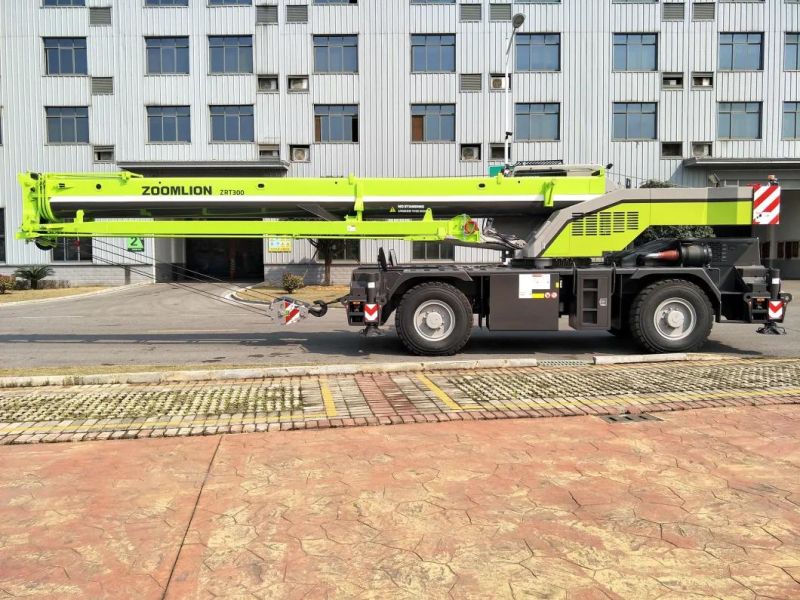

Zoomlion 30ton Zrt300 Rough Terrain Crane for Sale
Sinomada Heavy Industry (Changsha) Co., Ltd.- Certification：CE, ISO9001
- Condition：New
- Maximum Lifting Height：>40m
- Maximum Lifting Weight：>16t
- Shaft Number：2
- Crane Jib：Five-Arm
Base Info
- Model NO.：ZRT300
- Type：Straight Arm
- Gross Vehicle：28300kg
- Swing Speed：0-2.5 R,Min
- Transport Package：Roro,Bulk,Nude,Container
- Specification：13600*2610*3600mm
- Trademark：ZOOMLION
- Origin：China
- HS Code：87051091
- Production Capacity：100units,Month
Description
ItemUnitValueWork performanceMax. rated lift capacity × work radius
lb.ft
kg.m
66138.7×9.8
30000×3
Max. load moment of basic jiblbf.ft
kN.m
708480
960
Max. load moment of max. length main boomlbf.ft
kN.m
487080
660
Max. lifting height of max. length main boom m37.2Max. lifting height of jibm45DimensionsOverall dimensions(L×W×H)mm13600×2610×3600Outrigger spread(L×W)mm6700×6300Main boom length (Fully retracted-fully extended)in
mm
421.3~1378
10700~35000
Jib lengths (Fully retracted-fully extended)in
mm
31
8000
Boom angle°-2 -80Swing range°360°unlimited swing(Full range)Work SpeedsMax. hoist rope speed (Main winch)m/min140Min. boom telescoping out times67Min. boom telescoping in times50Min. boom up times35Min. boom down times50Swing speedr/min0-2.5Hydraulic systemRated working pressureMPa22Rated working flowL/min300Hydraulic oil tank capacityL580MassComplete vehicle kerb masskg28300Front axle loadkg14600Rear axle loadkg13700DrivingMax. travel speedkm/h45Wheelbasemm3880Treads (Front / rear)mm2214Max. gradeability%51
