5510 Model Topless Tower Crane Self Erecting Tower Crane
SHANDONG TAVOL MACHINERY CO., LTD.- Certification：CE, ISO9001
- Condition：New
- Maximum Lifting Height：100-150m
- Maximum Lifting Weight：6t
- Installation：Jack-Up
- Moving Type：Fixed
Base Info
- Model NO.：5510
- Type：Top-Slewing Crane
- Product Name：5510 Model Topless Tower Crane Self Erecting Tower
- Jib Length：55m
- Rated Loading Capacity：6ton
- Mini Load Capacity：1.0ton
- Power Source：380V,50Hz,3phase
- Cabin：Linkage Control Desk
- Color：Project Yellow
- Sling Type：Wire Rope
- Foundation Type：Embeded Leg
- Distribution Box：Schneider
- Transport Package：40hc Container
- Specification：power: 380V
- Trademark：Tavol
- Origin：China
- HS Code：8426200000
- Production Capacity：10000sets,Year
Description
1.suitable for all kinds of construction project and can work under all kinds of work condition.
2.It has high working speed, good speed-adjusting performance, steady operation and high efficiency.
3.The crane has complete set of safety devices, which can guarantee the safe and high efficienct operation of the equipment.
4.Three-speed motor and mono-speed ratio decelerator are applied in the lifting struction, which enables heavy load low speed and light load high speed.
5.Planet gear decelerator is applied in the circumgyrating structure, together with moment-limiting hydraulic coupler, which can relize high load capacity, steady starting and reliable operation.
>>>Feature&Advantage of the Tower Crane:
| 1 | Torque limiter | it will warns when lifting weights reach to 90% of rated lifting torque. When reach to 110% of the rated lifting torque, it will limit rising upwards and trolley. |
| 2 | Weight limiter | Control the maximum lifting capacity, lifting weight reach to 40% of the rated capacity, limit high-speed lifting; lifting weight reach to 110% of the rated capacity, limit the lifting up. |
| 3 | Height limiter | Control the lowest and highest extreme position of lifting hook. |
| 4 | Slewing limiter | Control the extreme turns number of turn left and right. |
| 5 | Amplitude limiter | Control trolley limit position of inward and outward. |
| 6 | Overload protection | If the material is over the capacity, the crane will give a sharp warning for protection itself. |
| 7 | Emergency brake | If the operation staff encounter some emergency situation, we could start the emergency brake system to protection the related treasure. |
| 8 | Control Method | Room control or remote control to avoid any injury to the operation staff. |
| 9 | Main lifting motor | with thermal protection and currency protection. |
>>>Different Models of Topless Tower Cranes are Supplied:
| Model | Standard model | Jib length (m) | Free standing height(m) | Max.load(t) | Max.Tip load(t) | Mast section size(m) |
| QTZ50 | 5010 | 50 | 30 | 4.0 | 1.0 | 1.6x1.6x2.5 Material: ∠160×160×14 |
| QTZ80 | 5610 | 56 | 40 | 6.0 | 1.0 | 1.6x1.6x2.5 Material:135×135×12square tube |
| QTZ80 | 5510 | 55 | 41.5 | 6.0 | 1.0 | 1.68×1.68×2.99 Material:L160X16/Q345B |
| QTZ80 | 6010 | 60 | 41.6 | 8.0 | 1.0 | 1.68×1.68×2.99 Material:L160X16/Q345B |
| QTZ125 | 6018 | 60 | 47.6 | 10 | 1.8 | 1.68×1.68×2.99 Material:L180X18/Q345B |
| QTZ125 | 6515 | 65 | 60.8 | 10 | 1.5 | 2.0×2.0×2.99 Material: L180X18/Q345B |

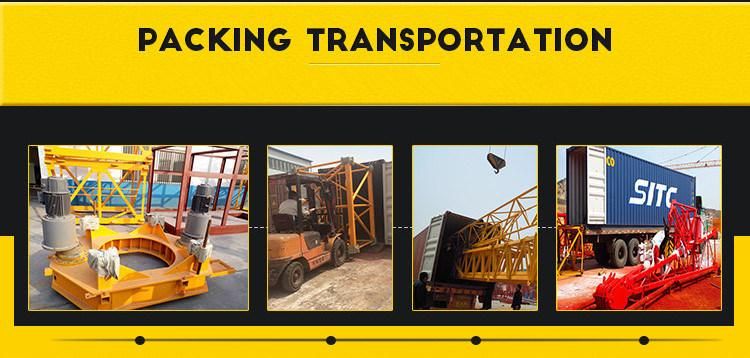

>>>Good package to protect the goods:
>>>Factory View:
Our company mainly focuses on design, manufacture, installation, maintenance, repair,sales, import and export. Our main products areTowerCrane, Construction Hoist, Overhead Crane, Gantry Crane, Jib Crane, Crane Hook, Lift platform and Crane Spare Parts.
We have exported to may countries such as Bangladesh, Vietnam, Thailand, Malaysia, Australia, Kazakhstan, Congo, Ethiopia, Peru, Brazil, Egypt and Iceland and so on.
We would like to satisfy your different kinds of requirement for the Cranes by our First Class Quality with our Excellent Service.
Welcome to visit us!
>>>Why Chose Us:
- We manufacture a wide range of products: Topkit, topless, luffing jib tower cranes. Also building hoist & suspended platform are part of our product range. Tavol is the one-stop solution for your equipment needs.
- All Tavol products meet the international standard. We study and adopts excellent manufacturing techniques to introduce and independenly develop high-tech manufacturing facilities.
- Safity is always in our mind, every models are equipped with multiple safty devices.
- Understanding what you need is the key, years of manufacture and trading experience will help all of our customers find the right product.

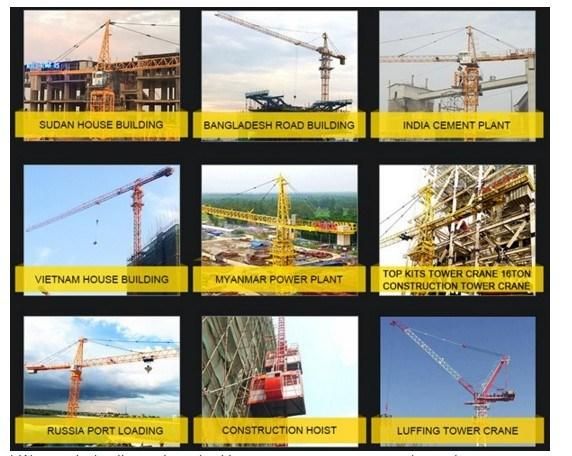

>>>Sucessful Case:
>>>FAQ:
Please supply more detail to us:
1. Building height or tower crane working height.
2. Working range or jib length
3. Max load capacity and tip load capacity.
4. Other Special requirements
If you have any need,please contact with us!
Name: Ellen Xiao
Mobile:0086-15269864317
