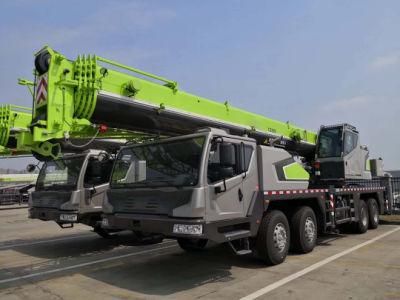

Hydraulic 60 Tons Small Mobile Winch Crane Ztc600V to Uzbekistan

Sinomada Heavy Industry (Changsha) Co., Ltd.
  • After-sales Service：Provided
  • Warranty：1 Year
  • Certification：CE, ISO9001
  • Condition：New
  • Maximum Lifting Height：>40m
  • Maximum Lifting Weight：>16t

Base Info

  • Model NO.：ZTC600V
  • Shaft Number：3
  • Crane Jib：Three-Arm
  • Type：Straight Arm
  • Transport Package：Nude
  • Specification：40 ton
  • Trademark：SINOMADA
  • Origin：China
  • HS Code：8429521200
  • Production Capacity：10,Month

Description

Working performanceMax. rated lifting capacitykg60000 Max. load moment of basic boomkN.m1960 Max. load moment of main boom (fully extended)kN.m1050 Max. lifting height of basic boomm12.6 Max. lifting height of main boomm43.6The parameters do not include deflection of main boom and jib.Max. lifting height of jibm59.5Work speedsMax. hoist rope speed (main winch)m/min120 Max. hoist rope speed (auxiliary winch)m/min120 Boom derricking up times50 Boom extending times95 Max. slewing speedr/min0 - 2 DrivingMax. driving speedkm/h80 Max. gradeability%37 Min. turning diameterm≤20 Min. ground clearancemm270 Oil consumption per hundred kilometersL43 MassDeadweight in driving conditionkg42000 Complete vehicle kerb masskg41870 Front axle loadkg18000 Rear axle loadkg24000 DimensionsOverall dimensions (L × W × H)mm13750×2800×3730 Outrigger spread (L)m5.92 Outrigger spread (W)mFully extended:
7.10 m
Intermediately extended: 4.80 m Tail slewing radiusmm3900 Main boom lengthm11.4 - 43.0 Boom angle°-2 - 80 Jib lengthm9.5, 16.0 Offset°0, 30Hydraulic 60 Tons Small Mobile Winch Crane Ztc600V to UzbekistanHydraulic 60 Tons Small Mobile Winch Crane Ztc600V to UzbekistanHydraulic 60 Tons Small Mobile Winch Crane Ztc600V to UzbekistanHydraulic 60 Tons Small Mobile Winch Crane Ztc600V to UzbekistanHydraulic 60 Tons Small Mobile Winch Crane Ztc600V to UzbekistanHydraulic 60 Tons Small Mobile Winch Crane Ztc600V to UzbekistanHydraulic 60 Tons Small Mobile Winch Crane Ztc600V to UzbekistanHydraulic 60 Tons Small Mobile Winch Crane Ztc600V to UzbekistanHydraulic 60 Tons Small Mobile Winch Crane Ztc600V to UzbekistanHydraulic 60 Tons Small Mobile Winch Crane Ztc600V to Uzbekistan
