• Model NO.：NMD-1
• Operation Form：Remote Control
• Type：Common Gantry Crane
• Main Girder Form：Single Girder
• Load Capacity：250kg~5000kg
• Gantry Span：up to 12 Meters
• Height of Lift：up to 8 Meters
• Type of Hoist：Electric Chain Hoist,Manual Chain Block
• Hoisting Speed：up to 8 M,Min or Manual
• Hoist Travel Speed：up to 10 M,Min or Manual
• Gantry Travel Speed：up To10 M,Min or Manual
• Maneuverability：360 Degree Free Angle of Travel
• Power Supply：220~480V, 50~60Hz, 3phase

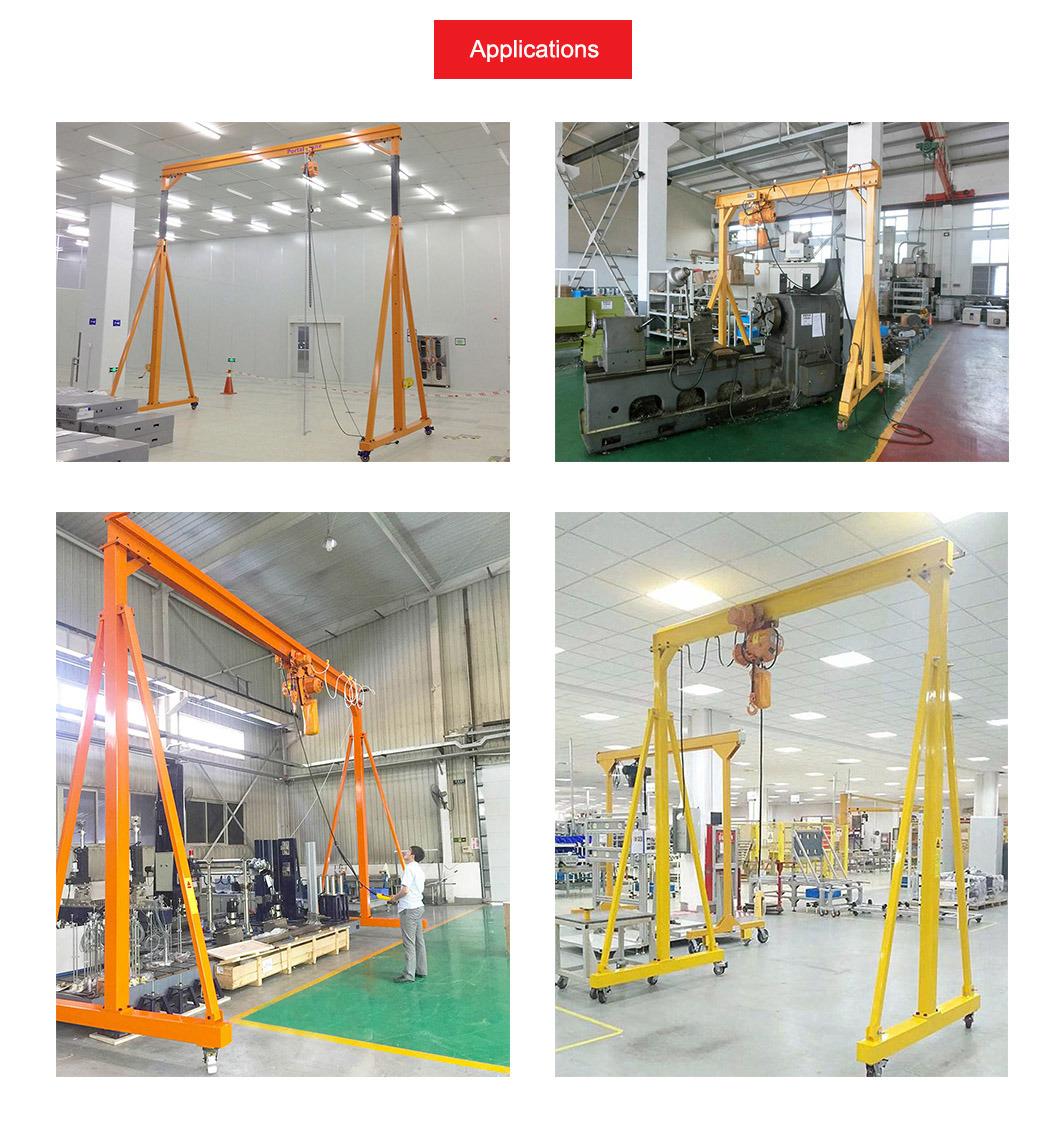

• Applications：Pump Station,Parts Machining or Machinery Assemble
• Lead Time：Within 30 Days
• Installation：Video Tutorial Support
• Random Files：Operation & Maintenance Manual, Wiring Diagram
• Spare Parts：Provide Random Spares for Two Year Maintenance
• Transport Package：Wooden Case, Waterproof Film
• Specification：Fixed Gantry Height or Adjustable (optional)
• Trademark：Nucleon
• Origin：China
• HS Code：8426193000
• Production Capacity：800 Sets Per Annum

Basic Info.

Model NO. NMD-1 Operation Form Remote Control Type Common Gantry Crane Main Girder Form Single Girder Load Capacity 250kg~5000kg Gantry Span up to 12 Meters Height of Lift up to 8 Meters Type of Hoist Electric Chain Hoist/Manual Chain Block Hoisting Speed up to 8 M/Min or Manual Hoist Travel Speed up to 10 M/Min or Manual Gantry Travel Speed up To10 M/Min or Manual Maneuverability 360 Degree Free Angle of Travel Power Supply 220~480V, 50~60Hz, 3phase Applications Pump Station/Parts Machining or Machinery Assemble Lead Time Within 30 Days Installation Video Tutorial Support Random Files Operation & Maintenance Manual, Wiring Diagram Spare Parts Provide Random Spares for Two Year Maintenance Transport Package Wooden Case, Waterproof Film Specification Fixed Gantry Height or Adjustable (optional) Trademark Nucleon Origin China HS Code 8426193000 Production Capacity 800 Sets Per Annum

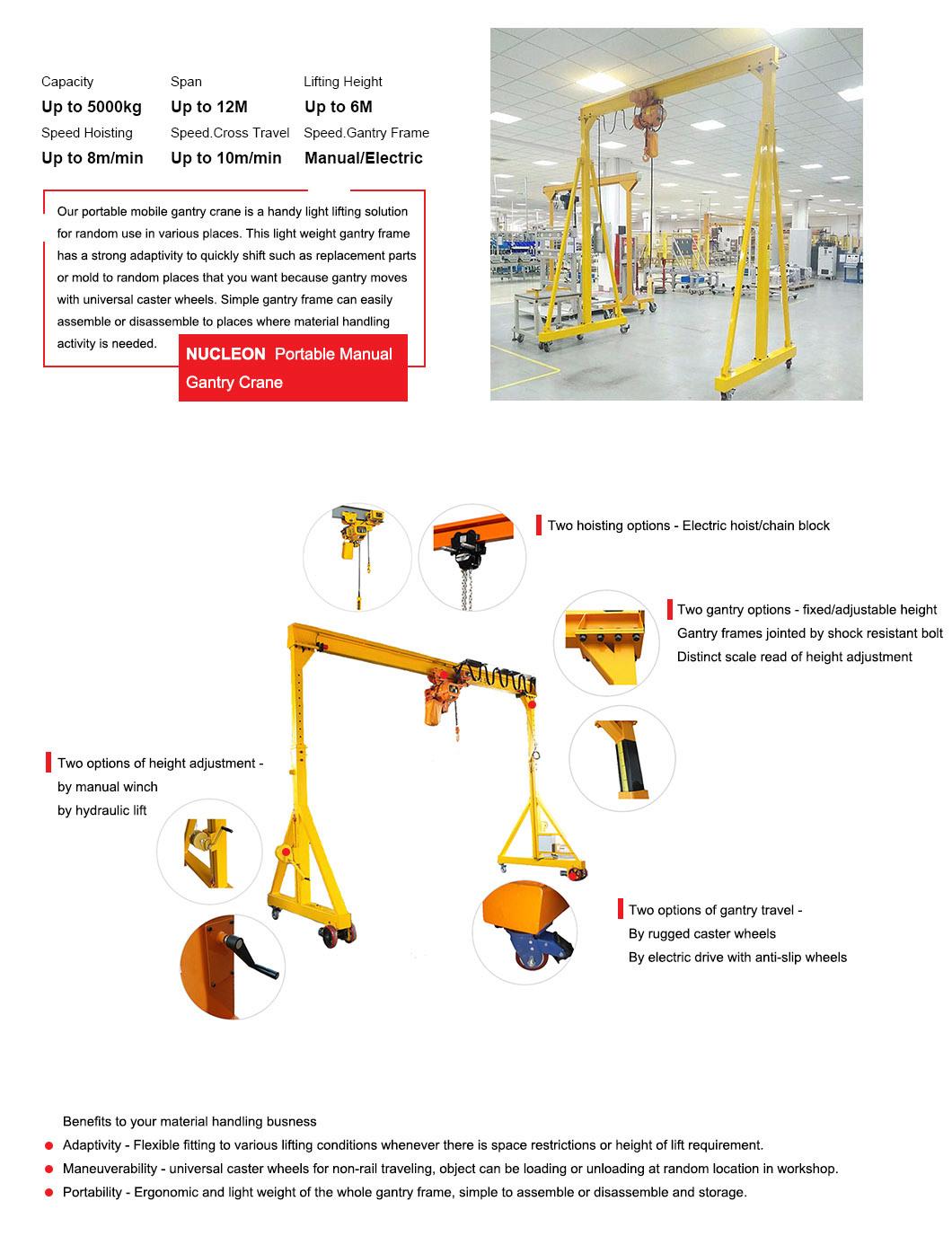

Product Description



Serie No.	Type	Capacity	Span	Lifting Height	Hoisting speed	Hoist Travel Speed	Gantry Travel Speed
NMD-1	Fixed Height of Gantry	250~3000kg	up to 10 M	up to 4 M	Manual/8m/min	Manual/10m/min	Manual
NMD-2	Adjustable Height of Gantry	250~3000kg	up to 12 M	up to 6 M	Manual/8m/min	Manual/10m/min	Manual
NMD-3	Motorized Gantry Movement	250~5000kg	up to 12 M	up to 6 M	Manual/8 m/min	Manual/10m/min	Manual/10m/min

Customer Service

1. Technical advisory of the best material handling solution before sale to maximize efficiency while optimize investment plan on the other hand through our 30 years dedications to lifting performance.

2. Installation service of overhead crane available with:
Video tutorial support for whole installation process.
7/24 remote assistance for crane installation guidance and commissioning.
Field engineer service of installation, commissioning and training.

3. Twelve months warranty after successful crane commissioning.
