• Model NO.：Stc120
• Type：Folding
• Transport Package：Nude Package
• Origin：China
• HS Code：87051091
• Production Capacity：5000pices,Year

Basic Info.

Model NO. Stc120 Type Folding Transport Package Nude Package Origin China HS Code 87051091 Production Capacity 5000pices/Year

Product Description

Feature

Stable chassis performance

Double-axle drive is used, providing good tafficability and comfortableness under complex road condition with reliable traveling performance.

Engine has the multimode power output function, which reduces power consumption.

The use of tipping over early-warning technology provides high stability and safety of the overall operation.

Long and strong boom system

Four-section boom of high strength steel structure and optimized sexangle cross section reduces weight significantly with higher safety rates.

Jib mounting angles are 0°, 15°, and 30° which ensures fast and convenient change-over between different operating conditions so as to improving working efficiency of the machine.

Energy-saving hydraulic system

Triple gear pump, load feedback and constant power control are applied to provide strong lifting capacity and good micromobility.

Unique steering buffer design is applied to ensure stable braking operation.

Intelligent electric control system

Self-developed controller SYMC especially for engineering machinery is configured. The adoption of CAN- bus full-digital network control technology ensures stable control signal, simple harness and high reliability. Timely feedback of data information can achieve the monitoring of the overall working status in real time.

Parameters

Dimension	Unit	STC160
Overall length	mm	12000
Overall width	mm	2500
Overall height	mm	3640
Power
Engine		Shangchai
Engine rated power	kW/(r/min)	180/2300
Engine rated torque	N.m/(r/min)	960/1400
Travel
Max. travel speed	km/h	80
Min. turning diameter	m	10.5
Max. grade ability	%	40
Fuel consumption for 100km	L	28
Main performance
Max. rated total lifting capacity	t	16
Base boom	m	10.5
Fully extended boom	m	32
Fully extended boom+ jib	m	40
Working speed
Boom luffing time	s	50
Boom full extension time	s	65
Max. swing speed	r/min	2.1
Max. speed of main winch (single rope) (no load)	m/min	105
Max. speed of aux. winch (single rope) (no load)	m/min	105

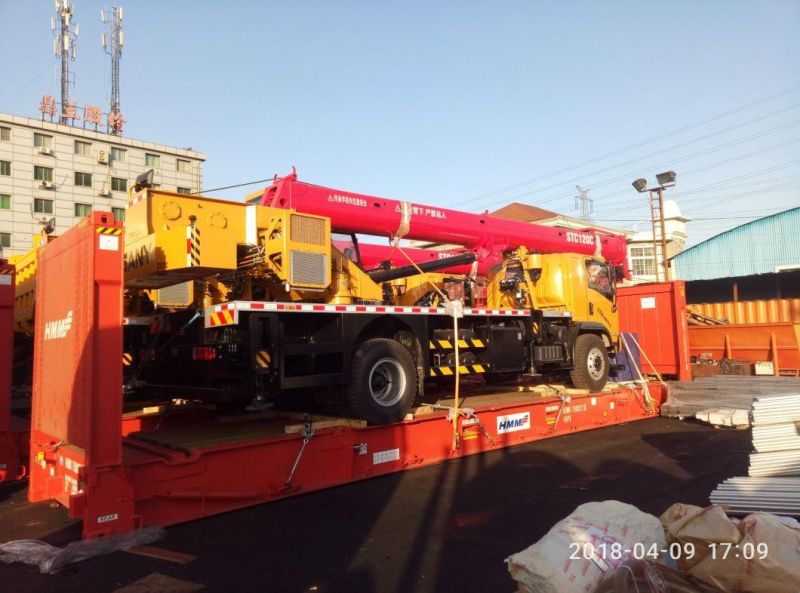

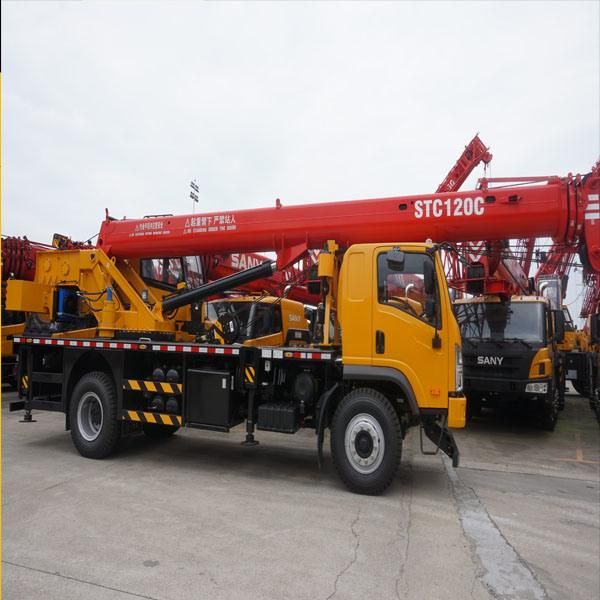

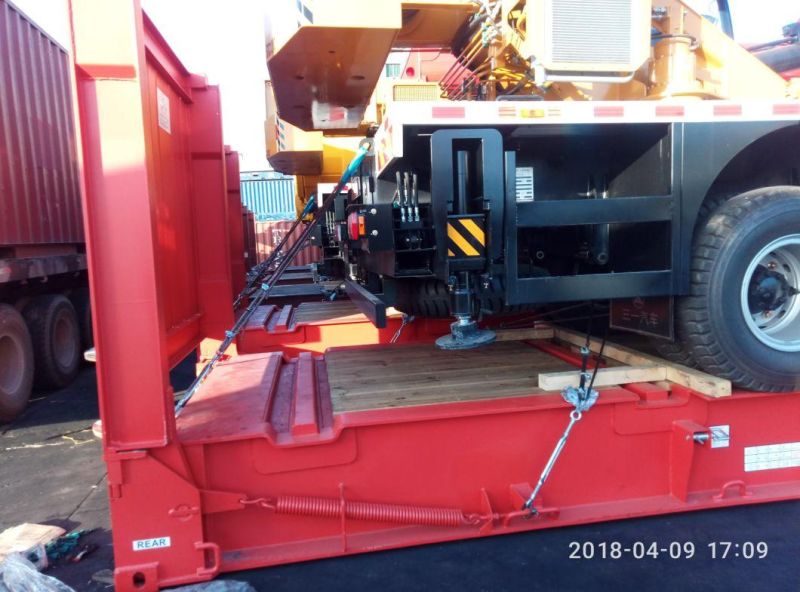

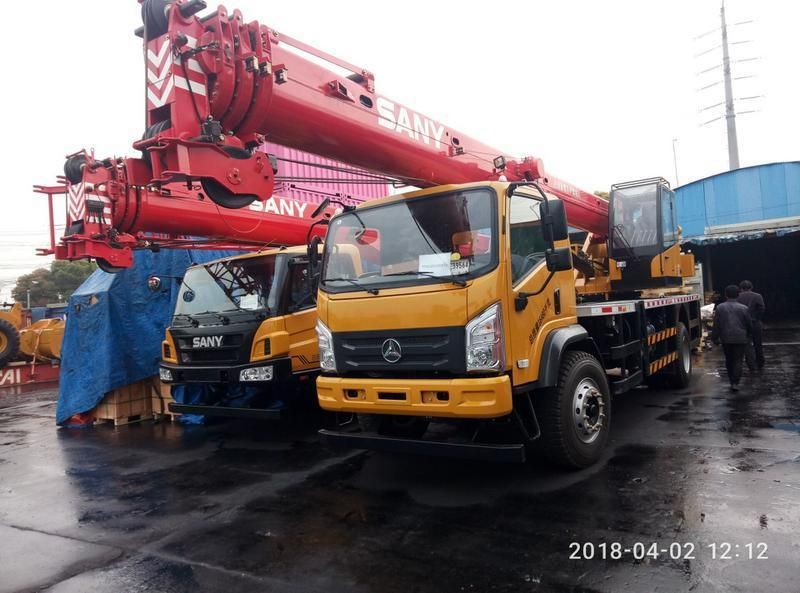

Photos
