Dongfeng 6X2 Truck with Lift Crane 10 Tons
Jinan Sinoheng Import and Export Co., Ltd.- Certification：ISO9001: 2000
- Condition：New
- Maximum Lifting Weight：8-10t
- Shaft Number：2
- Type：Trukc Mounted Crane
- Max Lifting Capacity：2000kg
Base Info
- Model NO.：SQ10SK3Q
- Recommend Power：9kw
- Crane Weight：640,818kg
- Application：Construction Usage
- Sling Type：Wire Rope
- Power Source：Hydraulic
- Moving Type：Wheel
- Installation：Assembled
- Transport Package：Nude or Container
- Specification：ISO
- Trademark：Dongfeng
- Origin：China
- HS Code：8705102200
- Production Capacity：500 Units Per Month
Description
Basic Info.
Model NO. SQ10SK3Q Recommend Power 9kw Crane Weight 640/818kg Application Construction Usage Sling Type Wire Rope Power Source Hydraulic Moving Type Wheel Installation Assembled Transport Package Nude or Container Specification ISO Trademark Dongfeng Origin China HS Code 8705102200 Production Capacity 500 Units Per MonthProduct Description

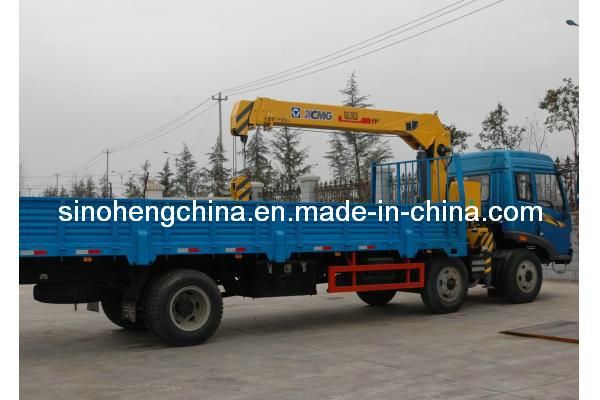

Dongfeng 6x2 truck with lift crane 10 tons Feature:
The truck mounted crane is named also truck with loading crane. It consists of chassis, packing case (tank), power take-off, and crane.
It is widely used in city construction, coal mining engineering, gardens Greening for lifting and transporting the basic construction materials and so on.
The mounted crane can select to equip with DONGFENG, JIEFANG, FOTON, SINOTRUK, QINGLING, JIANGLING, HUALING HONGYAN and other chassis. 1t, 2t, 3.2t, 4t, 5t, 6.3t, 8t, 10t, 12t, 14t, 16t crane can be equipped according to different machine model. The telescopic straight boom crane and folding type crane are also for your options.
The specification of Dongfeng 6x2 truck with lift crane 10 tons
Type | 6*2 Truck With Crane |
Chassis Brand | Dongfeng (DFAC) |
Emission Standard | Euro 3 |
Cab | Half row,with sleeper,Optional A/C |
Overall dimensions(mm) | 13600*2500*3850 |
| Van dimensions(mm) | 8000*2294*550 |
| G.V.W (kg) | 24900 |
| Curb weight(vehicle) (kg) | 10705 |
| Loading capacity (kg) | 15000-25000 |
Engine model | EQB210 33 Cummins engine |
| Maximum power | 155kw (210 hp) |
| Displacement (lit) | 5900 |
| Chassis model | EQ5253 |
| Front axle / rear axle | 5T / 10T |
| Type of fuel | Diesel |
Gear box | 8 -speed with over speed |
Brake system | Air braking |
| Operation control system | Power Steering |
Electric system | 24V |
Tyres & Quantity | 10.00-20 & 8+1 |
| Crane model | SQ10SK3Q |
Max Lifting Capacity (kg) | 10000 |
Maximum lift height (m) | 14 |
Maximum working radius (m) | 12 |
Rotation Angle | All Rotation |
