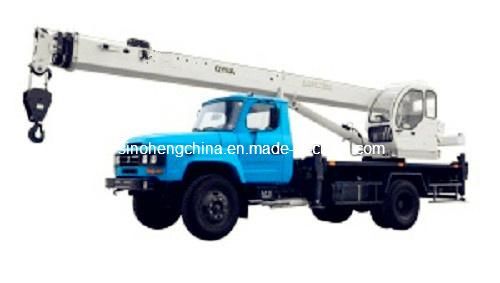

• Model NO.：QY10
• Type：Truck Crane
• Max. Lifting Capacity：10000kg,3m
• Vehicle Total Weight：10450kg
• Outrigger Span (Vertical and Horizontal)：4250X5000mm
• Chassis：Dongfeng Chassis
• Drive Type：4X2
• Max. Power：105kw,2500min-1(Rpm)
• Max. Torque：500n.M,1600min-1(Rpm)
• Transport Package：Nude Packaging
• Specification：ISO9001: 2000
• Trademark：XCMG
• Origin：China
• Production Capacity：1000 Sets , Month

ModelQY10Max. lifting capacity10000kg/3mMax. travel speed90km/hGradeability ( tan θ)35%Vehicle total weight10450kgFront and rear axle4360kg / 6090kgMin. turning radius10.5mMain BoomWith 4 Telescopic main boomsFully extended boom7.8-24.6mExtended boom speed45sFrom the arm speed35sWinchHydraulic motor driven planetary gear mechanismSingle-strand rope speed90m/minRope diameter x length10mm x 120mSwing Speed0-2.5rpm/minTail swing radius2175mm

Hydraulic SystemAdopt quantitative pump quantitative motor open hydraulic systemSystem pressure 18MpaThe car operated is a manual lever control multi-valveHydraulic Tank Capacity: 148L

Safety devicesLoad meter (Weighing device )ReliefAmplitude IndicatorBalance valvesBi-directional hydraulic lockOutriggerhydraulically operated manually H-type outriggersOutrigger span (Vertical and horizontal)4250x5000mm
ChassisTypeDongfeng chassisModelEQ5101JQZKJDrive type4x2
EngineModelYC4E140-33Max. Power105kw/2500min-1(rpm)Max. torque500N.m/1600min-1(rpm)Tyre9.00-20Available PiecesDual Power , Dual winch
