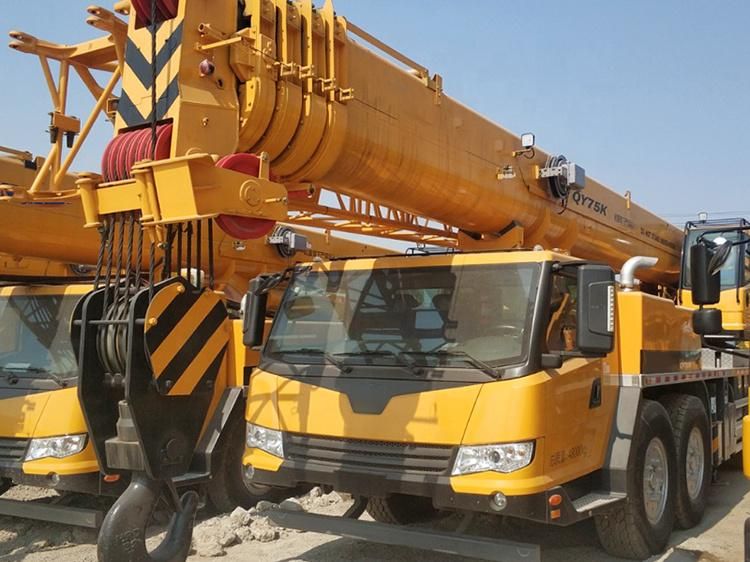

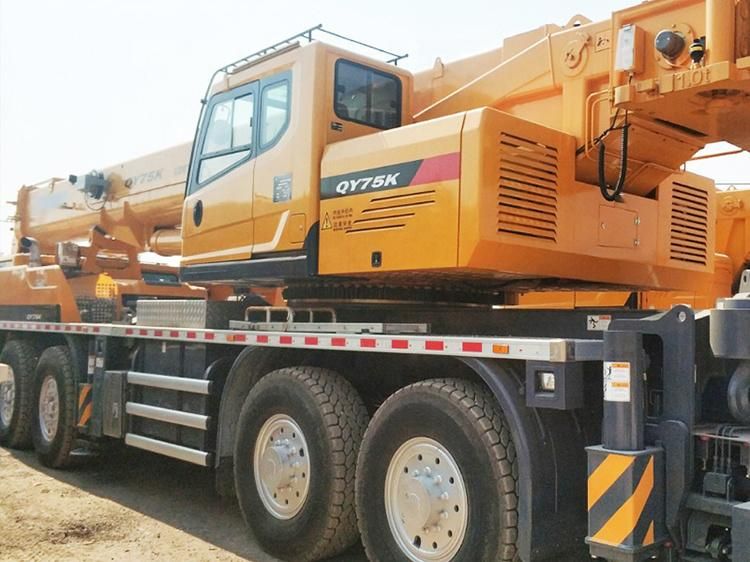

• Model NO.：QY75K
• Shaft Number：2
• Crane Jib：Four-Arm
• Type：Folding
• Weight：38350
• Transport Package：1*40fr+6*40hq
• Specification：9300*2400*3210mm
• Trademark：SINOMADA
• Origin：China
• Production Capacity：50000PCS,Year

Parameter Item

Scale

Unit

Dimensions

Overall length

12100

mm

Overall width

2980

mm

Overall height

3530

mm

Weight

Dead weight in travel state

38350

kg

1st axle

17750

kg

2nd axle

20750

kg

Power

engine model

QSB6.7

engine rated output

149/2100

KW/(r/min)

engine rated torque

740/1500

N.m/(r/min)

Travel

Max.travel speed

≥35

km/h

Min.turning diameter

≤5.5

m

Min.ground clearance

460

mm

Approch angle

25.8

°

Departure angle

21.8

°

Max.gradeability

≥55

%

Lifting Performance

Max.total rated lifting load

50

t

Min.rated working radius

3

m

Turning radius at swing table tail

4090

mm

Base boom amx.load moment

1690

kn.m

Base boom

10.3

m

Full-extended boom

38.2

m

Full-extended boom+Jib

55

m

Outrigger longitudinal distance span

7

m

Outrigger lateral distance span

7.0/5.8

m
