• Model NO.：LH
• Warranty：12 Months
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Best Quality：Reliability & Durability 25 Years of Use
• Types of Electric Hoist：CD, Md
• Crane Traveling Speed：20,30 M,Min
• Lifting Speed(M/Min：8;0.8,8;7,0.7
• Type：Bridge Crane
• Application：Workshop Usage, Construction Usage
• Sling Type：Wire Rope
• Power Source：Electric
• Trademark：SHENGQI
• Production Capacity：2000PC,Year

Basic Info.

Model NO. LH Warranty 12 Months After-Sales Service Provided Engineers Available to Service Machinery Overseas Best Quality Reliability & Durability 25 Years of Use Types of Electric Hoist CD, Md Crane Traveling Speed 20/30 M/Min Lifting Speed(M/Min 8;0.8/8;7/0.7 Type Bridge Crane Application Workshop Usage, Construction Usage Sling Type Wire Rope Power Source Electric Trademark SHENGQI Production Capacity 2000PC/Year

Product Description

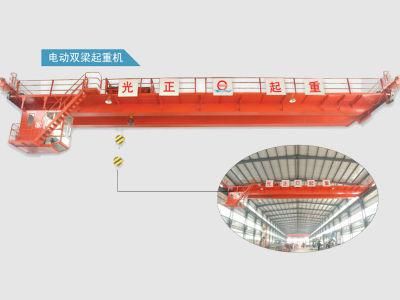

LH double girder bridge hoist crane  ( 3t-50t)



1. Introduction



The LH type double girder overhead crane is the most popular crane for all types of workshop. The trolley of this crane type is much smaller than other double girder overhead cranes, so it can be used when the distance from rail to roof is limited.



Features: tight dimension, low construction headroom, light dead weight.

This crane could be used in mechanical processing workshop, metallurgical factory and subsidiary workshop, warehouse, material yard and power plant for transferring, assembly, inspection maintenance, and loading procedures.



2. Characteristics



 A5 duty crane with a capacity of 3t-50 tons, span 5-65m, ambient temperature between -25C to +40C.

This crane model recommended by the WTO and match technical standard JB/T3695-94.

LH crane has two operational methods, ground, or operational room, which can be open or closed model and can be installed on the left or the right side, according to the practical situation.



3. Technical strong point



l Trinity-drive system

l Electrical non-contact speed regulation control module

l Single/double speed make traveling steady

l Overloading alarming device

l Obliquely hanging

l Second protection equipment preventing hook clashing the top

l Protection the current lacking of any phrase



4. Control features



Pendant or cabin control. (Open or closed type)



5. Warranty



l 14 months warranty when products leave the factory, or 12 months warranty after installation and commissioning in addition to the human damage factors.

l 2 years spare-parts provided for better maintenances.

l Professional technical staffs provide installation, commissioning and training services.

l Delivery with English user manual, parts manual, product certification and other relevant certificates.

l Technical advisory for any time.

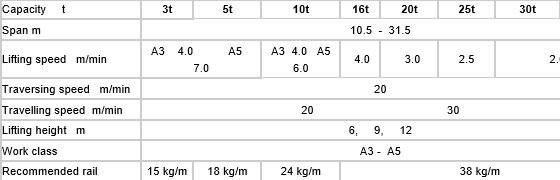

6. Technical parameter

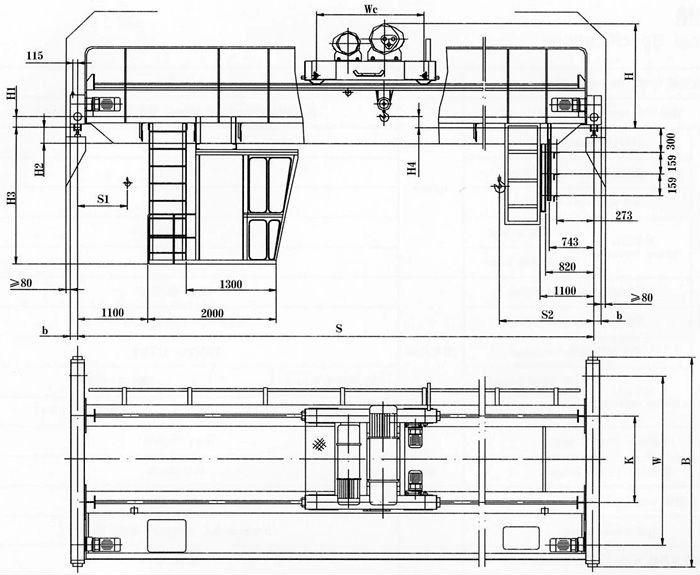

7. Sketch



drawing
