Single Girder Overhead Travelling Crane (LDA)

Lyfoo Industry Co., Ltd.
  • Certification：CE, ISO9001: 2000
  • Condition：New
  • Main Girder Form：Single Girder
  • Type：Single Girder Crane
  • Capacity：From 1ton to 20 Ton
  • Lifting Height：6m 8m 9m 12m 18m 24m 30m

Base Info

  • Model NO.：LDA
  • Power：380V,50Hz,3pH
  • Control：Handle Pendent, Romote Control or Cabinet
  • Span：7.5m to 22.5m
  • Max Wheel Pressure：101.5-152.0kn
  • Min Wheel Pressure：8.5-22.6kn
  • Working Speed：20,30 M,Min
  • Speed Ratio：58.78,39.38
  • Power Source：Electric
  • Sling Type：Wire Rope
  • Application：Construction Usage, Workshop Usage, Container Usage, Mineral Area Usage
  • Transport Package：Wooden Case, Bag
  • Specification：ISO
  • Trademark：SHENGQI
  • Origin：China
  • Production Capacity：20000PCS,Year

Description

Basic Info.

Model NO. LDA Power 380V/50Hz/3pH Control Handle Pendent, Romote Control or Cabinet Span 7.5m to 22.5m Max Wheel Pressure 101.5-152.0kn Min Wheel Pressure 8.5-22.6kn Working Speed 20/30 M/Min Speed Ratio 58.78/39.38 Power Source Electric Sling Type Wire Rope Application Construction Usage, Workshop Usage, Container Usage, Mineral Area Usage Transport Package Wooden Case, Bag Specification ISO Trademark SHENGQI Origin China Production Capacity 20000PCS/Year

Product Description

Single Girder Overhead Travelling Crane

1. Description:
The single beam overhead crane is with features of reasonable structure, strong rigidity of whole set. It is a kind of light type crane quipment with traveling rail, and usually fitted with CD1 or MD1 model electric hoist.

The single beam/single girder overhead crane is widely used in various places such as factory, warehouse, stuff yard to lift goods, and forbidden to use in flammable, explosive and corrosive environment.

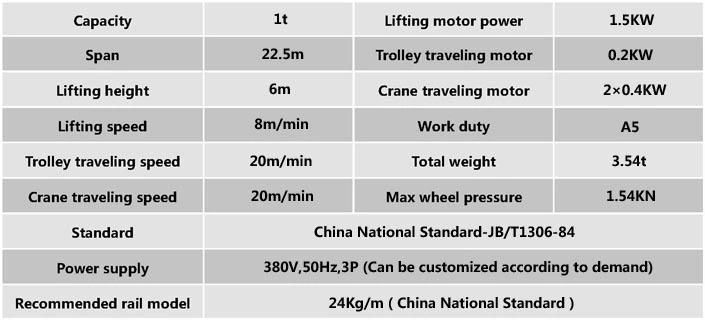

2. Specification
Single Girder Overhead Travelling Crane (LDA)

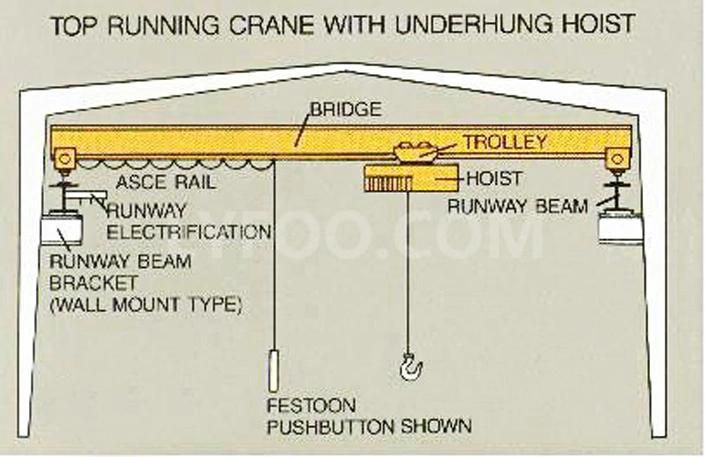

3. Drawing Reference
Single Girder Overhead Travelling Crane (LDA)

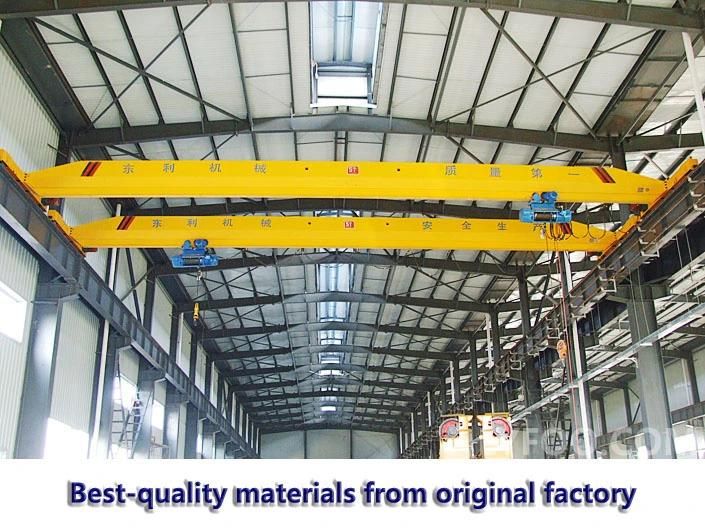

4. Photos
Single Girder Overhead Travelling Crane (LDA)

Manufacturer with 30 years histroy we are.

Contact us for an inquiry! Please send data:
1. Capacity
2. Span
3. Lifting height
4. Traveling distance
