• Model NO.：D5200-240
• Type：Top-Slewing Crane
• Warranty：1 Year
• After Warranty Service：Online Support
• Core Components：PLC, Motor, Gear
• Unique Selling Point：Energy Efficient and Low Operating
• Applicable Industries：Construction Works
• Dimension(L*W*H)：Customized
• Max Lifting Moment：5200TM
• Trademark：ZOOMLION
• Origin：China

Basic Info.

Model NO. D5200-240 Type Top-Slewing Crane Warranty 1 Year After Warranty Service Online Support Core Components PLC, Motor, Gear Unique Selling Point Energy Efficient and Low Operating Applicable Industries Construction Works Dimension(L*W*H) Customized Max Lifting Moment 5200TM Trademark ZOOMLION Origin China

Product Description

ZOOMLION Construction Equipment Hammer-Head Tower Crane D5200-240

Feature
Electrical control system
With PLC control, the electrical control system enjoys better reliability and safety. Produced by professional
manufacturers with advanced foreign technology, the electrical elements feature service lives that are 3 or 4
times longer than that of domestic products, less faults, easy maintenance and repair as well as reliable operation.
Technical features
1. The crane boasts of multiple operation modes and wide application.
2. The complete machine adopts internationally well-received beautiful shape.
3. The crane features high working speed and excellent speed regulation performance. Stepless speed
regulation  by frequency control, the world's most advanced solution, is adopted for the trolleying mechanism
and slewing mechanism, thus ensuring more stable and reliable operation.
4. The cab is independently installed externally with good vision and large inner space, thus offering a good
working environment for operators.
5. A variety of safety devices are equipped, which are all mechanical or mechatronic products that are
applicable to  severe working conditions, so as to ensure the tower crane's reliable operation.
Parameters

Max. lifting capacity (t)	240 t
Max. lifting moment (t.m)	5200
Max. jib length (m)	50
Max. hoisting capacity at jib tip (t)	89.4
Max. free-standing height (m)	90.2
Max. working height of anchored crane (m)	208.1
Hoisting mechanism Power (kW)	2×186
Slewing mechanism Power(kW)	4×18.5
Trolleying mechanism Power(kW)	18.5

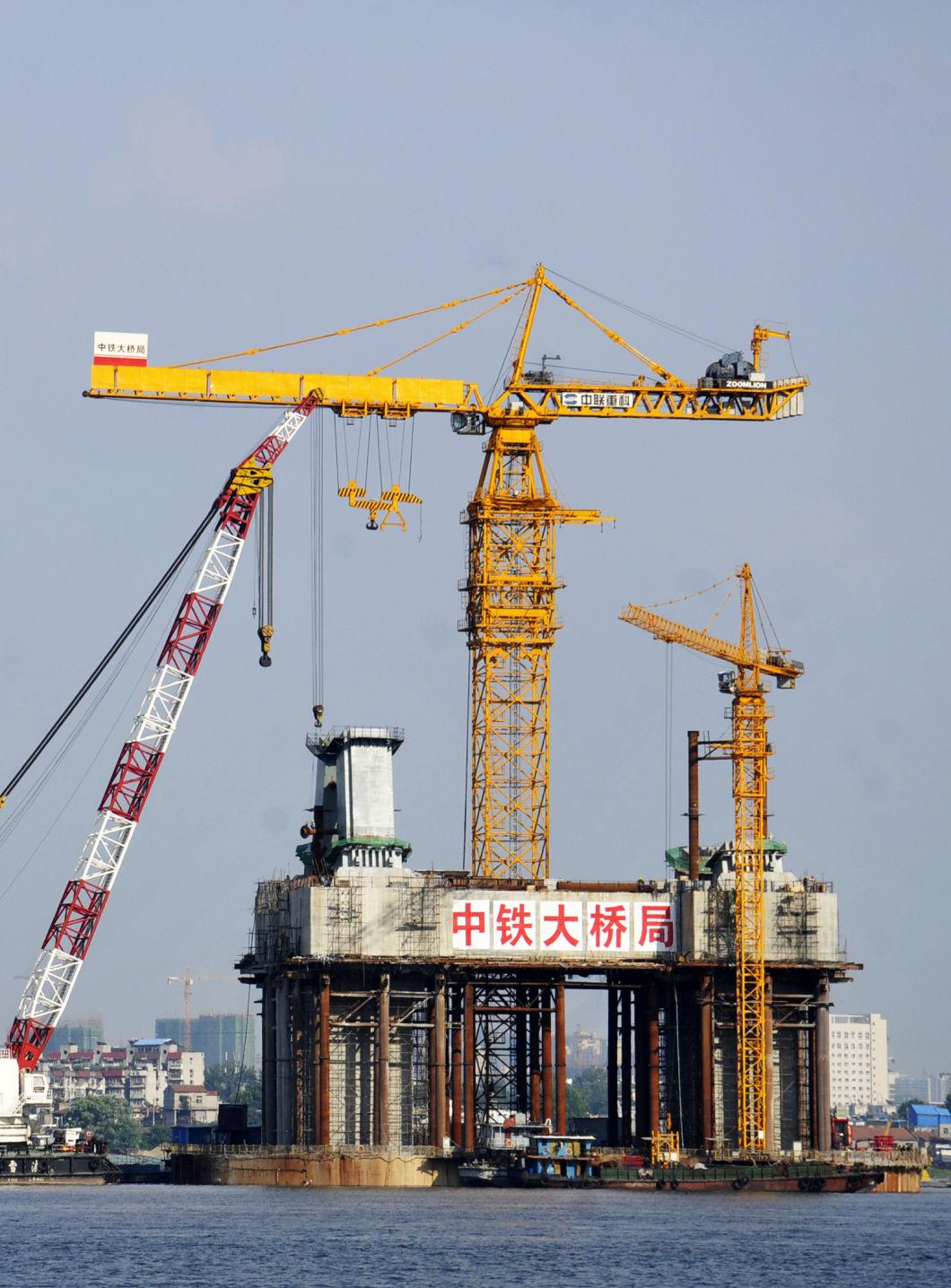

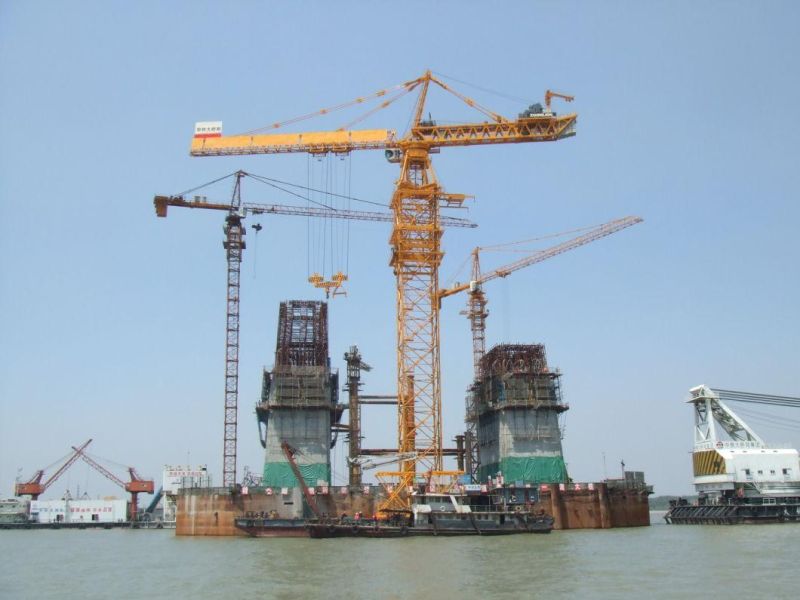

Product Show

Our Company

Founded in 1992, ZOOMLION Heavy Industry Science & Technology Co., Ltd. is mainly engaged in

developing and anufacturing major high-tech equipment in the areas of engineering industry and agri-

cultural industry.

With more than 20 years of innovation and development, the company is now a global enterprise posse-

ssing 10 major categories and 55 product lines, as well as nearly 460 leading products. ZOOMLION

China's first construction machinery company to be listed on both Shenzhen and Hong Kong stock ex-

changes, with registered  capital amounting to RMB 7.664 billion. At present, the company is actively

promoting strategic transformation, aiming to build a high-end equipment.

In 1956, the predecessor of Zoomlion, Changsha Construction Machinery Research Institute, developed
the  first tower crane in China with independent intellectual property rights-QTZ160. With more than 60

years of  technology inheritance and innovation, Zoomlion has now developed into a world-leading tower
crane manufacturer and also the secretariat unit of the International Organization for Standardization/Crane

Technical  Committee (ISO/TC96).

The products of Zoomlion Construction Hoisting Machinery Company cover four series: hammer-head
tower  cranes, flat-top tower cranes, luffing tower cranes and construction hoists. Many star products have
been born  as well, such as the world's largest tonnage top-slewing jack-up Tower crane D5200, the world's

longest-boom   tower crane D1250, which set a world record for Guinness, the world's largest, tonnage

flat-top tower crane  T2850, and the world's largest tonnage internal climbing boom tower crane LH3350,

which rolled off the assembly line in 2019.

About Us

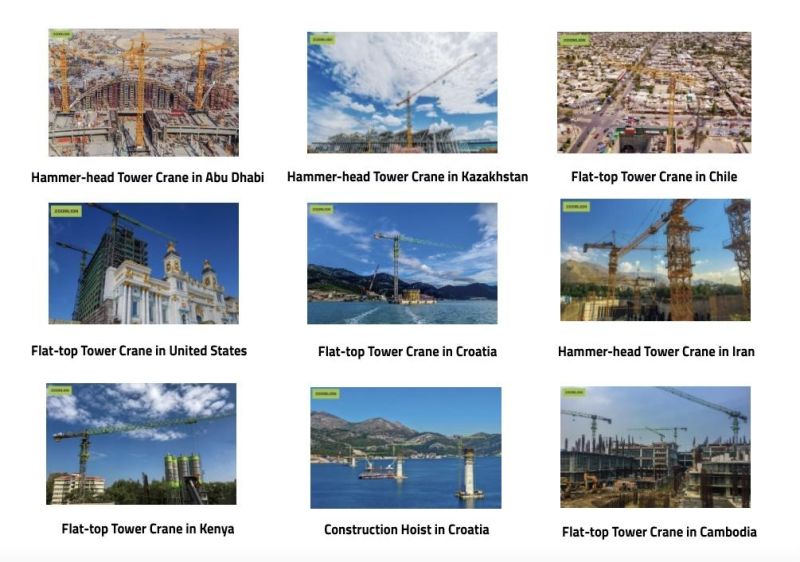

Construction Cases
