• Model NO.：WA6015-8A
• Type：Top-Slewing Crane
• Hoisting Speed：20-100m,Min
• Max Lifting Height：40-215m
• Warranty：1 Year
• Core Components：PLC, Motor, Gear
• Unique Selling Point：Energy Efficient and Low Operating
• Applicable Industries：Construction Works
• Dimension(L*W*H)：Customized
• Max Lifting Moment：1528TM
• Trademark：ZOOMLION
• Origin：China

Basic Info.

Model NO. WA6015-8A Type Top-Slewing Crane Hoisting Speed 20-100m/Min Max Lifting Height 40-215m Warranty 1 Year Core Components PLC, Motor, Gear Unique Selling Point Energy Efficient and Low Operating Applicable Industries Construction Works Dimension(L*W*H) Customized Max Lifting Moment 1528TM Trademark ZOOMLION Origin China

Product Description

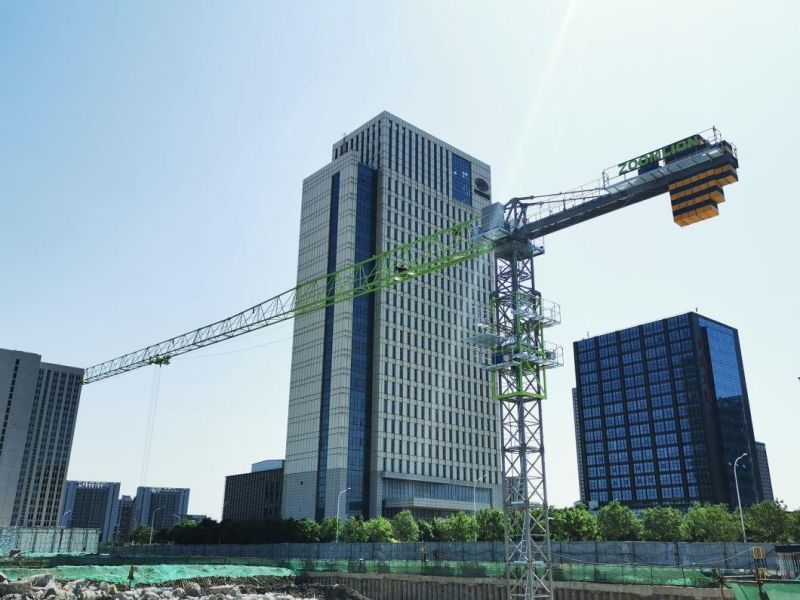

ZOOMLION WA6015-8A Flat-Top Tower Crane with ISO Certification

Feature
Safety
1. Multiple protections against overloading: triple protection of lifting weight, double protection of torque.

2. Triple protection of lifting height and over-top protection; Anti-collision by double protection of trolleying limit.

3. The control system will detect the failure of the lifting brake intelligently, which prevents heavy objects from slipping.

4. Control of climbing trim status, control of climbing motor, prevention of climbing operation accidents.

5. The tower section equipped with an inclined ladder and a large platform for safer climbing and operation process.

Paint
1.Valspar water-based paint utilized for main structural parts, ONEwashing and THEREbacking processes.

2. Platforms, ladders, and handrails Fully immersed in zinc against corrosion during the life cyrcle.

3. One-step die forming applied for cabin production, automotive-class spot welding technology, electrophoresis technology adopted for processing, 72hrs spray testing for waterproofness.

Operation
1. Brand-new variable frequency slewing system, instant response to start, no jitter in the whole process, no swing back when stopping.
2. Millimeter-level ant, the highest accuracy 5mm/s in the industry.
3. Instantaneous response of lifting jog operation, high efficiency and high reliability.
Humanization
1. Integrated assembly and delivery, few packaging units, professional packaging plan, 17.5m two-lorry transportation.
2. Fast erection: reduced erection and debugging work for accomplishing in an average of 4 hours.

3. 18 new core fault diagnosis and identification intergrated, Further maintenance efficiency promoting by realization of text description for fault alar

4. High effective and reliable Auxiliary Pre-Calibrationfor electronic lifting weight limiter before delivery to client.
Parameters

Model	WA6015-8A
Max lifting weight (t)	8
Max lifting moment (t.m)	152
Max working range (m)	60
Max hoisting capacity at jib tip (t)	1.5
Free-standing height (m)	40.5
Max lifting speed (m/min)	100
Slewing speed (r/min)	0~0.6
Trolleying speed (r/min)	0~55

Product Show

Our Company

Founded in 1992, ZOOMLION Heavy Industry Science & Technology Co., Ltd. is mainly engaged in

developing and anufacturing major high-tech equipment in the areas of engineering industry and agri-

cultural industry.

With more than 20 years of innovation and development, the company is now a global enterprise posse-

ssing 10 major categories and 55 product lines, as well as nearly 460 leading products. ZOOMLION

China's first construction machinery company to be listed on both Shenzhen and Hong Kong stock ex-

changes, with registered  capital amounting to RMB 7.664 billion. At present, the company is actively

promoting strategic transformation, aiming to build a high-end equipment.

In 1956, the predecessor of Zoomlion, Changsha Construction Machinery Research Institute, developed
the  first tower crane in China with independent intellectual property rights-QTZ160. With more than 60

years of  technology inheritance and innovation, Zoomlion has now developed into a world-leading tower
crane manufacturer and also the secretariat unit of the International Organization for Standardization/Crane

Technical  Committee (ISO/TC96).

The products of Zoomlion Construction Hoisting Machinery Company cover four series: hammer-head
tower  cranes, flat-top tower cranes, luffing tower cranes and construction hoists. Many star products have
been born  as well, such as the world's largest tonnage top-slewing jack-up Tower crane D5200, the world's

longest-boom   tower crane D1250, which set a world record for Guinness, the world's largest, tonnage

flat-top tower crane  T2850, and the world's largest tonnage internal climbing boom tower crane LH3350,

which rolled off the assembly line in 2019.

About Us

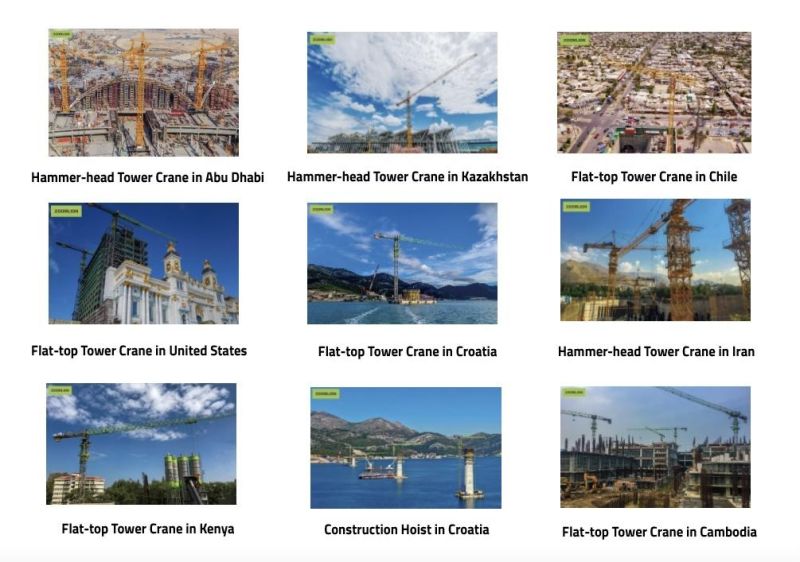

Construction Cases
