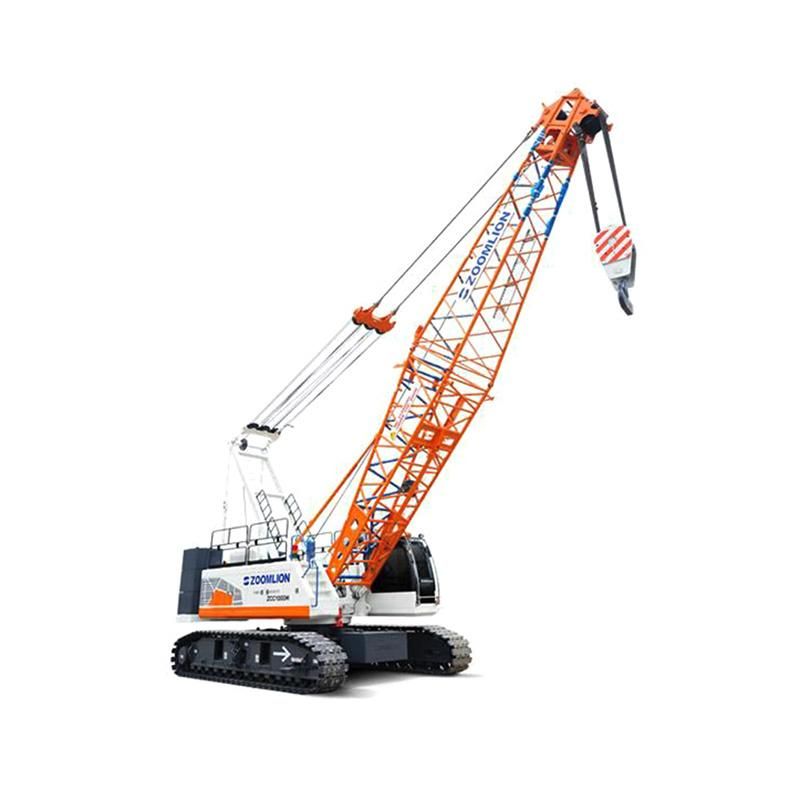

Zoomlion 180ton Quy180 Crawler Crane with Good Performance

Sinomada Heavy Industry (Changsha) Co., Ltd.
  • Max. Lifting Height：40 M
  • Rated Loading Capacity：180 Ton
  • Certification：ISO9001, CE, RoHS, BV
  • Condition：New
  • Warranty：1 Year
  • Loading Method：1*40fr Container + 2*40hq Container

Base Info

  • Model NO.：Quy180
  • Maximum Lifting Weight of Jib：25 Ton
  • Length of Tower Boom：24-51m
  • Fixed Jib Length：13-31m
  • Engine Power：227kw
  • Max.Rated Lifting Capacity：180 Tons
  • Transport Package：Nude Package
  • Specification：Big Size
  • Trademark：Zoomlion
  • Origin：China
  • HS Code：84295212
  • Production Capacity：500unit,Month

Description

Ser. No.ItemUnitValueRemark1Maximum lifting weight ×radiust×m180×5 2Maximum lifting momentT·m1062.4132.8 (lifting weight) ×8 (range)3Basic boom dead weightt167 4Length of main boomm20~83 5Maximum lifting weight of tower boomt38 6Length of tower boomm24~51 7Maximum lifting weight of jibt25t 8Length of fixed Jibm13~31 m 9Speed of rope on the drum of main winchm/min110Drum outermost layer10Speed of rope on the drum of auxiliary winchm/min110Drum outermost layer11Speed of rope on the drum of derricking winchm/min30Drum outermost layer12Swing speedr/min0~1.4 13Travelling speedkm/h0~1.2 14Gradeability%30% 15Pressure to the groundMPa0.1 16Outline dimension length ×width ×height m10.6×7.1×3.65Mast-free main boom17Engine rated power / speedKw/rpm227/2000 18Engine maximum output torque / speed N·m/rpm1505/1400 19Engine emission standard U. S. EPA Tier  20Crawler gauge ×crawler length × crawler widthmm6000×7750×1100  Zoomlion 180ton Quy180 Crawler Crane with Good Performance
