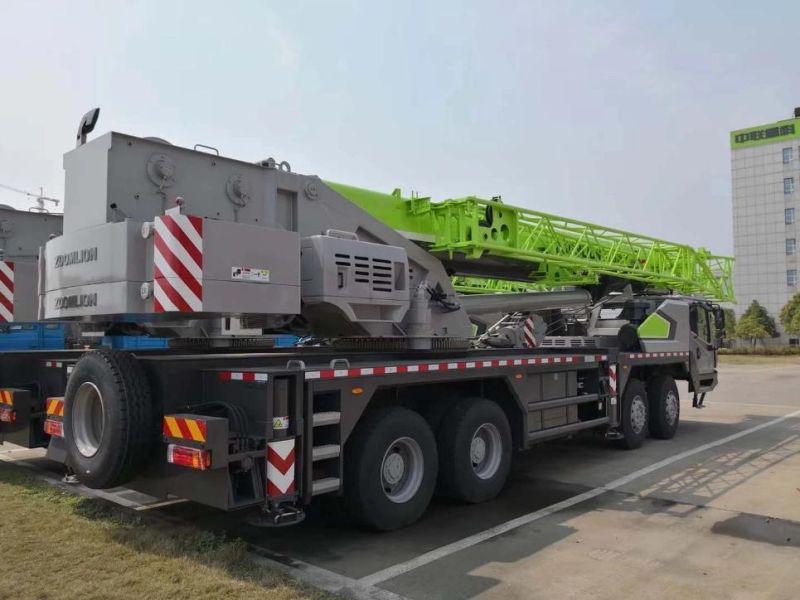

• Model NO.：Qy80V
• Type：Straight Arm
• Lifting Height of Jib：48.5m
• Main Boom Height：44.2m
• Operating Weight：45000kg
• Moving Type：Wheel
• Transport Package：Roro,Container
• Specification：14100X2750X3750mm
• Trademark：Zoomlion
• Origin：China
• HS Code：87051091
• Production Capacity：500unit,Month

ItemUnitValueRemarksWorking performanceMax. rated lifting capacitykg80000 Max. load moment of basic boomkN.m2575 Max. load moment of main boom(fully extended)kN.m1240 Max. load moment of basic boomm12.2 Max. lifting height of main boomm44.2These parameters do not include deflection of main boom and jibMax. lifting height of jibm60.2 Working speeds             Max. hoist rope speed(Main winch)m/min≥135Drum 4th layerMax. hoist rope speed(Auxiliary winch)m/min≥110Drum 2th layerBoom demrricking up times57 Boom demrricking up times107 Slewing  speedr/min1.8 DrivingMax. driving  speedkm/h75 Max. gradeability%37 Turning diameterm24 Min.  ground clearancemm280 Oil consumption per hundred kilometersL46 MassDeadweight in driving conditionkg45000 Complete vehicle kerb masskg44870 Front axle loadkg19000 Rear axle loadkg26000 DimensionOverall dimensions(L×W×H)mm14100×2750×3750 Longitudinal distance between outriggersm6.00 Transversal distance between outriggersmFor completely extended outriggers: 7.60 m;
   For intermediately extended outriggers: 5.04 m Tail slewing radiusmm4020 Main boom lengthm11.6 - 44.0 Main boom angle°-2 - 80 jib lengthm9.5,16.0 Offset°0,30
