• Model NO.：SLS5314GYYZ3
• Type：Straight Arm
• Transport Package：Nude Packing
• Specification：CCC, ISO9000
• Trademark：GLS
• Origin：Suizhou, Hubei, China
• Production Capacity：150 Units,Monnth

Basic Info.

Model NO. SLS5314GYYZ3 Type Straight Arm Transport Package Nude Packing Specification CCC, ISO9000 Trademark GLS Origin Suizhou, Hubei, China Production Capacity 150 Units/Monnth

Product Description

Crane Manufacturer Provide Cargo Truck Mounted Crane 5/6 Ton Hiab Truck


Brief introduction about Truck with Crane:

Chassis , crane ,cargo box ,leg assembled to truck with crane. Each parts could be customized.

1.   Chassis brand and dive type could be chosen

a.   Brand-Dongfeng,Sinotruk,FOTON ,Shacman,JAC etc

b.  Drive type-4x2,4x2,6x4,6x6,8x4 etc

2.   Crane type and loading weight

a.   Type-telescopic boom or knuckled boom

b.  Loading weight:from 2Ton to 30Ton

(The lifting capacity of telescopic boom: 2T with 2 arms; 2T with 3 arms, 3.2T with 2 arms, 3.2T with 3 arms, 4T with 3 arms, 4T with 4 arms, 5T with 3arms, 5T with 4 arms, 6.3T with 3arms, 6.3T with 4 arms, 8T with 4 arms, 10T with 4 arms, 12T with 4 arms, 14T with 5 arms, 16 T with 5arms;

The lifting capacity of knuckled boom: 2 T with 2arms, 3.2T with 2 arms, 3.2T with 3 arms, 4T with 3 arms, 5T with 3arms, 5T with 4 arms, 6.3T with 3arms, 6.3T with 4 arms, 8T with 4 arms, 10T with 4 arms, 12T with 4 arms, 14T with 5arms, 16T with 5 arms.)

3.   Cargo box normally is made by Q235 carbon steel ,could loading goods which be lifted by crane

4.   Leg has mechanical type and hydraulic type which keeps balance for whole truck

Specification


Crane model	SQ6.32Q
Type	Knuckle boom, 3 section of boom
Max lifting capacity	6300kg
Max lifting moment	13.23 T.m
Recommend power	18kw
Max oil flow of hydraulic system	25L/min
Max pressure of hydraulic system	28MPa
Oil tank capacity	90L
Rotation angle	All rotation
Crane weight	2115kg
Installation space	1050mm
Outriggers	Two pcs
Operation	Can operation at both side of the truck

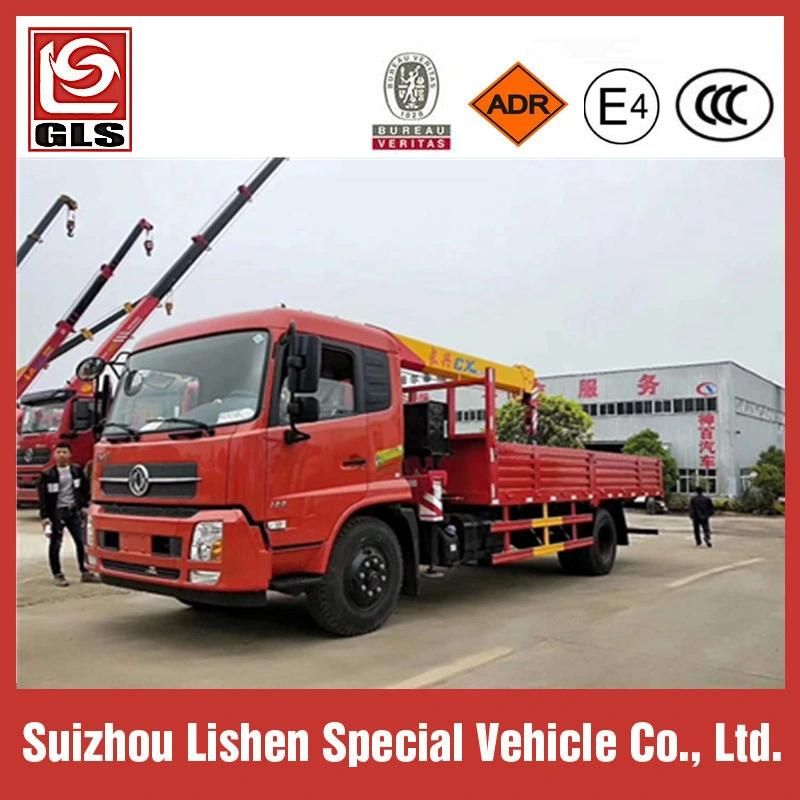

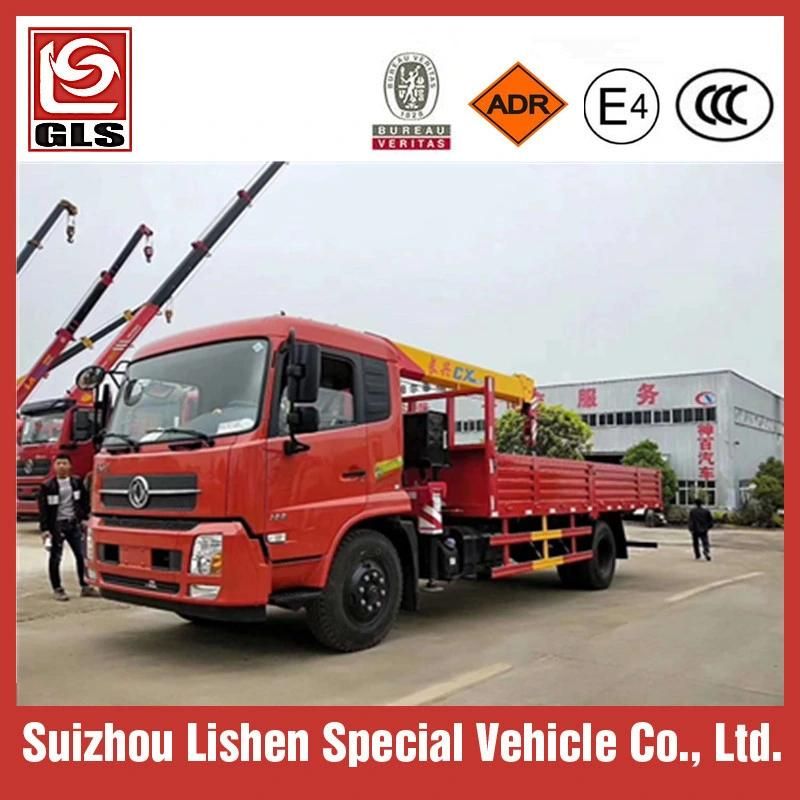

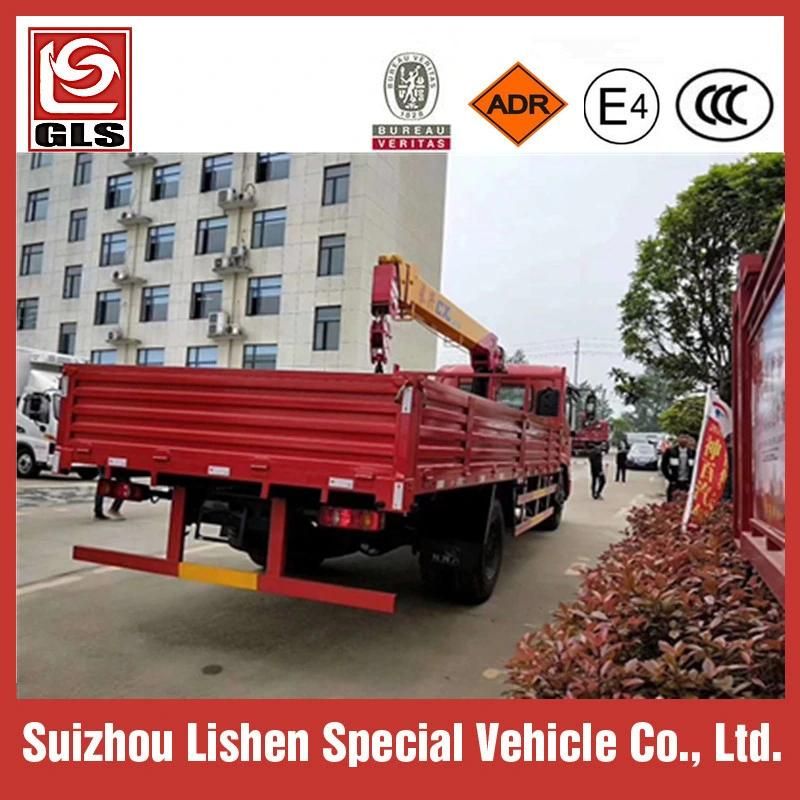

 Truck Photo Details










China Tanker Tuck Manufacturer.
MOQ: 1 unit
Payment Terms: T/T, L/C
Packing: nude cargo
Delivery Time: within 30 days after receipt of the 30% deposit.

Main products:
1. Oil Tank Truck
2. Refueling Truck
3. Water Tank Truck/ Water Sprinkler Truck
4. Sewage Suction Truck
5. Sanitation Truck
6. Fuel Tank Semi Trailer
7. Chemical Liquid Tank Truck
8. Cement Powder Tank truck/ Bulk cement truck
9. Flatbed TrailerContainer Semi Trailer
11. Self-loading Garbage Truck, Garbage Compactor Truck, Sealed Garbage Truck
