• Model NO.：SLS1060GYYZ3
• Type：Telescopic Crane Truck
• Transport Package：Nude Packing
• Specification：CCC, ISO9000
• Trademark：GLS
• Origin：Suizhou, Hubei, China
• Production Capacity：150 Units,Monnth

                                                               Technical parameter of chassisOverall dimension(L*W*H)5995*1980*29500mmThe size of the box(L*W*H)3500*1880*400mmTotal Mass(kg)6,495Loading capacity(kg)2,500Chassis ModelEQ1060Color OptionalEngineManufacturerYuchai Model YC4F90-30Horse power 90HPDisplacement2659mlEmissionEuro IIIWheel Base(mm)3300Driving type 4x2/4x4Type & Size of Tyre7.00-16Number of tyre6+1(spare tyre)Spring number8/9+5Front/rear suspension(mm)1032/1663Front/rear track(mm)1506/1468Approach/ departure angle (°)33/14(°)Technical parameter of crane(2T straight arm)Crane modelSQS68  Max. lifting weight(KG)3,200Max. working height (m)6.8Max oil plow of hydroulic systm(L/MIN)20Rated pressure of hydraulic system(mpa)20.0Oil tank capacity (L)25Installation space(mm)680Max. working radius (m)5.5Max lifting Moment(T.M)3.2Rotation angle360°, all rotation

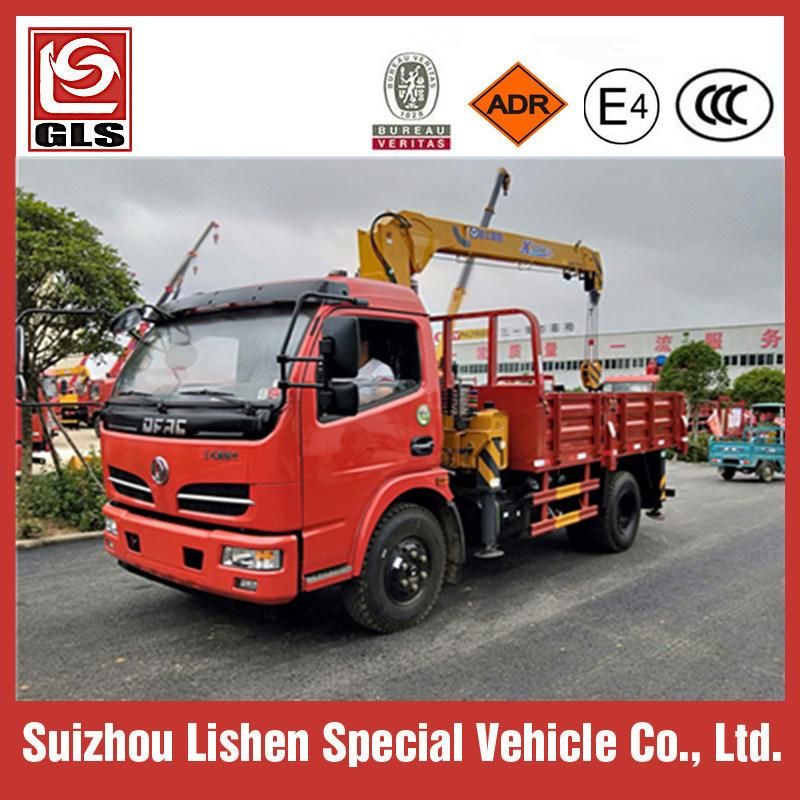

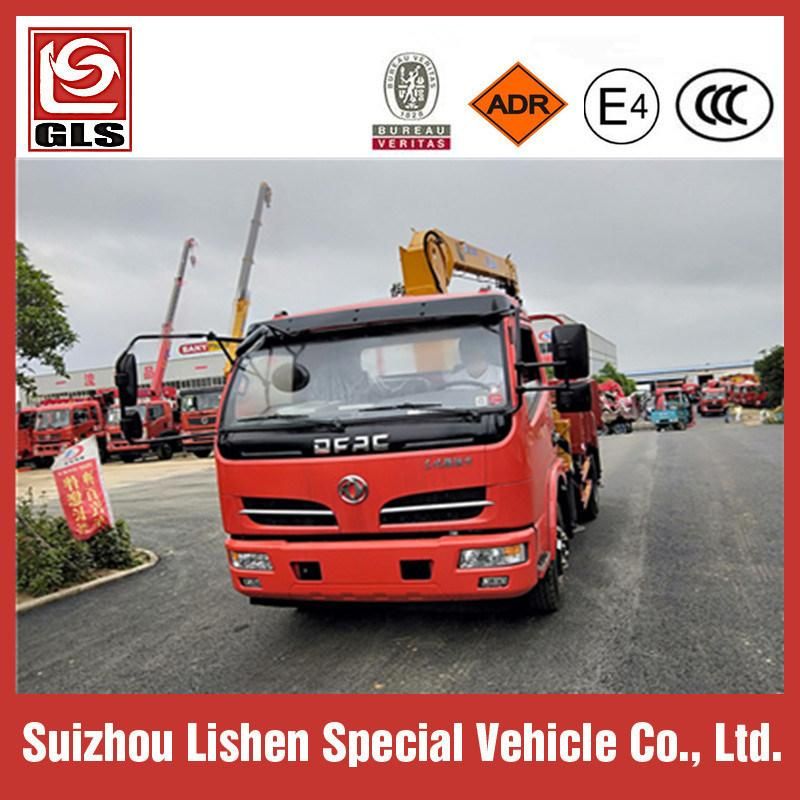

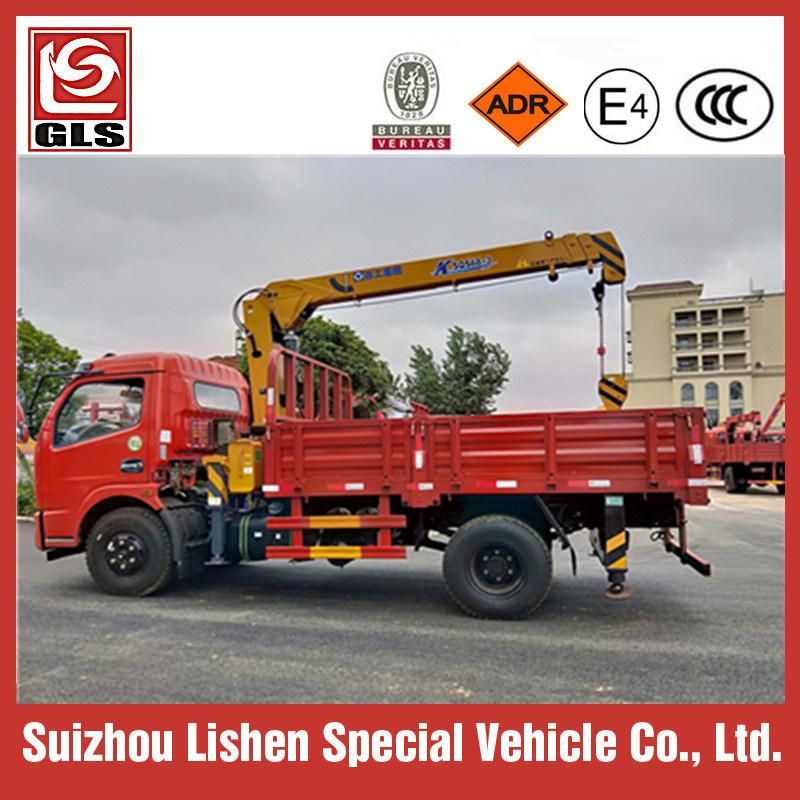

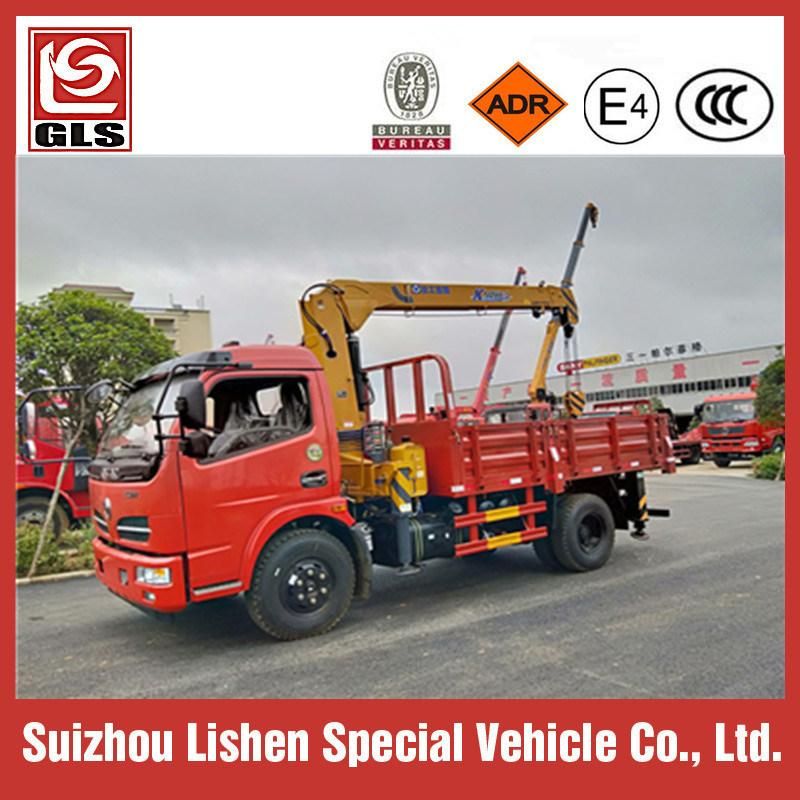

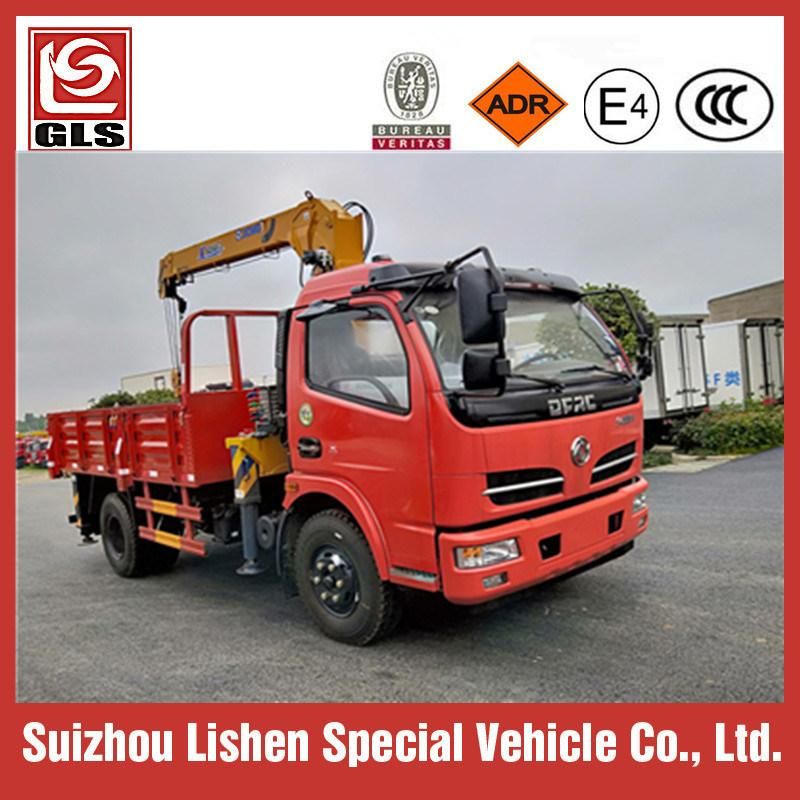

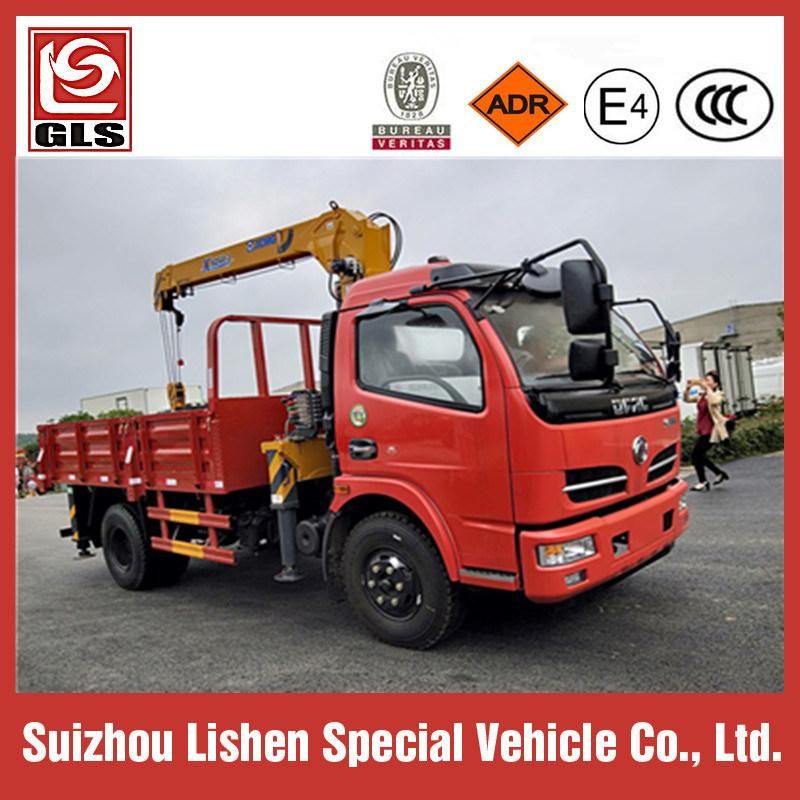

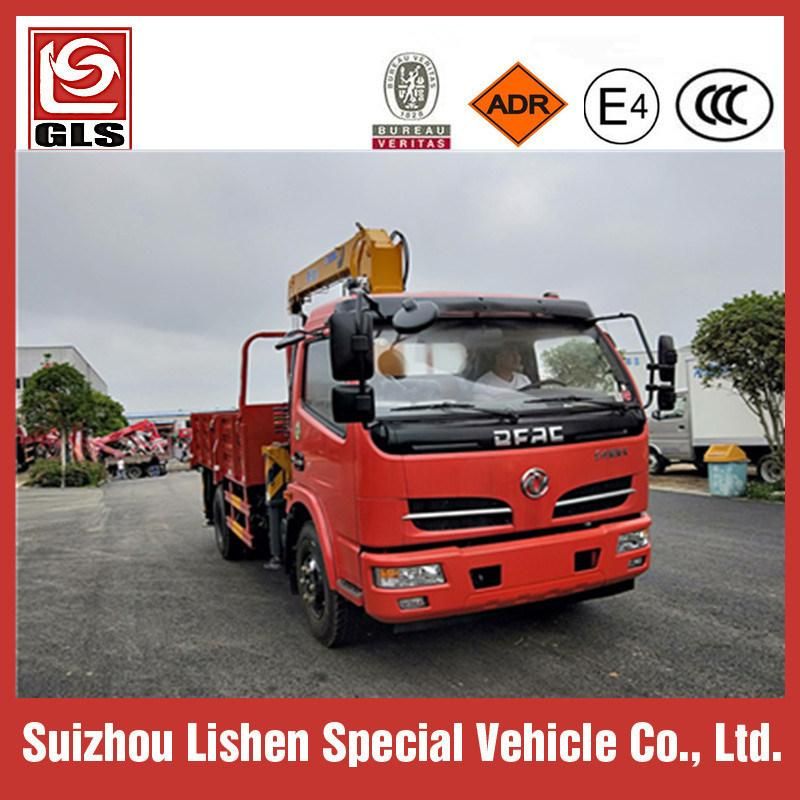

 Truck Photo Details











China Tanker Tuck Manufacturer.
MOQ: 1 unit
Payment Terms: T/T, L/C
Packing: nude cargo
Delivery Time: within 30 days after receipt of the 30% deposit.

Main products:
1. Oil Tank Truck
2. Refueling Truck
3. Water Tank Truck/ Water Sprinkler Truck
4. Sewage Suction Truck
5. Sanitation Truck
6. Fuel Tank Semi Trailer
7. Chemical Liquid Tank Truck
8. Cement Powder Tank truck/ Bulk cement truck
9. Flatbed TrailerContainer Semi Trailer
11. Self-loading Garbage Truck, Garbage Compactor Truck, Sealed Garbage Truck
