• Model NO.：SACC100
• Condition：New
• Warranty：1 Year
• Max. Lifting Cap.(T/M)：150
• Travelling Weight：62600 Kg
• Basic Boom：150 T
• Fixed Jib：24 T
• Boom Length：18-81 M
• Fixed Jib Length：13-31 M
• Max Load Moment：927.4 Kn.M
• Max. Swing Speed：1.5 R,Min
• Max. Travel Speed：1.3km,H
• Gradeability：30%
• Engine Power：235 Kw
• Overall Weight：154 T
• Wire Rope Diam：26
• Transport Package：Roro Ship
• Specification：154000kg
• Trademark：Super-above
• Origin：Jiangsu, China
• HS Code：8426491000
• Production Capacity：300set,Year

Basic Info.

Model NO. SACC100 Condition New Warranty 1 Year Max. Lifting Cap.(T/M) 150 Travelling Weight 62600 Kg Basic Boom 150 T Fixed Jib 24 T Boom Length 18-81 M Fixed Jib Length 13-31 M Max Load Moment 927.4 Kn.M Max. Swing Speed 1.5 R/Min Max. Travel Speed 1.3km/H Gradeability 30% Engine Power 235 Kw Overall Weight 154 T Wire Rope Diam 26 Transport Package Roro Ship Specification 154000kg Trademark Super-above Origin Jiangsu, China HS Code 8426491000 Production Capacity 300set/Year

Product Description

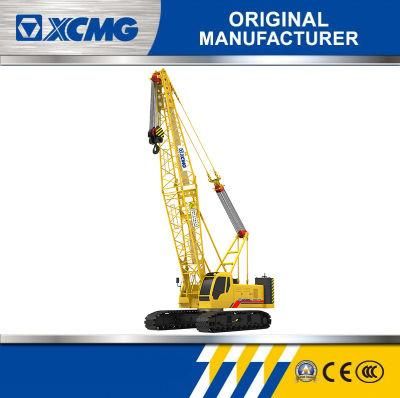

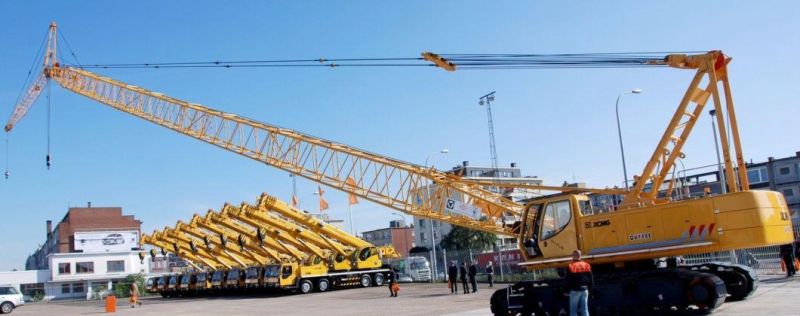

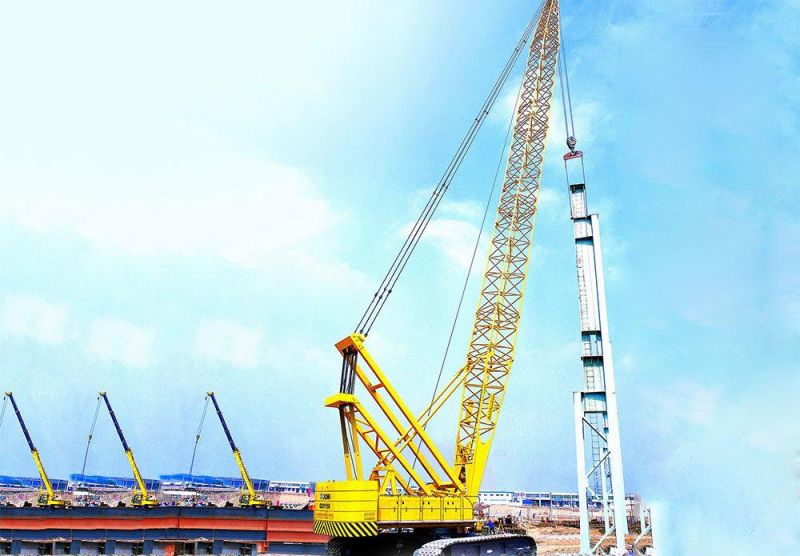

Chinese Top 150 tons Hydraulic Crawler Crane
The crawler crane is a kind of self-propelled crane used in high-rise building construction, which is composed of the
power device, working mechanism, boom, turntable, chassis and so on. It is a slewing crane with moving arms, has
a large grounding area, good passing ability, strong adaptability, and can walk with a load. It is suitable for hoisting
operations in a construction site. It can carry out various operations such as digging, tamping, piling and so on.



PARAMETERS

Items	Unit	Data
Basic boom	T	150
Fixed jib	T	24
Max. load moment	t/m	927.4
Boom length	M	18-81
Boom working condition	.	30-80
Fixed jib working condition	.	30-80
Fixed jib length	M	13-31
Winch mechanism max single line speed(no-load, at 5th layer)	m/min	110
Boom elevating mechanism max. single-line speed(no-load, at 1st layer)	m/min	2×32
Max rope single line pull	T	13.5
Wire rope diam	Mm	26
Max slewing speed	r/min	1.5
Max traveling speed	Km/h	1.3
Grade ability	%	30
Average ground pressure	Mpa	0.102
Engine power	Kw	235
Mass of the vehicle as a whole( including main hook block and 19m boom)	T	154
Max mass of single unit in travel configuration		37
Max dimension of a single unit in travel configuration(L×W×H)	t	11.0×3.0×3.3
