35ton Mobile Material Handlers with Five Peel Grab for Sale

Sinoway Industrial (Shanghai) Co., Ltd.

Certification：ISO9001, ISO14001
Condition：New
Operation Form：Cabin
Maximum Lifting Height：15-20m
Maximum Lifting Weight：<20t
Max. Working Radius：14 M

Base Info

Model NO.：swmh350
Max. Hoisting Moment：525kn.M
Max. Lifting Height：15 M
Engine Power：360HP
Warranty：1 Year
Transport Package：Nude
Specification：ISO
Trademark：Sinoway
Origin：China
HS Code：84314990
Production Capacity：100 PCS , Year

Description

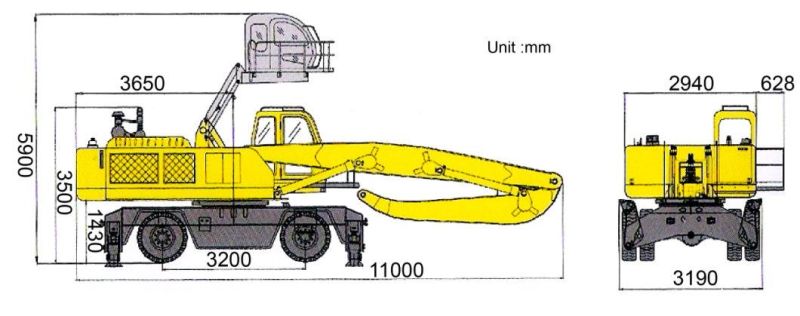

PowerElectrical motor110kwRated speed1480rpmMax. swing speed (electrical motor)5r/minDiesel engine154kwRated speed2200rpmMax. swing speed (diesel engine)8r/minFuel tank capacity440LMain Technical SpecificationMax. lifting capacity@Min. working radius13000kgMax. lifting capacity@Max. working radius2000kgMin. working radius4000mmMax. working radius14000mmMax. lifting moment52.5t.mMax. swing torque107KN.mBoom length8000mmArm length6000mmMain luffing time (Max. speed)Fall boom (electrical / diesel)≤17s/≤11sRise boom (electrical / diesel)≤21s/≤11sAuxiliary luffing time (Max. speed)Fall boom (electrical / diesel)≤20s/≤11sRise boom (electrical / diesel)≤9s/≤6sOutriggerFall stretching (electrical / diesel)≤16s/≤11sFall retracting (electrical / diesel)≤12s/≤10sOutrigger distanceLengthways4500mmTransversal4200mmTravelling SystemMax. travelling speed15km/hMin. turning radius7.6mMax. gradeability18%Min. ground clearance250mmMax. traction force109kNApproach angle15.0°Departure angle15.0°Braking distance (speed: 15km/h)≤6.5mOperating weight35000kg (including clam shell)DimensionA. Overall length11000mmB. Overall width3500mmC. Overall height3190mmD. Wheelbase3200mmE. Max. lifting height of cab5900mmF. Rear-end length/slewing radius3650mmG. Counterweight clearance1430mmH. Upper-structure width2940mm 35ton Mobile Material Handlers with Five Peel Grab for Sale

35ton Mobile Material Handlers with Five Peel Grab for Sale

35ton Mobile Material Handlers with Five Peel Grab for Sale

Why Choose Us

35ton Mobile Material Handlers with Five Peel Grab for Sale

35ton Mobile Material Handlers with Five Peel Grab for Sale

35ton Mobile Material Handlers with Five Peel Grab for Sale

35ton Mobile Material Handlers with Five Peel Grab for Sale

35ton Mobile Material Handlers with Five Peel Grab for Sale
