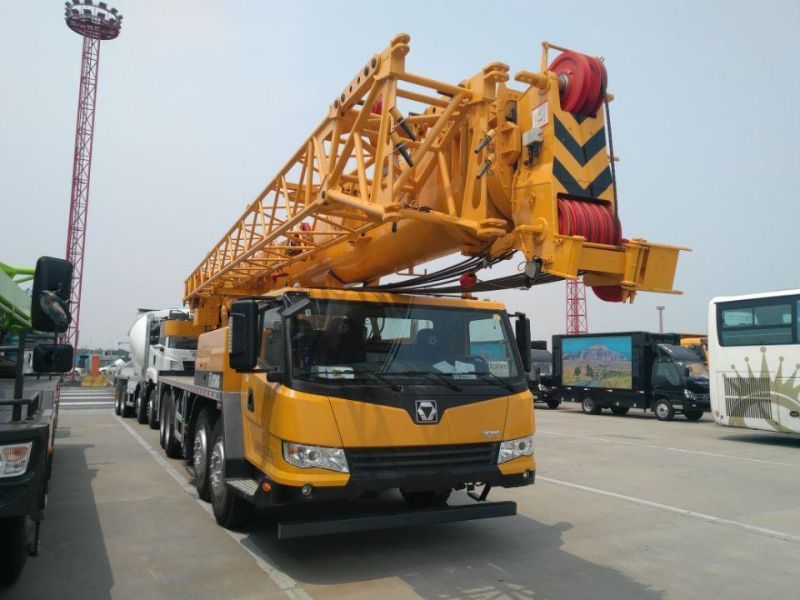

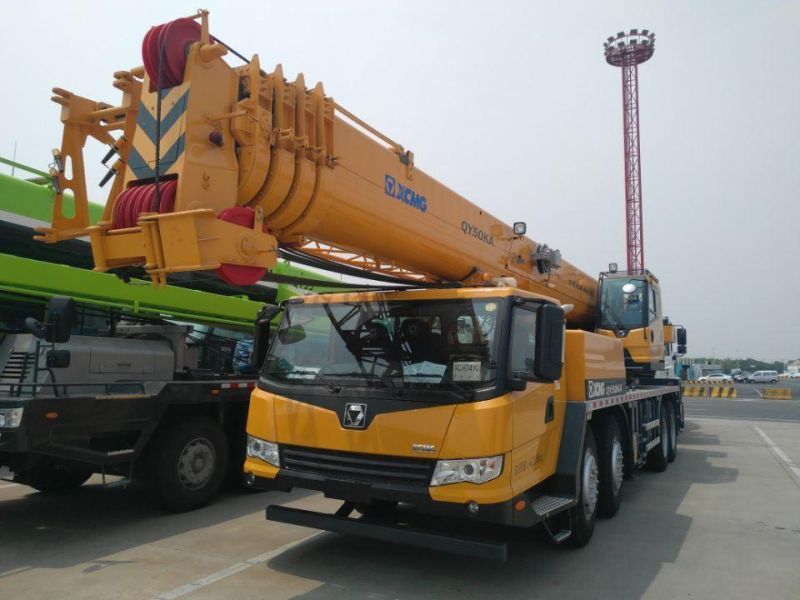

• Model NO.：QY50KA
• Shaft Number：3
• Crane Jib：Five-Arm
• Type：Straight Arm
• Overall Length：13930mm
• Overall Width：2780mm
• Overall Height：3630mm
• Engine Rated Power：276,2200kw,(R,Min)
• Max. Travel Speed：85km,H
• Transport Package：Nude
• Specification：50T
• Trademark：XC*MG
• Origin：Jiangsu
• HS Code：8454561452
• Production Capacity：100units,Month

Main Technical Data Table in Travel configuration  DescriptionUnitParameter value  Overall lengthmm13930      Overall widthmm2780  Overall Heightmm3630  Axle base1st ,2nd axlemm1470  2nd ,3rd axle4300  3rd ,4th axle1350  Wheel Basemm 2304+2075  Front overhang/rear overhangmm2389/2064or 2376/2064  Front extension/rear extensionmm2131/226 or 2144/226  Total vehicle mass in travel configurationkg42200  Axle load   Front axlekg16200  Rear axle26000  Engine Model WD615.338  Engine rated powerkw/(r/min)276/2200  Engine rated torqueN.m/(r/min)1500/1300-1600  Max. travel speedkm/h85  Min. steady travel speedkm/h2~3  Min. turning diameterm24  Min. ground clearancemm327  Max. grade ability%42  Approach angle°19  Departure angle°15  Braking distance (at 30 km/h, full load )m≤10  Oil consumption per 100kmL40  Exterior noise level during acceleration travelingdB (A)≤88  Noise level at seated positiondB (A)≤90  Main Technical Data Table for Lifting OperationMax. total rated lifting capacityt50Min. rated working radiusm3Turning radius at turntable tailmm3800Max. load momentBase boomKN.m2009Fully-extended boom1129Outrigger spanLongitudinalm6.1Lateral7.1Hoist heightBase boomm11.9Fully-extended boom44Fully-extended boom + Jib58.1Boom lengthBase boomm11.4Fully-extended boom43.5Fully-extended boom + Jib59.5Jib offset angle°0, 15, 30Time for boom raisings≤40Time for boom extending fullys≤90Max. slewing speedr/min≥2.0Outrigger extending and retracting timeOutriggerExtendings≤35beamSimultaneously Retracting≤30 SimultaneouslyOutriggerExtending≤40jackSimultaneously Retracting≤35 SimultaneouslyHoisting speedMain winchNo loadm/min≥130(single lineAuxiliary winchNo load≥130Exterior noise leveldB (A)≤118Noise level at seated positiondB (A)≤90
