• Model NO.：L160-10
• Installation：Assembled
• Moving Type：Fixed
• Type：Top-Slewing Crane
• Jib Length：60m
• Max. Lifting Capacity：10t
• Max. Lifting Moment：2450 Kn.M;
• Max. Hoisting Capacity at Jib Tip：7.6t
• Transport Package：Comply with Export Packaging Requirements for Min
• Specification：CE
• Trademark：ZOOMLION
• Origin：China
• HS Code：84262000
• Production Capacity：100 Units Per Month

Overview Product Description

1.Performance parameters of L160-10: performance parameters and technical indexes reach both domestic and international advanced level.

Max. jib length: 55m; Jib length under different assembling modes can decrease progressively by 5 meters and the Min. jib length is 30 meters.
Max. lifting capacity: 10t;
Max. hoisting capacity at jib tip:7.6t;
Max. lifting moment 2450 kN.m;
Max. free-standing height: 46.6m; Max. working height of anchored crane: 185.6m;
Hoisting mechanism: QPL10110; power: 45kW; rope capacity: 1010m;
Slewing mechanism: HVV95F1.130/HVV95F2.130; power: 2×95N.m (Equal to 2×5.5kW).
Trolleying mechanism: BP300; power: 30kW

2. Electrical control system
With PLC control, the electrical control system enjoys better reliability and safety. Produced by professional manufacturers with advanced foreign technology, the electrical elements feature service lives that are 3 or 4 times longer than that of domestic products, less faults, easy maintenance and repair as well as reliable operation.

3. Technical features
The crane boasts of multiple operation modes and wide application;
The complete machine adopts internationally well-received beautiful shape;
The crane features high working speed and excellent speed regulation performance. Stepless speed regulation by frequency control, the world's most advanced solution, is adopted for the trolleying mechanism and slewing mechanism, thus ensuring more stable and reliable operation ;
The cab is independently installed externally with good vision and large inner space, thus offering a good working environment for operators;
A variety of safety devices are equipped, which are all mechanical or mechatronic products that are applicable to severe working conditions, so as to ensure the tower crane's reliable operation.
Specification
 Product Parameters

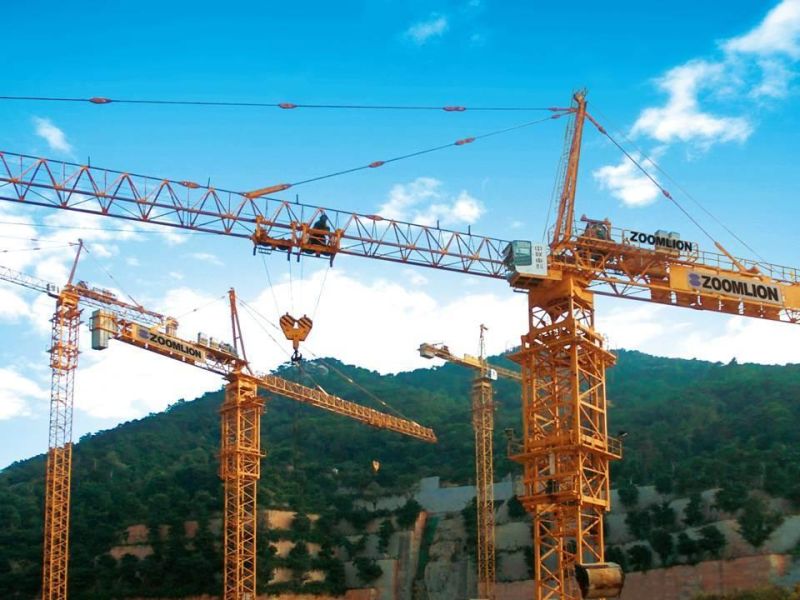

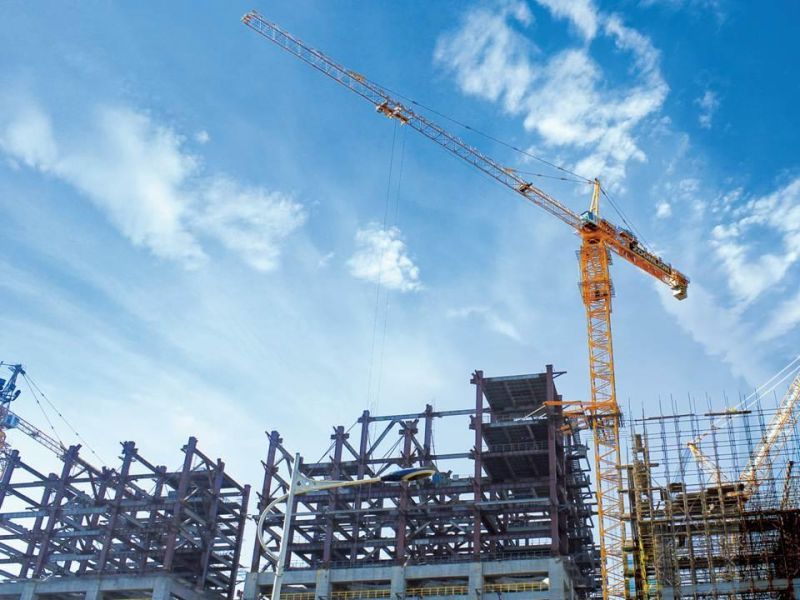

 Rated lifting    moment (kN.m)2450 Max. lifting    height (m)Free-standing    stationary crane46.6Anchored crane185.6Working radius    (m)     Max. working    radius   55Min. working    radius    3.3Max. lifting    capacity (t)10       Hoisting    mechanism Rope    fallα=2α=2.5α=4Speed (m/min)0~450~900~112.50~300~600~750~22.50~450~56.3Lifting weight    (t)52.51.257.53.751.8751052.5Power (kW)45Slewing    mechanismSpeed (m/min)0~0.7Power (kW)2×95N.m(Equal to 2×5.5kW).Trolleying    mechanismSpeed (m/min)2.2(15°~84.5°)Power (kW)30 Detailed Photos
