• Model NO.：SQS500K
• Rated Load：20ton
• Maximum Lifting Moment：50t.M
• Recommended Power：45 Kw
• Rotary Angle：360°all Rotation
• Application：Construction Usage, Workshop Usage
• Sling Type：Wire Rope
• Power Source：Hydraulic
• Moving Type：Wheel
• Installation：Assembled
• Transport Package：Nude Packing
• Specification：ce
• Trademark：xcmg
• Origin：China
• HS Code：8705102200
• Production Capacity：500 Units Per Month

Basic Info.

Model NO. SQS500K Rated Load 20ton Maximum Lifting Moment 50t.M Recommended Power 45 Kw Rotary Angle 360°all Rotation Application Construction Usage, Workshop Usage Sling Type Wire Rope Power Source Hydraulic Moving Type Wheel Installation Assembled Transport Package Nude Packing Specification ce Trademark xcmg Origin China HS Code 8705102200 Production Capacity 500 Units Per Month

Product Description

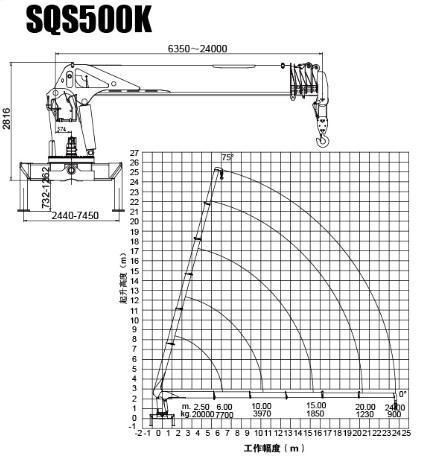

Dongfeng 20 Ton Truck Mounted crane SQS500K(telescopic boom)1. Single cable synchronous expansion technology, higher work efficiency
2. Of the advanced research means, ensure that the design reliability
3. Pentagon and hexagon suspension arm technology, to neutral good, cross section bending ability
4. Compact hinged point design, occupy the space is little
5. And with standard anti overwinding alarm device, assignments, more safety
6. Integral lifting winch mechanism, the working efficiency is higher, the hydraulic system to live
 longer
7. Unique floating three bridge structure design, effectively reduce the vehicle chassis girder are
under additional force
8. Independent research and development of slewing mechanism, with a strong driving force, can meet
more condition need
9. Anti rotary impact device, and effectively protect vehicle safety

Item	Specification	Unit
Maximum lifting quality	20000	Kg
Maximum lifting moment	50	T.M
Recommended power	45	KW
Max Oil Flow of Hydraulic System	120	L/min
Rated pressure of hydraulic system	26	Mpa
Oil tank capacity	360	L
Rotary angle	360°All Rotation	°
