• Model NO.：LD
• Type：Single Girder Crane
• Color：Industrial Yellow and Red
• Application：Construction Usage, Workshop Usage,
• Sling Type：Wire Rope
• Moving Type：Wheel
• Installation：Overall Rapid Disassembly
• Power Supply：380V,400,415,440V 50,60Hz 3pH
• Stepless Speed Control：Available (Variable Frequency Control)
• Electrical System Brand：Siemens,Schneider,Chint
• Affiliate Documents：English Operation Manual, Wiring Diagram
• Hoist Lift Speed：0.8,8 M,Min
• Transport Package：Plastic
• Specification：A3-S5
• Trademark：LYFOOCRANE
• Origin：Henan, China
• HS Code：84253190
• Production Capacity：10, 000 Sets Per Year

Basic Info.

Model NO. LD Type Single Girder Crane Color Industrial Yellow and Red Application Construction Usage, Workshop Usage, Sling Type Wire Rope Moving Type Wheel Installation Overall Rapid Disassembly Power Supply 380V/400/415/440V 50/60Hz 3pH Stepless Speed Control Available (Variable Frequency Control) Electrical System Brand Siemens/Schneider/Chint Affiliate Documents English Operation Manual, Wiring Diagram Hoist Lift Speed 0.8/8 M/Min Transport Package Plastic Specification A3-S5 Trademark LYFOOCRANE Origin Henan, China HS Code 84253190 Production Capacity 10, 000 Sets Per Year

Product Description

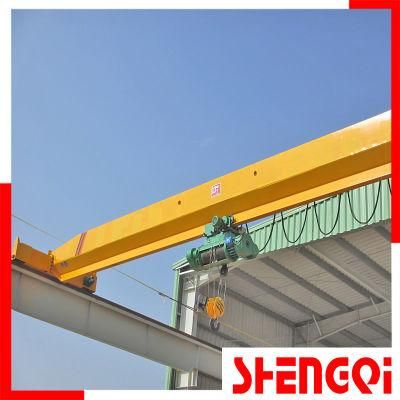

LD-Single Girder Overhead Crane

Under Running Crane (LD)
The LD type of under running overhead crane (also called bridge crane )is the most popular designing since the very beginning.  Our annual turnout is 20,000 units for the whole market. The main girder adopts 6mm and 8mm thickness steel plate. Chinese workshop has a 1700mm clearrance above the rail, which is excellenct for the maintenance of the crane.  In some Middle East countries, the clearance is  less than this, and please indicate this data when you placing the order.

Steel Plate Cutting and Treatment
The board was cut by auto-cutting machine.

Main Beam
We reserve the concept of "safety factor", and remain the traditional main beam fabrication methord. Each of the beam is made by 6mm thickness of side board, and 8mm top and bellow board.

Bearing System
The  reducer is hardtooth designing. Bearing is HA/WA/LUO 3 brands. Casting box type. The gear box is made by our factory in order to give a reliable quality. The market has many suppliers, and some of them can get 50% price than ours.  However, we do not reduce the quality in order to reduce the cost.


Safety Device
  Long travel limit switch
  Cross travel limit switch
 Counter-weight and pedal limit switch for hoisting
   Pedal limit switch for lowing
   Overload limit switch

End Trucks (Carriage)
Soft start driving system(380v only) makes the long travel smoothly, reduces noise.  Modular system designing gives the crane more free working space. Unique conbinations with steel profiles sections for maximum distance between suspensions.


Double C-track Festoon System

 4mm thickness national standard trackpull  and push wheel with sealed bearing
 Flat cable for strong life.
 Electrical box has indication of working.
 This double C-track festoon system makes the driver can be seperate from the hoist , so that give a maximum safety protection.


Capacity	0.5t~20t
Span	4.5m~30m
Lift height	6m~12m
Lifting Speed	7m/min
Cross Travel Speed	20m/min
Long Travel Speed	20m/min or 30m/min
Work Duty	A3(Equal to m2)
Controlled by	Pendant/Radio
Power Supply	380v/400/415v/460v
