Large Stc1000c New 100 Ton Truck Crane
Sinomada Heavy Industry (Changsha) Co., Ltd.- Certification:GS, RoHS, CE, ISO9001
- Condition:New
- Maximum Lifting Height:>40m
- Maximum Lifting Weight:>16t
- Shaft Number:5
- Crane Jib:Five-Arm
Base Info
- Model NO.:Stc1000c
- Type:Folding
- Transport Package:Nude Package
- Origin:China
- HS Code:87051092
- Production Capacity:5000pices,Year
Description
Capacity
Max. lifting capacity
100t
Dimensions
Overall length
15400mm
Overall width
3000mm
Overall height
4000mm
Axles
5
Axle distance-1,2
1980mm
Axle distance-2,3
3120mm
Axle distance-3,4
1450mm
Axle distance -4, 5
1500mm
Weight
Overall weight
54950kg
Front axle load
18500kg
Rear axle load
36450kg
Engine
Model
Germany original
Rated power
350kw/1800rpm
Rated torque
2300N·m/1080rpm
Emission standard
Euro III
Traveling
Max. traveling speed
85km/h
Min.turning radius
11m
Min.turning radius of boom head
14m
Drive train
10 × 6 × 6
Min. ground clearance
310mm
Approach angle
21 °
Departure angle
18 °
Max. gradeability
45%
Fuel consumption per 100km
≤ 70 L
Main Performance
Temperature range
- 20 ºC ~ + 40 ºC
Min.lifting radius
3m
Tail swing radius of superstructure
4.695m
Boom section
6
Boom shape
U-shaped
Max. lifting moment-Base boom
4320kN·m
Max. lifting moment-Full-extend boom
1800kN·m
Length-Base boom
13.25m
Length-Full-extend boom
60m
Length-Full-extend boom+jib
78.1m
Outrigger span(Longitudinal/Transversal)
7.6×7.6m
Jib offset
0 ° 15 ° 30 °

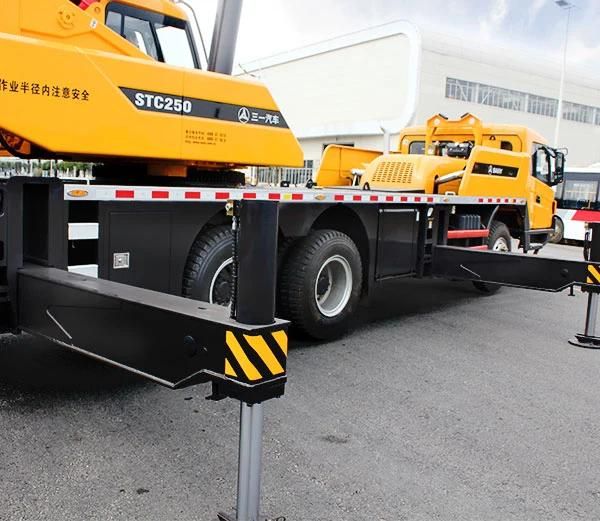

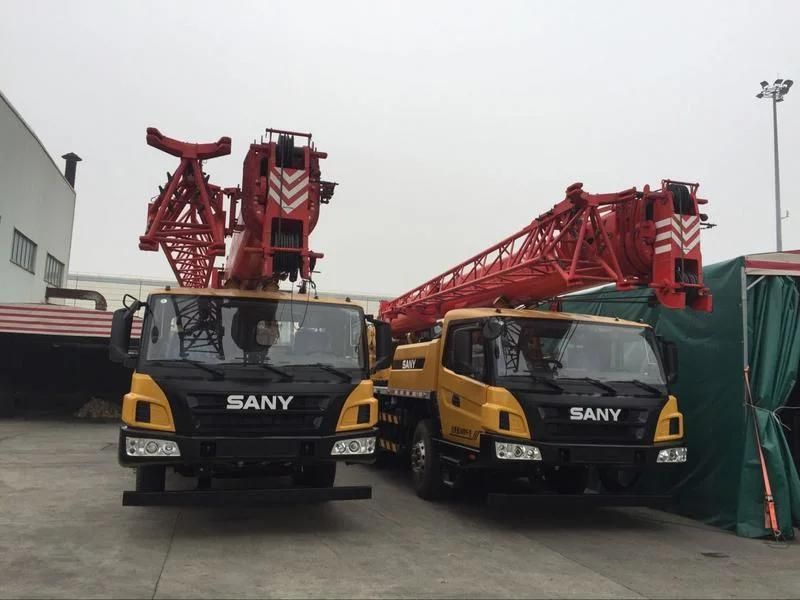

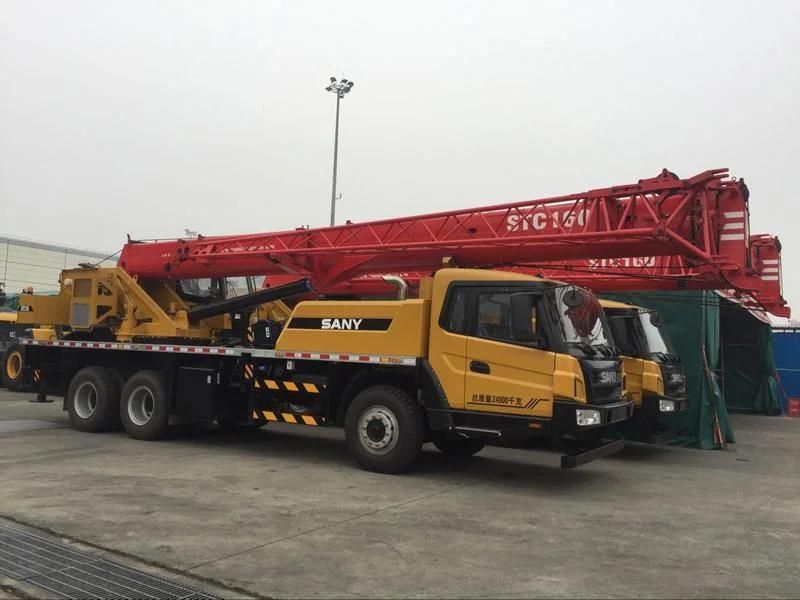

Pictures
