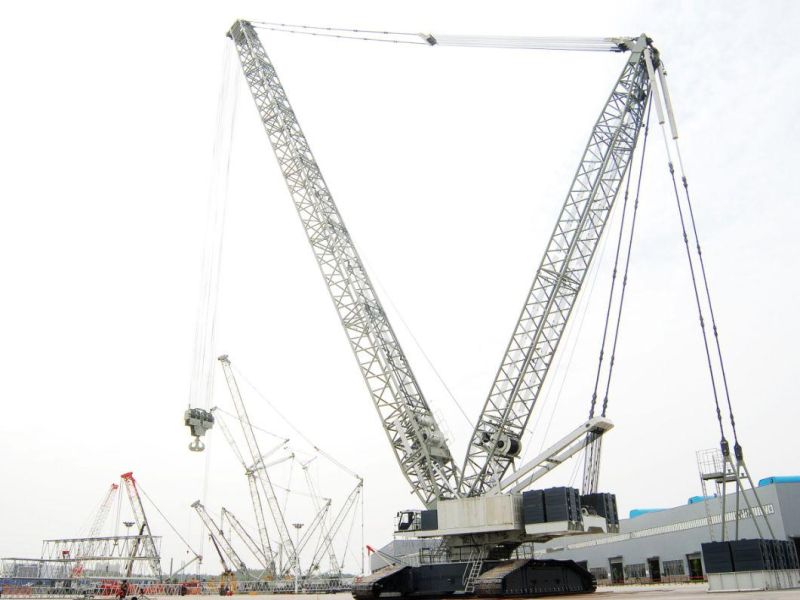

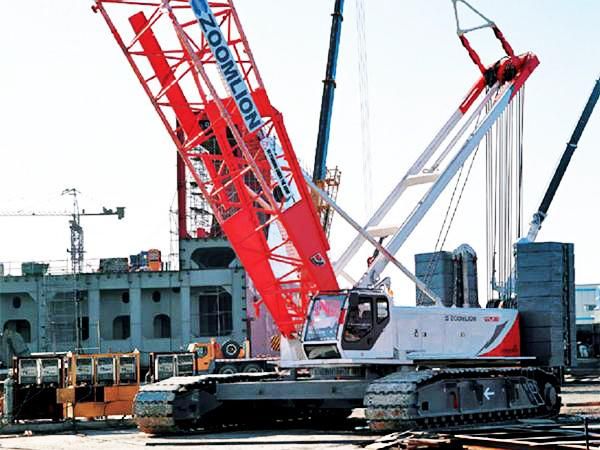

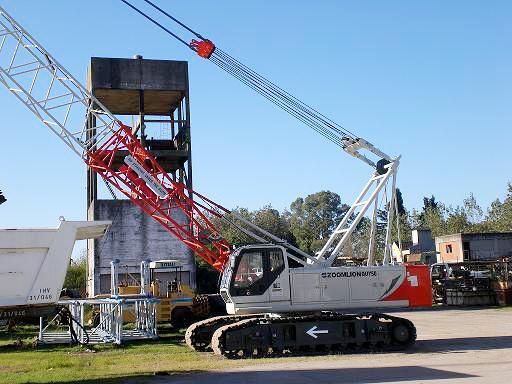

Chinese Famous Brand Zoomlion Quy180 Crawler Crane for Sale
Sinomada Heavy Industry (Changsha) Co., Ltd.- Max. Lifting Height：>40m
- Rated Loading Capacity：150ton
- Certification：ISO9001, CE, RoHS, BV
- Condition：New
- Warranty：1 Year
- Transport Package：Nude Package
Base Info
- Model NO.：Quy180
- Trademark：zoomlion
- Origin：China
- HS Code：84264910
- Production Capacity：5000PCS,Year
Description
Ser. No.ItemUnitValueRemark1Maximum lifting weight ×radiust×m180×5 2Maximum lifting momentT·m1062.4132.8 (lifting weight) ×8 (range)3Basic boom dead weightt167 4Length of main boomm20~83 5Maximum lifting weight of tower boomt38 6Length of tower boomm24~51 7Maximum lifting weight of jibt25t 8Length of fixed Jibm13~31 m 9Speed of rope on the drum of main winchm/min110Drum outermost layer10Speed of rope on the drum of auxiliary winchm/min110Drum outermost layer11Speed of rope on the drum of derricking winchm/min30Drum outermost layer12Swing speedr/min0~1.4 13Travelling speedkm/h0~1.2 14Gradeability%30% 15Pressure to the groundMPa0.1 16Outline dimension length ×width ×height m10.6×7.1×3.65Mast-free main boom17Engine rated power / speedKw/rpm227/2000 18Engine maximum output torque / speed N·m/rpm1505/1400 19Engine emission standard U. S. EPA Tier 20Crawler gauge ×crawler length × crawler widthmm6000×7750×1100
