Crane

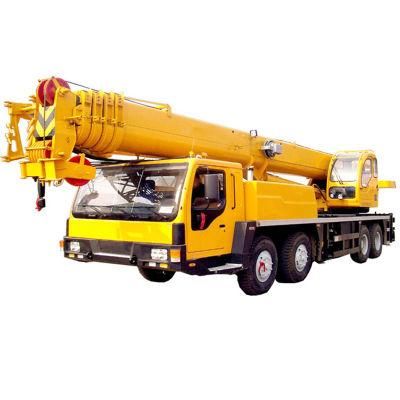

25 Ton Hydraulic Truck Mobile Crane Tc250c5

Sinomada Heavy Industry (Changsha) Co., Ltd.
  • After-sales Service:Provided
  • Warranty:Provided
  • Certification:CE
  • Condition:New
  • Maximum Lifting Height:44m
  • Maximum Lifting Weight:25ton

Base Info

  • Model NO.:TC250C5
  • Shaft Number:,
  • Crane Jib:,
  • Type:Straight Arm
  • Engine Rated Power:221kw
  • Maximum Lifting Moment:1155kn.M
  • Maximum Output Torque:1100n.M
  • Maximum Travel Speed:85km,H
  • Transport Package:Nude
  • Specification:12955*2600*3490mm
  • Trademark:SINOMADA
  • Origin:China
  • HS Code:8426411000
  • Production Capacity:100units,Month

Description

Overview Hot Products25 Ton Hydraulic Truck Mobile Crane Tc250c5Product Description
  • Product Parameters

    Main arm length

    10800-35000 mm

    Engine rated power

    221kW@2500rpm

    Maximum rated lifting weight

    25 t

    Maximum lifting moment of basic boom

    1155 kN·m

    Overall length

    12955 mm

    Overall width

    2600 mm

    Overall height

    3490 mm

    Total mass of the whole machine

    31650 kg

    Front axle load

    6800 kg

    Rear axle load

    12425/12425 kg

    engine model

    ISD300 50

    Maximum engine power

    221kW@2500rpm

    Engine maximum output torque

    1100N·m@1200~1800rpm

    Maximum travel speed

    85 km/h

    Minimum turning radius

    11 m

    Approach angle

    19 °

    Departure angle

    14 °

    Maximum grade

    0.4

    Fuel consumption per hundred kilometers

    ≤40 L

    Maximum rated total lifting capacity

    25 t

    Turntable tail radius of gyration

    3.367 m

    Maximum lifting moment (basic boom)

    1155 kN·m

    Maximum lifting moment (longest main boom)

    864 kN·m

    Outrigger span (horizontal×vertical)

    6.4×5.6 m

    Basic boom length

    10.8 m

    The longest main boom length

    35 m

    Longest main boom + auxiliary boom

    44 m

    Maximum speed of single rope of main winch (no load)

    130 m/min

    Maximum speed of auxiliary winch single rope (no load)

    130 m/min

    Boom fully extended/retracted time

    65/70 s

    Full lifting/falling time of boom

    45/65 s

    Swing speed

    0~2.4 r/min
