• Model NO.：ZTC550R
• Type：Straight Arm
• Max. Rated Lifting Capacity：55000kg
• Max. Lifting Height of Jib：60 M
• Max. Gradeability：40%
• Deadweight in Driving Condition：39000 Kg
• Transport Package：Nude
• Specification：13530x2600x3700 mm
• Trademark：Oriemac
• Origin：China
• Production Capacity：350units,Month

ItemUnitValueRemarksWorking    performanceMax.    rated lifting capacitykg55000 Max.    load moment of basic boomkN.m1568 Max.    load moment of main boom(fully extended)kN.m940.8 Max.    load moment of basic boomm11.8 Max.    lifting height of main boomm44These    parameters do not include deflection of main boom and jibMax.    lifting height of jibm60Working    speeds            Max.    hoist rope speed(Main winch)m/min135At    the 4th  layerMax.    hoist rope speed(Auxiliary winch)m/min120At    the 4nd   layerBoom    demrricking up times45 Boom    demrricking up times95 Slewing  speedr/min0    -2.2 Driving    parametersMax.    driving  speedkm/h74 Max.    gradeability%40 Turning    diameterm≤24 Min.  ground clearancemm260 Oil    consumption per hundred kilometersL40 MassDeadweight    in driving conditionkg39000 Complete    vehicle kerb masskg38805 Front    axle loadkg13000 Rear    axle loadkg26000 DimensionsOverall    dimensions(L×W×H)mm13530×2600×3700 Outrigger    spread(L)m7.30 Outrigger    spread(W)mFully    extended:5.95,
     Intermediately    extended:4.8 Tail    slewing radiusmm3690 Main    boom lengthm11.2    - 44.0 Boom    angle°-2    - 80 jib    lengthm9.5, 16.0 Offset°0,15,30

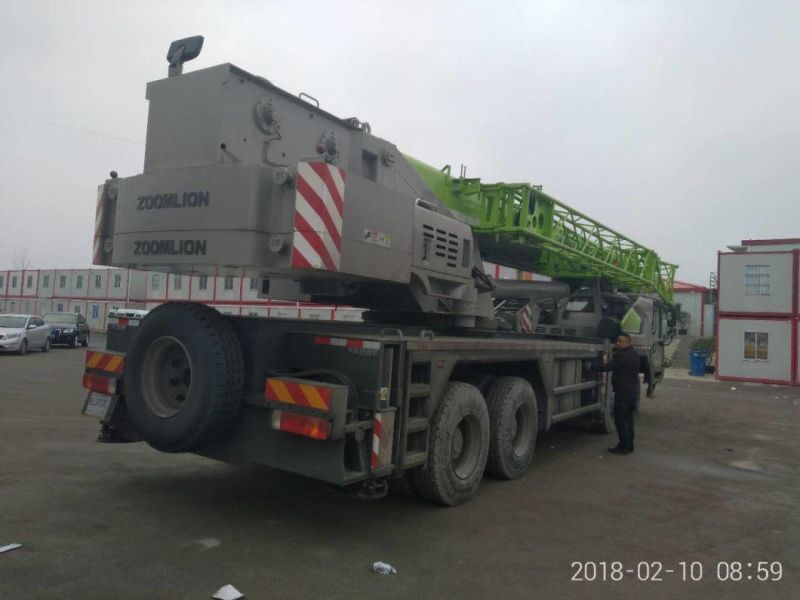

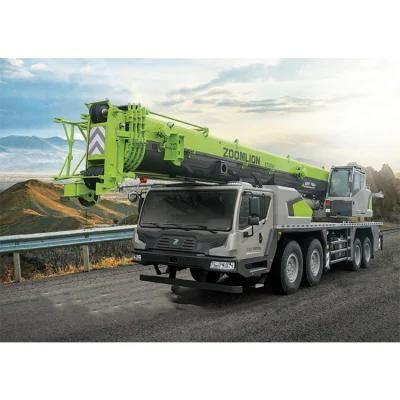

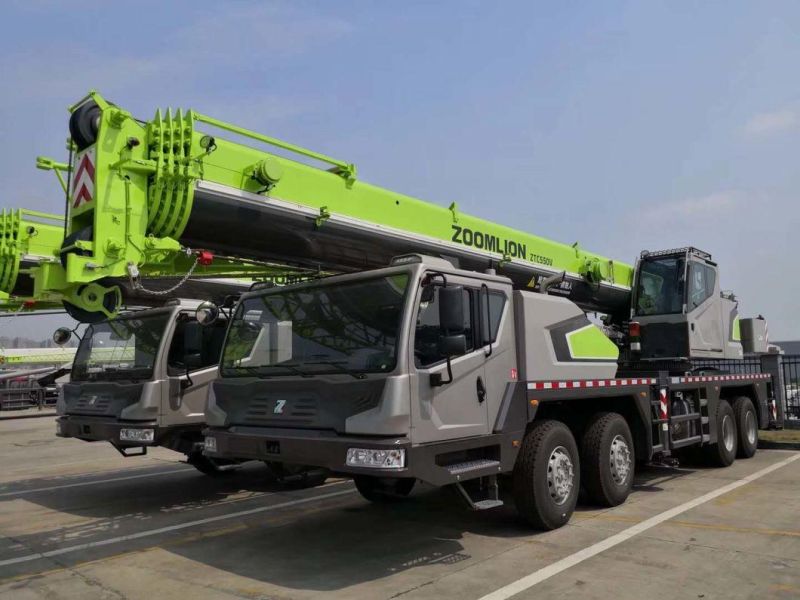

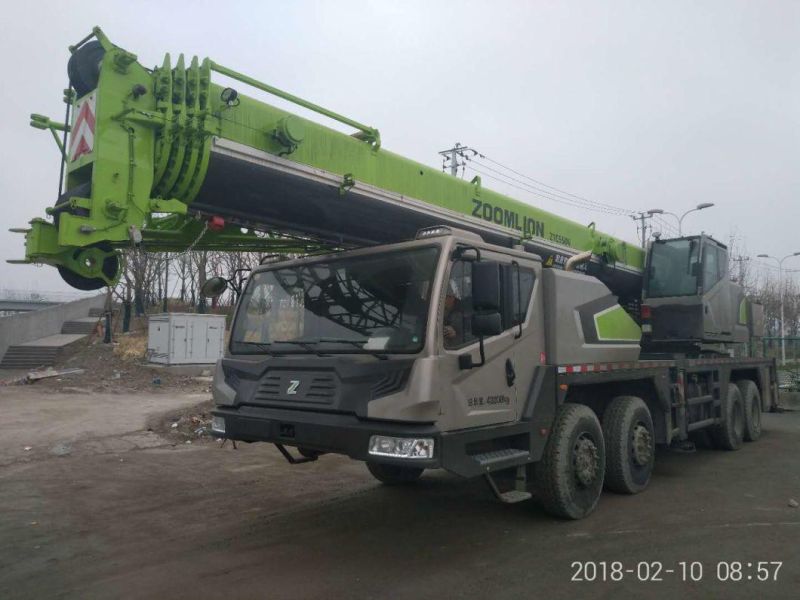

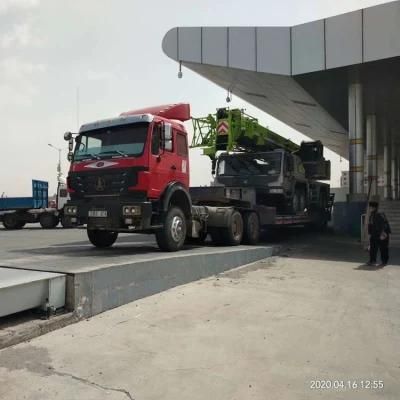

Product Show
