• Model NO.：L125-8F,10F
• Installation：Assembled
• Moving Type：Orbital
• Type：Under-Slewing Crane
• Maximum Lifting：150-200m
• Max Lifting Moment (T.M)：180
• Max Working Range (M)：50
• Free-Standing Height (M)：37.9
• Max Lifting Speed (M/Min)：132
• Slewing Speed (R/Min)：0~0.79
• Transport Package：Nude
• Specification：60m, 55m, 50m, 45m, 40m, 35m, 30m
• Trademark：Zoomlion
• Origin：China
• HS Code：8426200000
• Production Capacity：1000 Units,Year

Basic Info.

Model NO. L125-8F/10F Installation Assembled Moving Type Orbital Type Under-Slewing Crane Maximum Lifting 150-200m Max Lifting Moment (T.M) 180 Max Working Range (M) 50 Free-Standing Height (M) 37.9 Max Lifting Speed (M/Min) 132 Slewing Speed (R/Min) 0~0.79 Transport Package Nude Specification 60m, 55m, 50m, 45m, 40m, 35m, 30m Trademark Zoomlion Origin China HS Code 8426200000 Production Capacity 1000 Units/Year

Product Description

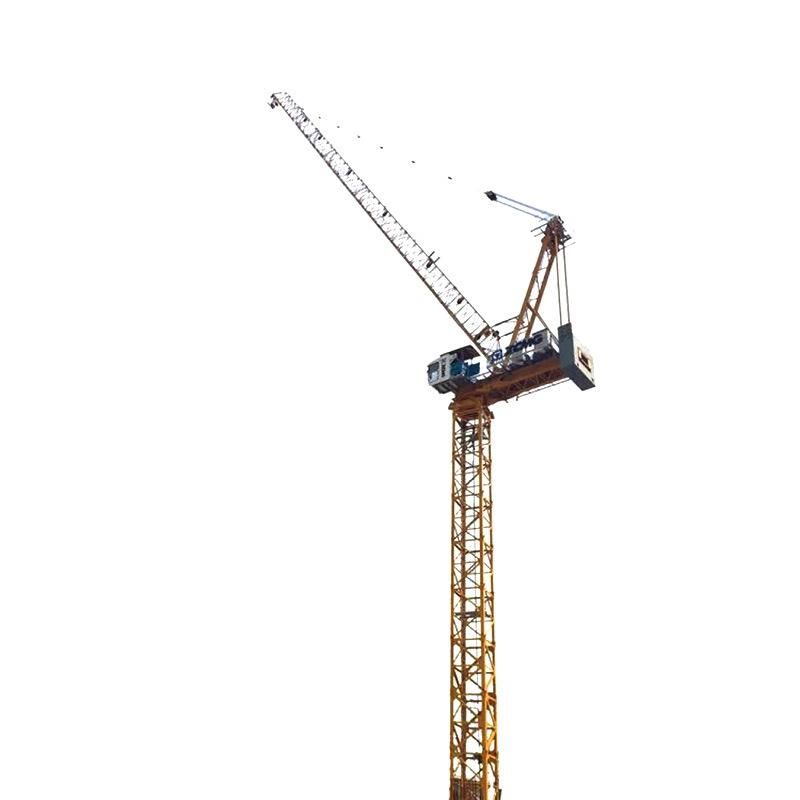

20ton Tower Crane  XL6025-20 Luffing Tower Crane

1. Performance parameters of L125-10: performance parameters and technical indexes reach both domestic and international advanced level.
• Max. jib length: 50m; Jib length under different assembling modes can decrease progressively by 5 meters and the Min. jib length is 30 meters.
• Max. lifting capacity 10t;
• Max. hoisting capacity at jib tip: 1.5t;
• Maximum lifting moment: 125 t.m
• Hoisting mechanism: H37FP20-610P; power: 37kW; rope capacity: 610m;
• Slewing mechanism: HWPF1.130B/HWPF1.130B; power: 2x5.5 kW;
• Trolleying mechanism: L30FP35; power:30kW.
2. Electrical control system
With PLC control, the electrical control system enjoys better reliability and safety. Produced by professional manufacturers with advanced foreign technology, the electrical elements feature service lives that are 3 or 4 times longer than that of domestic products, less faults, easy maintenance and repair as well as reliable operation.

3. Technical features
• The crane boasts of multiple operation modes and wide application;
• The complete machine adopts internationally well-received beautiful shape;
• The crane features high working speed and excellent speed regulation performance. Stepless speed regulation by frequency control, the world's most advanced solution, is adopted for the trolleying mechanism and slewing mechanism, thus ensuring more stable and reliable operation ;
• The cab is independently installed externally with good vision and large inner space, thus offering a good working environment for operators;
• A variety of safety devices are equipped, which are all mechanical or mechatronic products that are applicable to severe working conditions, so as to ensure the tower crane's reliable operation.


Product Paramenters

Model	L125-8F/10F
Max lifting weight (t)	8/10
Max lifting moment (t.m)	180
Max working range (m)	50
Max hoisting capacity at jib tip (t)	1.5
Free-standing height (m)	37.9
Max lifting speed (m/min)	132
Slewing speed (r/min)	0~0.79
