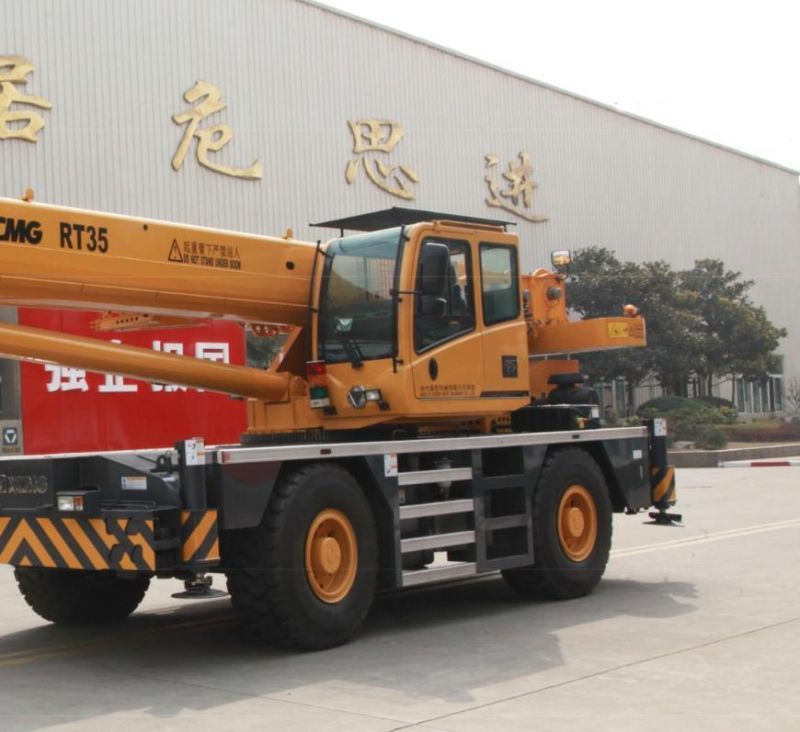

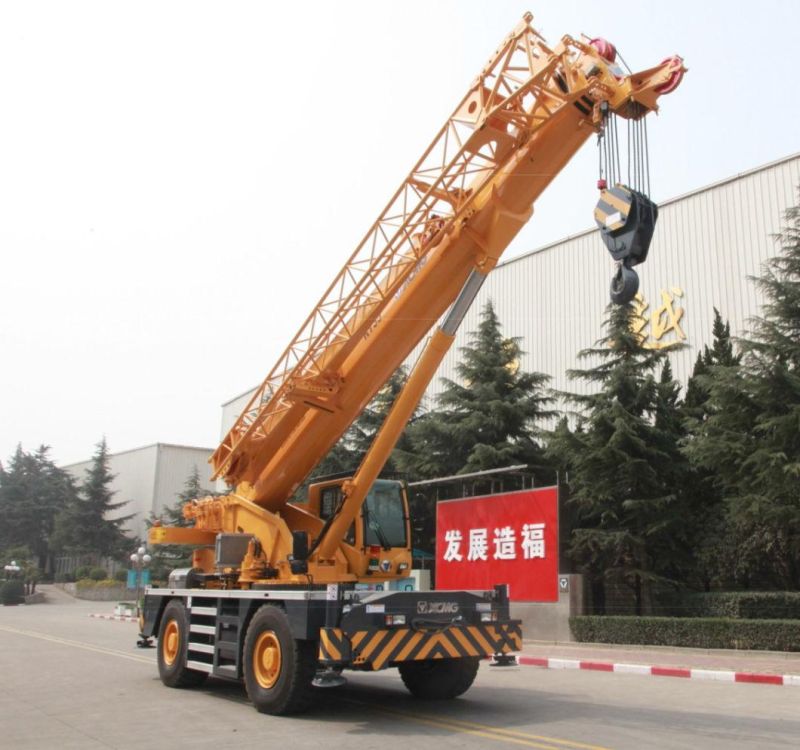

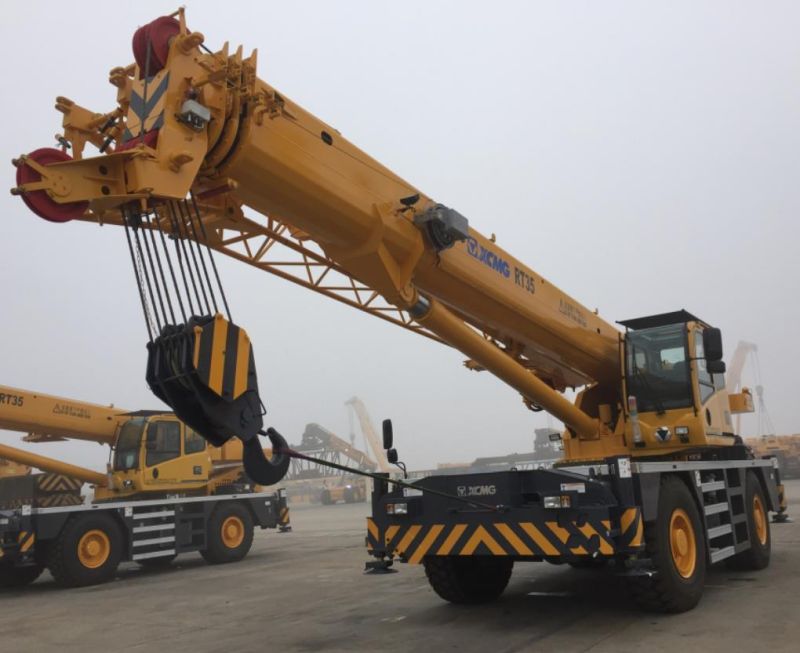

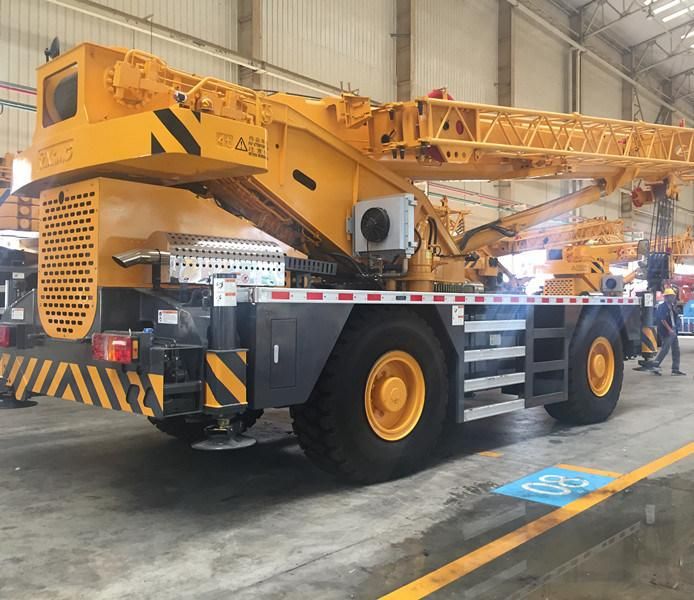

• Model NO.：RT35
• Warranty：1 Year
• Engine Rated Power：142kw
• Span：2250~10000m
• After-Sales Service Provided：Overseas Service Center Available
• Transport Package：Comply with Export Packaging Requirements
• Specification：11952x2980x3450mm
• Trademark：XCMG
• Origin：Xuzhou, Jiangsu, China
• HS Code：87051022
• Production Capacity：10000,Year

Category
Item
ParameterAllowance



DimensionOverall lengthmm11952±1%Overall widthmm2980-1%~0Overall heightmm3450-1%~0Wheel basemm3700±1%(/) Track (front/rear)mm2440±1%/Front/rear overhangmm1900/2151±1%/Front/rear extensionmm4201/0±1%

WeightKerb masskg30300±3%
Axle load1st Axlekg15100±3%2nd Axlekg15200±3%



Travel
Max. travel speedkm/h38≥
Min. turning radiusm5.7(),9.6()
5.7  (4 wheels), 9.6 (2 wheels)±3%
Min. ground clearancemm400±1%Approach angle°23±1°Departure angle°20±1°(24km/h)
Braking distance (at 24 km/h)m9≤
Max. grade-ability%55≥



PowerEngine model QSB6.7-C190/
Rated engine powerkW142/
Engine rated rotation speedr/min2200/
Engine emission standard
off-road  EU Stage IIIA/Driving type 4×2, 4×4/Tire specifications 20.5R25/Number of tires 4/
 Main technical data for lifting operationCategory
ItemParameterAllowance





Main performanceMax. rated lifting capacityt35±5%Min. rated working radiusm3±1%()
Slewing radius at turntable tail (at counterweight)mm3885±1%
Max. load momentBase boomkN·m1445.5±5%Fully-extended boomkN·m835±5%
Outrigger spanLongitudinalm6.9±1%(/)
Lateral(fully/half extended)m6.9/5.8±1%
Lifting heightBase boomm9.7±1%Fully-extended boomm31.7±1%+
Fully-extended boom + Jibm45.1±1%
Boom lengthBase boomm10.1±1%Fully-extended boomm32±1%+
Fully-extended boom + Jibm47±1%Jib offset angle°0, 15, 30±1°



Working speedTime for boom raisings65≤Time for boom extending fullys85≤Max. slewing speedr/min2.5≥
Outrigger extending/  retracting time
Outrigger beam
Simultaneously extendings25≤
Simultaneously retractings15≤
Outrigger jack
Simultaneously extendings30≤
Simultaneously retractings15≤
()
Hoisting speed
(at 4th layer, no load)Main winchm/min120≥Auxiliary winchm/min120≥













FAQ

1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted

2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,

3: What about the delivery time?
A: 30 days after receiving the deposit.

4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.

5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
