Frenquency of European Type Electric Double Girder Overhead Crane 25t
Henan Kuangshan Crane Co., Ltd.- After-sales Service：Field Installation and Maintenance
- Warranty：1 Year
- Certification：GS, CE, ISO9001, ISO9001: 2000
- Condition：New
- Operation Form：Air Operation+Ground Operation
- Maximum Lifting Height：30-40m
Base Info
- Model NO.：KSL
- Maximum Lifting Weight：>200t
- Main Girder Form：Double Girder
- Type：Double Beam Crane
- Capacity：2-550ton
- Span：6-32m
- Lifting Height：up to 30m
- Working Duty：A4-A7
- Industrial Voltage：Local Requirement
- Lifting Mechanism：Winch Trolley or Electric Wire Rope Hoist
- Emergency System：Included
- Current Overload Protection System：Included
- Application：Construction Usage, Workshop Usage
- Sling Type：Wire Rope
- Transport Package：Srandard Exporting Packing
- Specification：Different according to cranes
- Trademark：Henan Mine
- Origin：Henan, China
- HS Code：84261120
- Production Capacity：1000 Sets,Year
Description
Main Features of the European Style Double Girder Overhead Crane
1). Long Life Span: 30-50years;
2). Easy for Installation and maintenance;
3). Reasonable structure and strong rigidity;
4). The speed can be frequency inverter speed control;
5). Control method is cabin control or remote control;
6). Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook;
7). Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe
Features: Light-weight, generalizing, energy-conservation and environmental protection, maintenance free and high technology content.
Application: Industry of machinery production, assembling, petrochemicals, warehouse logistics, electric power construction, papermaking and railways.
Main beam employs box-type structure and connects with end beam by high -strength bolt ensuring easy transportation.
Main beam uses bias-rail box-type structure, with optimized design and light self-weight.
Steel plate material Q345-B.
U-shaped main beam assembly machine with hydraulic forming which has won national patent to make sure beautiful shape as well as durability.
Power supply system for trolley:
High quality
Saving space
Long life for use
Easy for maintenance
Trolley of crane uses open compact winching structure or new hoist trolley with medium and small tonnage.
Travelling mechanisms of crane and trolley adopt Europe three-in-one drive form, harden gear reducer, and owns the advantages of compact structure, low noise, no oil leakage, long service life, decreasing the height of factory building and reducing cost.
Full variable-frequency control runs steadily without any impaction. Running with heavy load at low speed and light load at high speed, saving energy and reducing consumption.
Operation cabin for crane
Cabin frame: Beatiful appearance
Connection consoles:Seat + two adjustable consoles
Accessories: Alarm system, energy saving lighting, wiper blade and blinds Our ServicesPre-Sales ServiceProfessional team:
1. One to one service guarantees you the best purchasing experience.
2. Strong production capacity and professional workmen guarantee you the short delivery.
3. Strict delivery inspection guarantees you the high quality products.
4. The short delivery timeAfter-Sales ServiceFree to contact us:
1. One year warranty for whole machines
2. Providing free quick-wear part
3. Low charge for continue maintenance when warranty is expired
4. Exclusive engineer support at any time.
5. Highly professional training to end-users

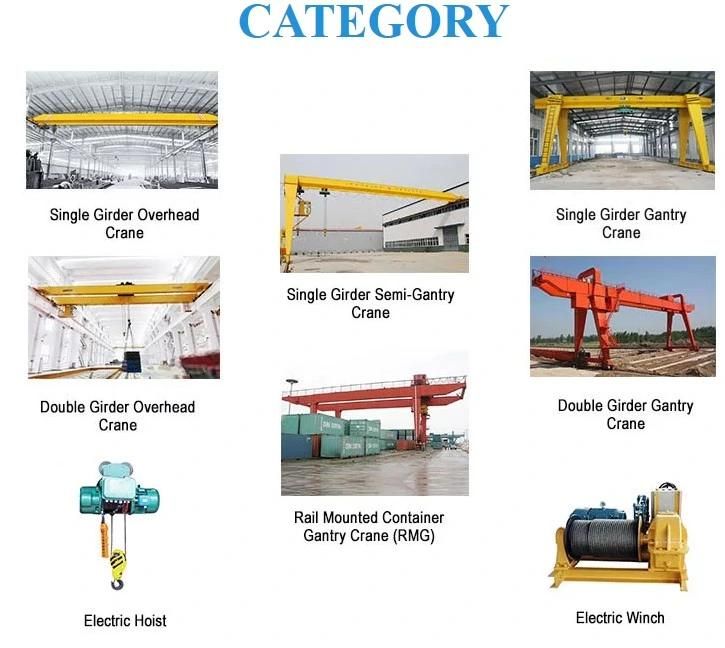

Main Product:
Henan Mine Crane meet the demand factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace and other industries of universal bridge crane, overhead crane price 20 ton 5ton, eot crane, door crane, universal gantry crane, rubber tyre and rail mounted container gantry crane, four link type portal crane, quayside container crane, crane, crane hook, mining grab crane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic crane.
Company Introduction:
Packing&Shipping:
Customer Visit:
FAQ:
