Lifting Height 67.5m 80 Ton Truck Crane (ZTC800E552)

Evangel Industrial (Shanghai) Co., Ltd.
  • After-sales Service：1 Year
  • Warranty：1 Year
  • Certification：GS, RoHS, CE, ISO9001
  • Condition：New
  • Maximum Lifting Height：>40m
  • Maximum Lifting Weight：>16t

Base Info

  • Model NO.：ZTC800E552
  • Shaft Number：4
  • Crane Jib：Five-Arm
  • Type：Straight Arm
  • Engine：Weichai
  • Operating Type：Pilot Control
  • Transport Package：Nude Packing
  • Specification：13700X2800X3650mm
  • Trademark：ZOOMLION
  • Origin：Hunan, China
  • HS Code：8705109100
  • Production Capacity：50 Sets,Month

Description

project

Company

numerical value

Maximum rated total lifting capacity

kg

80000

Maximum lifting torque of basic boom

kN.m

3528

Maximum lifting torque of full Outrigger

kN.m

2254

Full extension

m

50

Maximum speed of single rope (main / auxiliary hoisting mechanism)

m/min

130/130

Maximum driving speed

km/h

90

Self weight of driving state

kg

50000

Overall dimension (length * width *height)

mm

15000×3000×3920

Outrigger span (longitudinal × transverse)

m

6.38×8.0

Rated power / speed

kW/r/min

276/1900

Maximum torque / speed

N.m/r/min

1800/1000-1400


Pictures

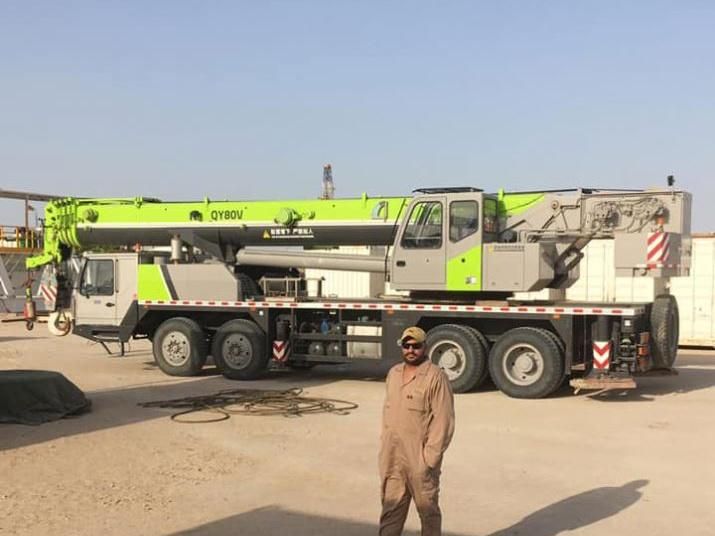

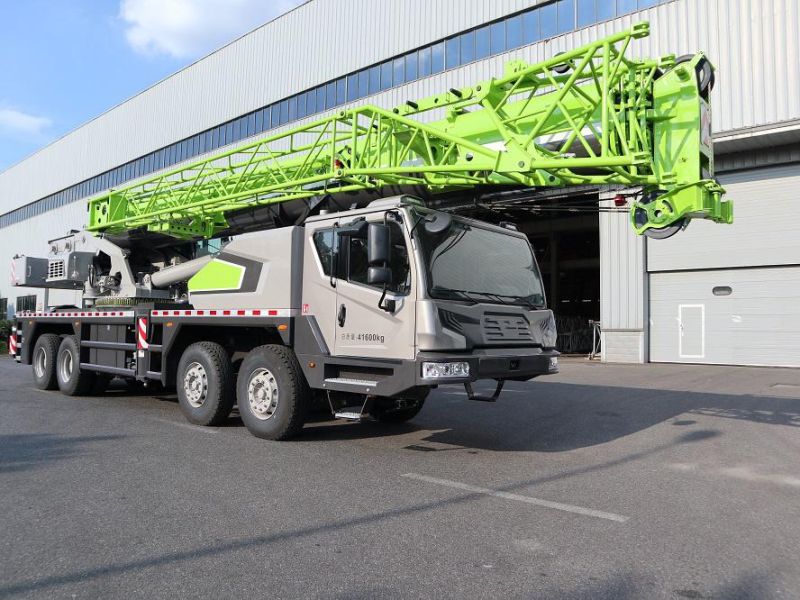

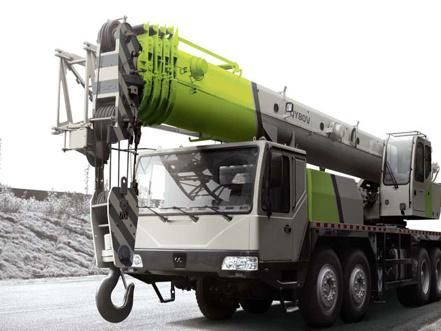

Lifting Height 67.5m 80 Ton Truck Crane (ZTC800E552)Lifting Height 67.5m 80 Ton Truck Crane (ZTC800E552)Lifting Height 67.5m 80 Ton Truck Crane (ZTC800E552)
Our Factory
Lifting Height 67.5m 80 Ton Truck Crane (ZTC800E552)Lifting Height 67.5m 80 Ton Truck Crane (ZTC800E552)Lifting Height 67.5m 80 Ton Truck Crane (ZTC800E552)Lifting Height 67.5m 80 Ton Truck Crane (ZTC800E552)Lifting Height 67.5m 80 Ton Truck Crane (ZTC800E552)Lifting Height 67.5m 80 Ton Truck Crane (ZTC800E552)Lifting Height 67.5m 80 Ton Truck Crane (ZTC800E552)Lifting Height 67.5m 80 Ton Truck Crane (ZTC800E552)
