• Model NO.：SAC600E
• Crane Jib：6-Section Boom
• Type：Straight Arm
• Boom Length：50 M
• Outrigger Span：7.45*6.4 M
• Engine Power：280,1600 Kw,Rpm
• Overall Weight：36 T
• Transport Package：Nude Packaged
• Specification：11995*2550*3777 mm
• Trademark：Palfinger San-y
• Origin：Hunan, China
• HS Code：84269100
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. SAC600E Crane Jib 6-Section Boom Type Straight Arm Boom Length 50 M Outrigger Span 7.45*6.4 M Engine Power 280/1600 Kw/Rpm Overall Weight 36 T Transport Package Nude Packaged Specification 11995*2550*3777 mm Trademark Palfinger San-y Origin Hunan, China HS Code 84269100 Production Capacity 5000PCS/Year

Product Description

SAC600E 60 Ton All Terrain Mobile Crane with 3 Axles
 Product Description

Model	SAC600E	SAC1100S	SAC1300S
Max Lifting weight	60 t	110 t	130 t
Max. Lifting height	66.5 m	90.5 m	92.4 m
Max. Lifting moment	1881 kN.m	4145 kN·m	4547 kN·m
Engine power	280/1600 kW/rpm	360/1800 kW/rpm	360/1800 kW/rpm
Boom length	50 m	63 m	63.5 m
Outrigger span	7.45*6.4 m	7.8*7.6 m	7.8*7.6 m
Min. turning diameter	6.5/10 m	8.5/11 m	8.5 m
Overall weight	36 t	54 t	55 t
Dimension	11995*2550*3777 mm	14500*2800*4000 mm	14500*2800*4000 mm

Selling Points

Optimal Performance
Made of high strength structural steel, the telescopic boom integrates longer reach with
lightweight concept. Longest boom is 50m, at which max. lifting height is 50.5m.
Fixed jib mounted highly efficiently at offset angle 0°, 20°, or 40°, easy switchover.

Access More in One
SIX steering modes realize higher maneuverability, off-road agility, and improved
riding comfort. Min. steering radius ≤6.5m.

Upgraded Operating Precision
Key hydraulic components proved high quality and reliability, better controllability via
precise data feedback.
Smooth slewing and inching performance realized by integrated balance valve.

Modernity & Fuel Economy
Newly designed cab optimizes safety, comfort, and convenience of easier
operation.
Load sensing and constant power control optimize fuel utilization.

Enhanced Safety
LMI: all round protection, system warning for overloading.
Hydraulic valves ensure stability.
Hoist winch three-circle protector and boom top height limit switch prevent wire
ropes from overhoisting up or down.
Length, angle and pressure sensors help cut off dangerous mot ions
automatically with buzzer warning.

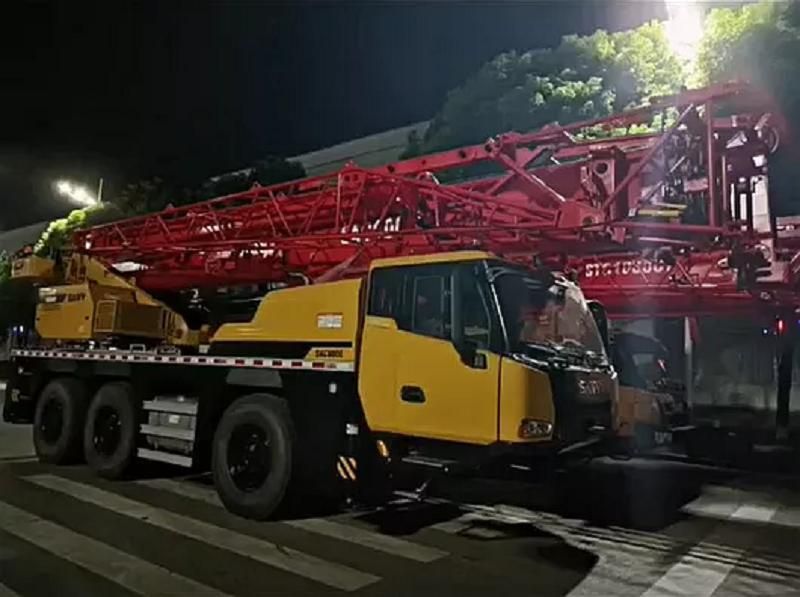

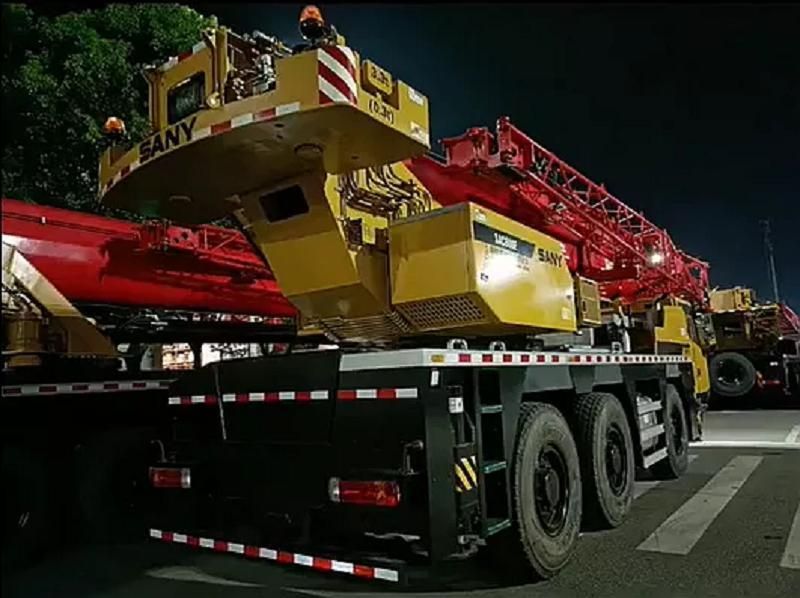

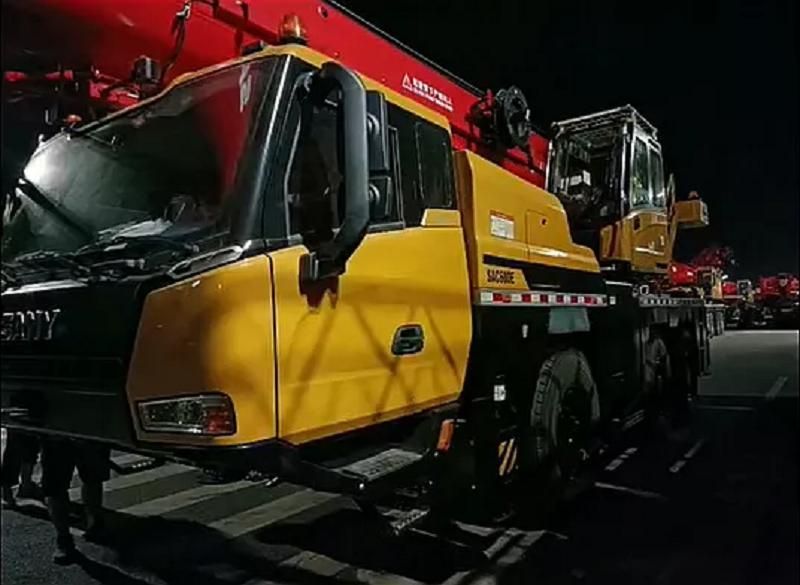

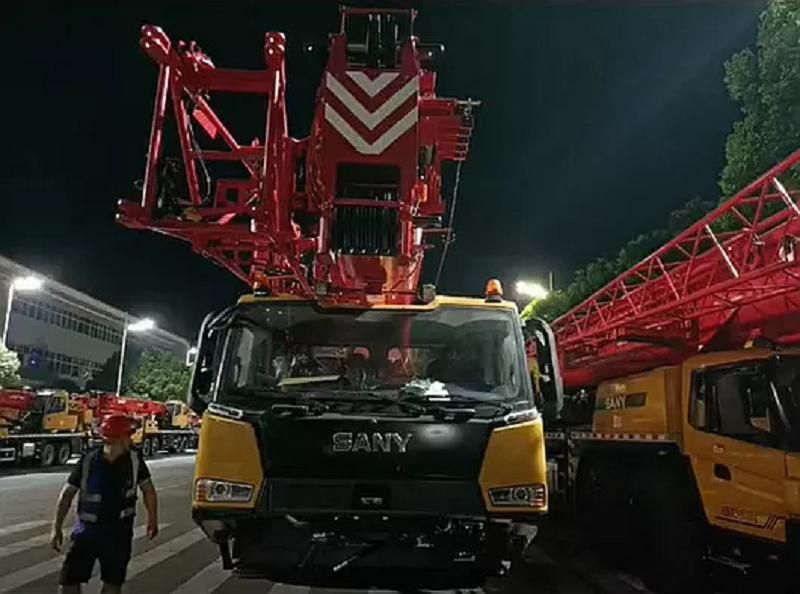

Product Pictures
