• Model NO.：XCA100
• Shaft Number：4
• Crane Jib：Five-Arm
• Type：Straight Arm
• Dimension (Lxwxh)：12100X2980X3530mm
• Overall Weight：48000kg
• Rated Power：149,2100kw
• Transport Package：by Roro, Bulk Cargo or Container Transprot
• Specification：100 Ton
• Trademark：NEWINDU
• Origin：Jiangsu, China
• HS Code：84295100
• Production Capacity：50 Uint, Month

Parameter ItemScaleUnitDimensionsOverall length12100mmOverall width2980mmOverall height3530mmWeightDead weight in travel state48000kg1st axle17750kg2nd axle20750kgPowerengine modelQSB6.7 engine rated output149/2100KW/(r/min)engine rated torque740/1500N.m/(r/min)TravelMax.travel speed≥35km/hMin.turning diameter≤5.5mMin.ground clearance460mmApproch angle25.8°Departure angle21.8°Max.gradeability≥55%Lifting PerformanceMax.total rated lifting load100tMin.rated working radius3mTurning radius at swing table tail4090mmBase boom amx.load moment1690kn.mBase boom10.3mFull-extended boom38.2mFull-extended boom+Jib55mOutrigger longitudinal distance span7mOutrigger lateral distance span7.0/5.8mWorking speedBoom elevating time≤80sBoom telescoping time≤120sMax.swing speed≥2.0r/minMain winch max. speed(on load)≥125m/minAuxiliary winch max. speed(on load)≥125m/min

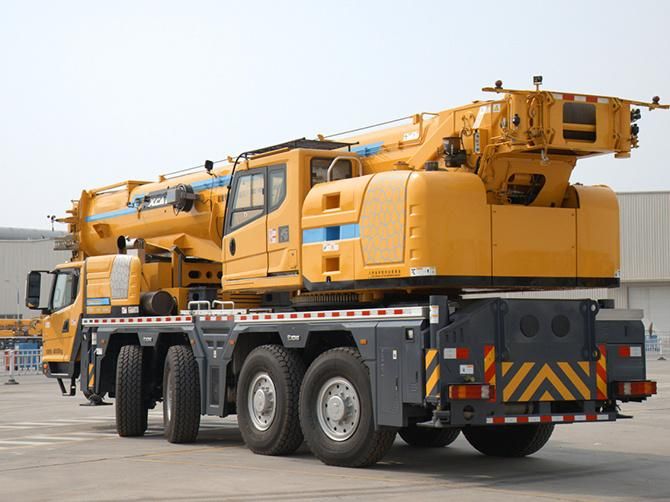

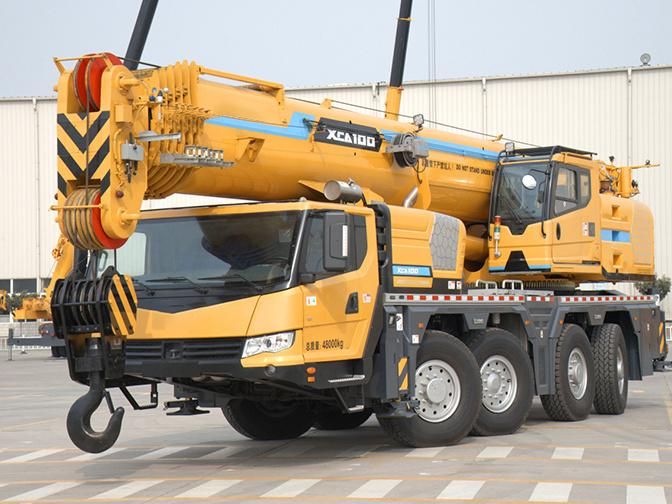

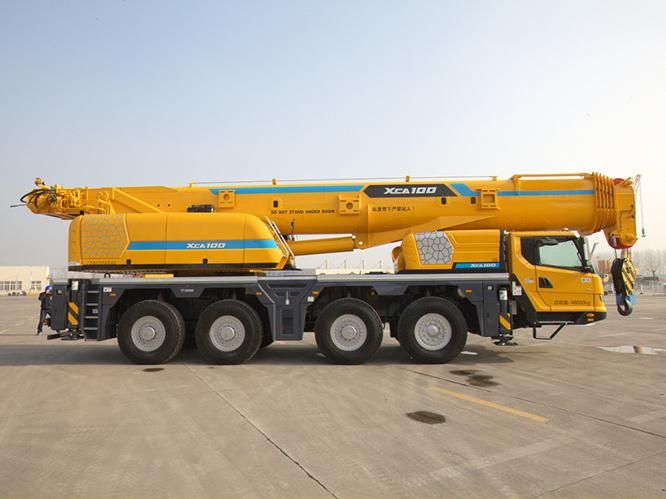

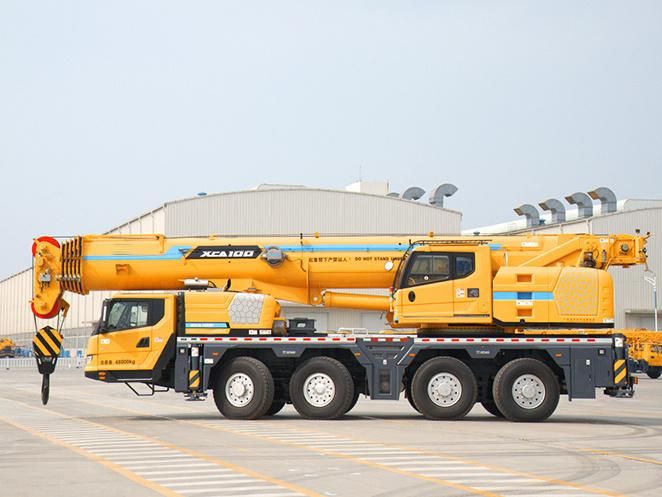

Pictures

Our company

Newindu Construction Engineering (Shanghai) Co., Ltd. is professional in construction machinery for nearly 10 years, exporting with good quality and low price, having excavator, truck crane, bulldozer, wheel loader, motor grader, drilling rig, dump truck, road roller, forklift, reach stacker, and also including the spare parts, etc.
