• Model NO.：ZAT2000
• Shaft Number：3
• Crane Jib：Three-Arm
• Type：Folding
• Max. Lifting Height of Jib：87,(95)M
• Transport Package：Roro,Container,Nude
• Specification：30t
• Trademark：ZOOMLION
• Origin：China
• HS Code：84262000
• Production Capacity：100 Units Per Month

Overview Product Description



• Continuously overall promotion makes our lifting capacity of crane be improved once and once again.
• 43 m main boom , two section jibs (9.5m ,16m).
• Optimized central slewing position increases the lifting capacity of the crane over rear.
• Large outrigger span improves the working stability of the crane greatly,
• Adopt internationally advanced structure analysis and calculation methods to develop the lifting capacity of crane deeply.
• Leading boom manufacturing process in trade.

Product Parameters

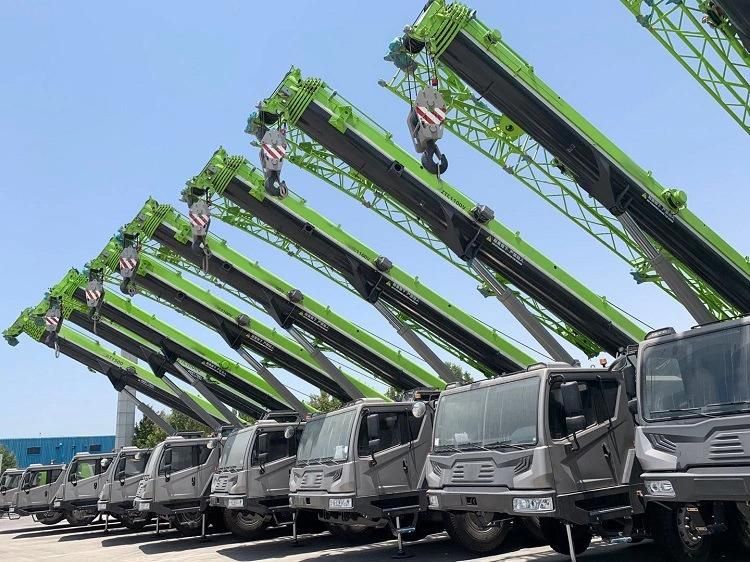

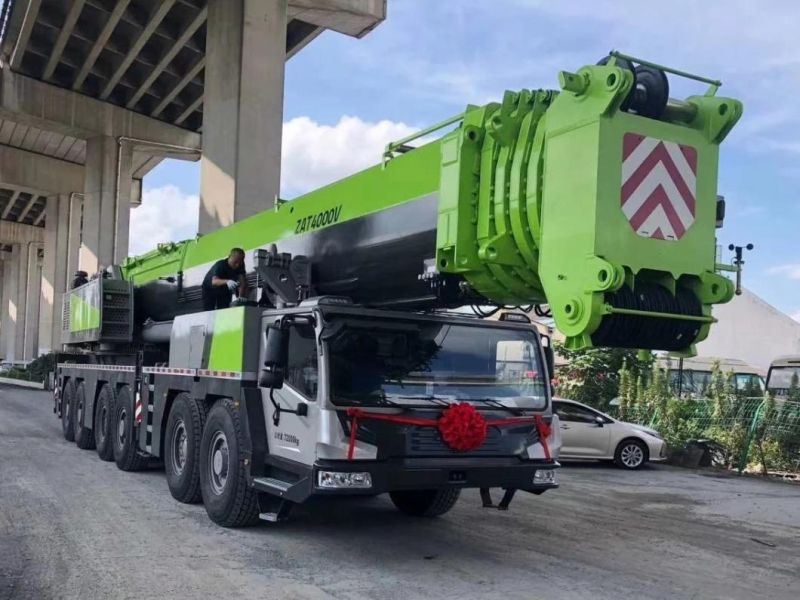

Working performanceMax. rated lifting capacitykg55000Max. load moment of basic boomkN.m2009Max. load moment of main boom(fully extended)kN.m1050Max. load moment of basic boomm12.6Max. lifting height of main boomm43.6Max. lifting height of jibm59.5Working speeds    Max. hoist rope speed(Main winch)m/min120Max. hoist rope speed(Auxiliary winch)m/min120Boom demrricking up times50Boom demrricking up times95Slewing  speedr/min0-2.2DrivingMax. driving  speedkm/h76Max. gradeability%40Turning diameterm≤24Min.  ground clearancemm260Oil consumption per hundred kilometersL43MassDeadweight in driving conditionkg42000Complete vehicle kerb masskg41870Front axle loadkg16000Rear axle loadkg26000DimensionOverall dimensions(L×W×H)mm13700×2800×3650Longitudinal distance between outriggersm5.92Transversal distance between outriggersmFully extended:7.1,Intermediately extended:4.8Tail slewing radiusmm3900Main boom lengthm11.4 - 43.0Main boom angle°-82jib lengthm9.5,16.0Offset°0,30Detailed Photos
