• Model NO.：XCT12L4
• Engine Rated Torque：900,1400 N.M,(R,Min)
• Max. Travel Speed：90 Km,H
• Min. Turning Diameter：18 M
• Transport Package：Comply with Export Packaging Requirements
• Specification：10900*2500*3550mm
• Trademark：XCMG
• Origin：Xuzhou, Jiangsu, China
• HS Code：87051091
• Production Capacity：10000 Units,Year

CategoryItemUnitXCT12L4DimensionOverall lengthmm10900Overall widthmm2500Overall heightmm3550WeightTotal weight in travelkg16000PowerEngine model SC7H230Q4/WP6.220E40Engine rated powerkW/(r/min)170/2300 162/2300Engine rated torqueN.m/(r/min)900/1400 850/1400-1600TravelMax. travel speedkm/h90Min. turning diameterm18Min. ground clearancemm250Approach angle°21Departure angle°13Max. grade ability%41Fuel consumption for 100kmL25Main performanceMax. rated total lifting capacityt12Min. rated working radiusm3Turning radius at turntable tailm2.57Max. lifting torquekN.m482.5Base boomm9.5Max.main boomm30.9Max.main boom+jibm38.1Turning radius at turntable tailCounterweightmm2570Auxiliary winchmm2910Max. load momentBase boomt.m48.25Fully-extended boomt.m27.6Outrigger span(fully-extended)Longitudinalm4.57Hoist heightLateralm5.5Base boomm9.5Fully-extended boomm30.9Boom lengthFully-extended boom + Jibm38.1Base boomm9.45Fully-extended boomm30.5Fully-extended boom + Jibm30.5+7

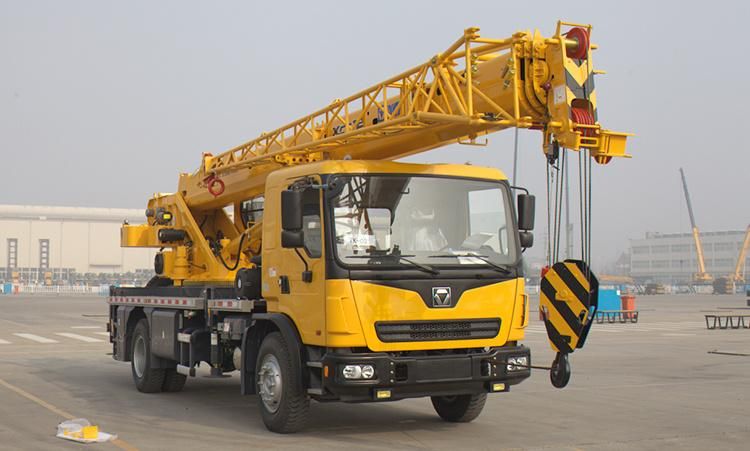

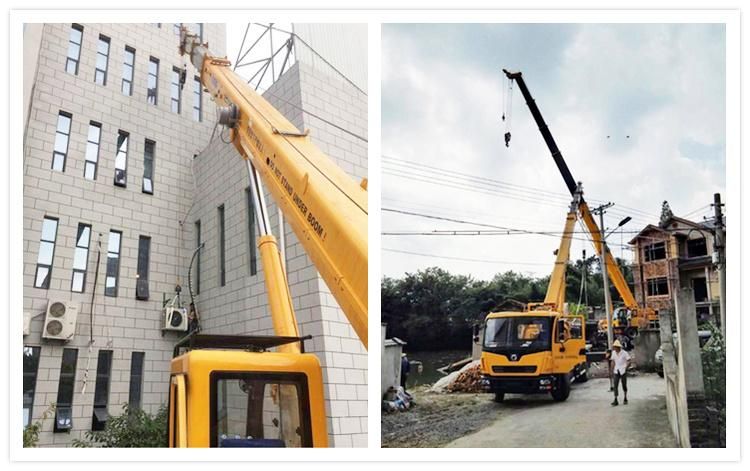

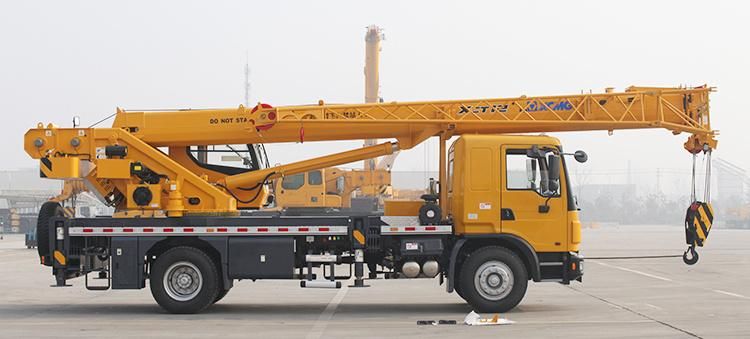

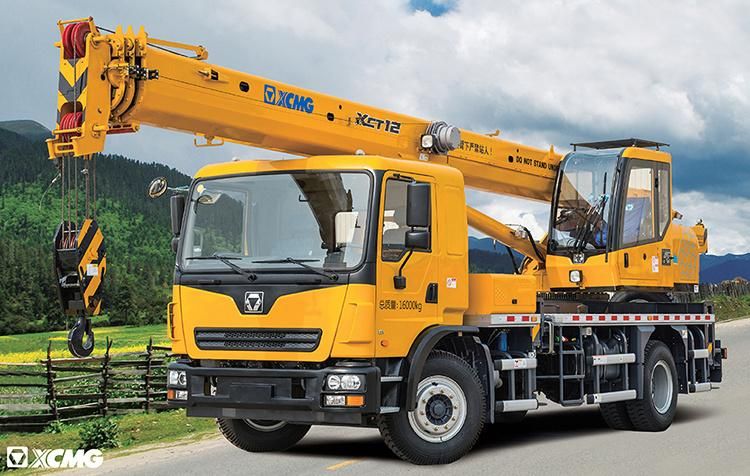

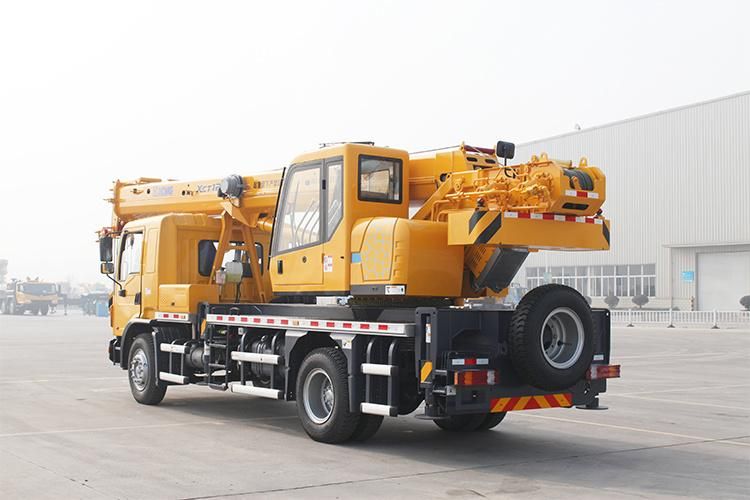

[Product Picture]





[Company Information]







[FAQ]
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
