• Model NO.：5-25 Ton
• Brake：Air Brake
• Color：Customer Requirements
• Max. Lifting Height：25-35m
• Power：15-200kw
• Side Leg Structure：Double Leg
• Transport Package：Standard Export Packaging
• Specification：5-25 ton
• Trademark：NICOSAIL
• Origin：Shandong, China
• HS Code：8705102300
• Production Capacity：50,Month

Basic Info.

Model NO. 5-25 Ton Brake Air Brake Color Customer Requirements Max. Lifting Height 25-35m Power 15-200kw Side Leg Structure Double Leg Transport Package Standard Export Packaging Specification 5-25 ton Trademark NICOSAIL Origin Shandong, China HS Code 8705102300 Production Capacity 50/Month

Product Description

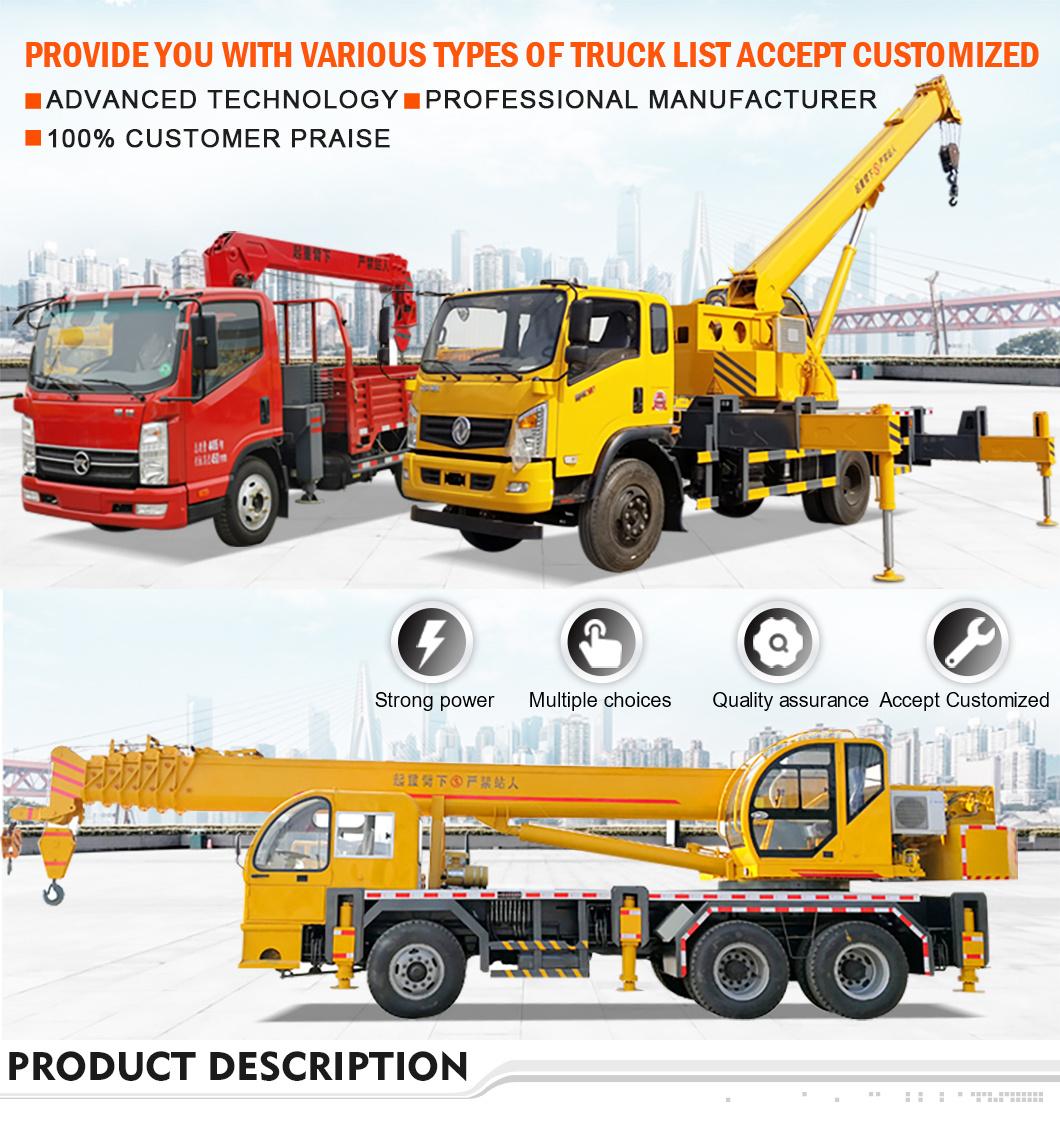

Loading 5/8/10/12/16/20/25 Tons Boom Arm 4x4 Crane Hydraulic Truck Cranes Price

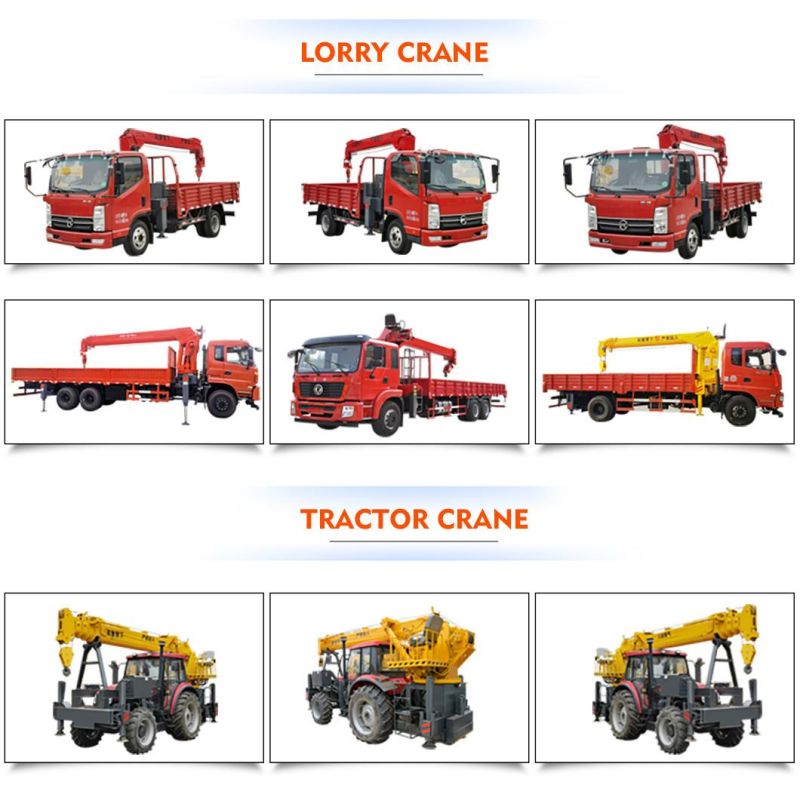

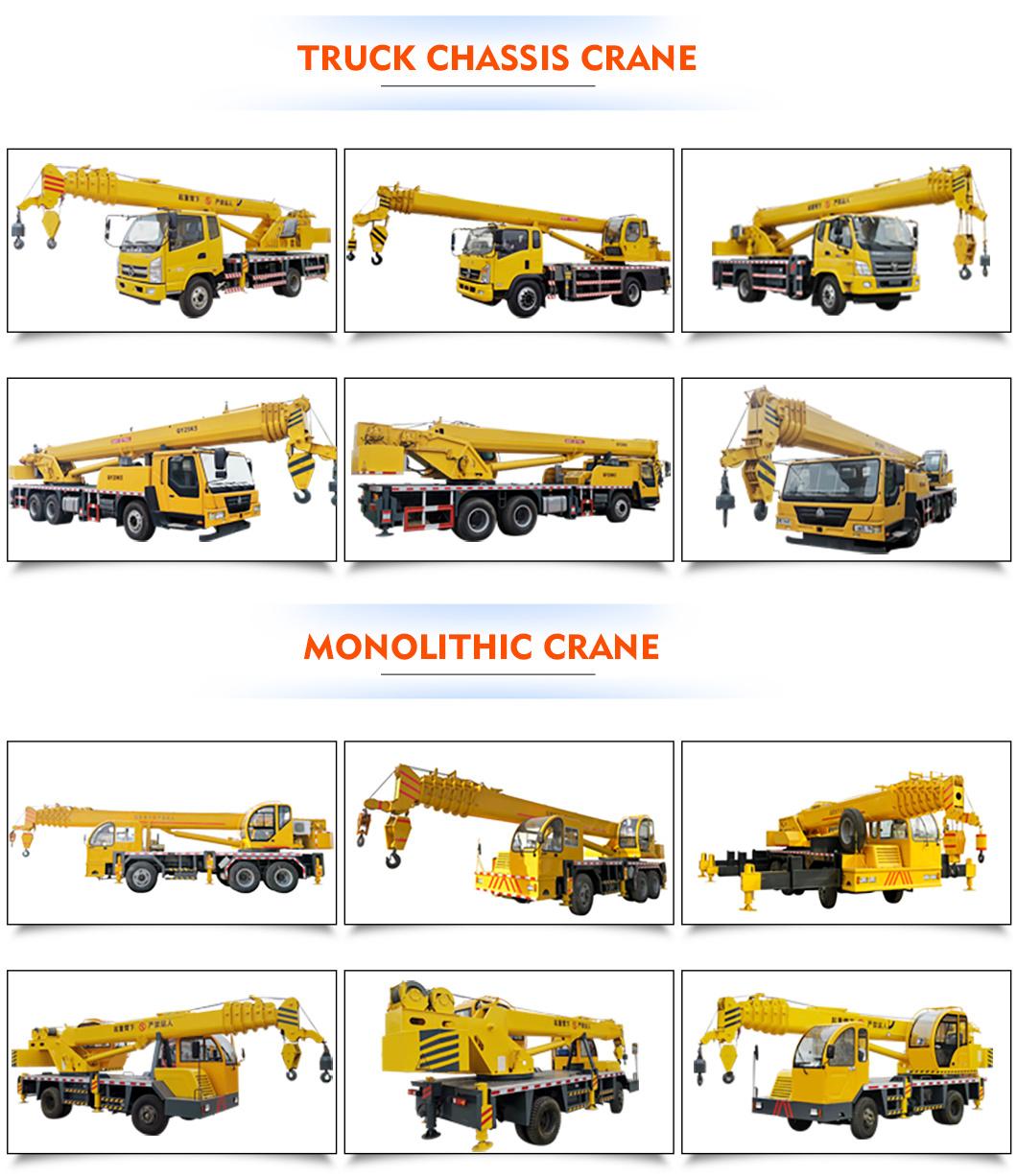

Hydraulic mobile truck crane is a kind of lifting and handling machinery widely used in ports, workshops, electric power, construction sites and other places. The name of the crane is the uniform title for lifting appliances. The main cranes are usually Truck chassis crane, Monolithic crane, Lorry crane. The usefulness of cranes is lifting equipment, emergency rescue, lifting, machinery, and rescue.
From 5ton to 25ton is available, also can produce Customized according to your requirements.
1.Leading lifting performance and traveling performance.
2.Mature and reliable double pump confluence technology, highest hoisting, elevating and telescoping efficiency in the industry.
3.Improved reliability of radiation and electric systems, safer lifting and driving operation
4.Air-assisting shift gears bring more comfortable operation
5.New upgraded outline and humanized design, more comfortable driving operation.

Parameter

Model	OKT-8T	OKT-10T	OKT-12T	OKT-16T	25T
Rated elevating capacity	8000kg	10000kg	12000KG	16000KG	25000KG
Max. Lifting Height	25m	27m	27 m	33M	34m
Power	64kw	95kw	15kw	18.5kw (optional)	196kw
Throttle	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic
Speed	55km/h	75km/h	88Km/h	85Km/h	/
Tyres	750-16LT	8.25-16	825R20	900R20	1100-20
Wheelbase	3200mm	3800mm	3815mm	4400mm	4300/5700mm
Brake	air brake	air brake	Air brake	Air brake	Air brak

CHARACTERISTICS1. Our truck crane, which is developed independently to adapt to the market demands, is a new-generation and high-performance product integrating our company many years' manufacturing experience with advanced technologies. Its performances such as lifting height, boom length, working speed and lifting capacity have achieved advanced international level.
2. The truck crane, with spacious cab and compact decoration, adopts full slewing system, 4-section telescopic boom sections, hydraulic proportional control system and self-made full-width special purpose chassis with three axles.
3. The system with latest load feedback hydraulic operated proportional directional control valve and quadruple gear pump, and the safety devices fitted in hydraulic system, such as relief valve, balance valve, hydraulic lock and brake valve etc., prevents the oil line from overloading and the accidents caused by oil pipe breakage and makes full use of the working capacity of each actuating mechanism. Thus the reliability and safety of the crane are increased.
4. The safety devices such as load moment limiter, and the complete lighting system equipped in the crane ensure your safety during operation and are convenient for night work.
