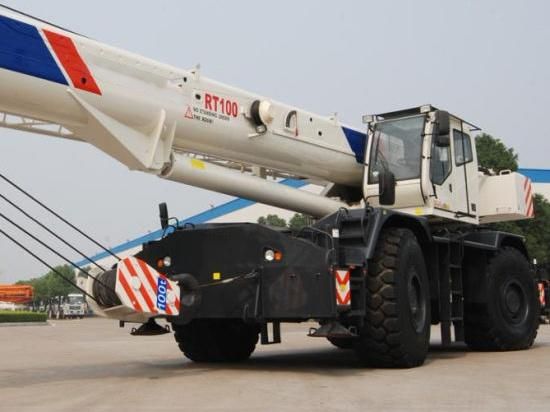

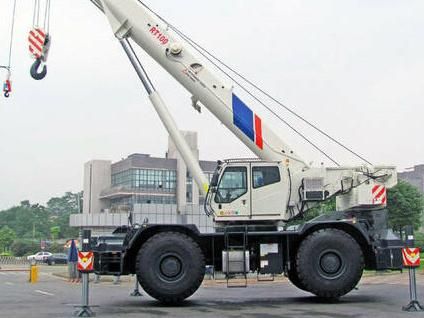

• Model NO.：RT100
• Shaft Number：3
• Crane Jib：Five-Arm
• Type：Straight Arm
• Max. Load Moment of Basic Boom：3339kn.M
• Max. Load Moment of Fully Extended Main：1388kn.M
• Max. Lift Height of Fully Extended Main：45.6m
• Max. Lift Height of Jib：63m
• Main Boom Length：10800-34000mm
• Jib Length：10000-17000mm
• Max. Hoist Rope Speed (Main Winch)：126m,Min
• Min. Boom Extend Time：170s
• Min. Boom Retract Time：158s
• Min. Boom De-Rri-Ck up Time：82s
• Min. Boom De-Rri-Ck Down Time：69s
• Swing Speed：0-1.5r,Min
• Rated Work Pressure：30MPa
• Rated Work Oil Flow：500L,Min
• Hydraulic Oil Tank Capacity：1200L
• Transport Package：Nude Packing
• Specification：RT35
• Trademark：Truck crane
• Origin：Jiangsu, China
• HS Code：8705109200
• Production Capacity：1000 Unit,Units Per Month

Product OverviewProduct ParamentersItemUnitValueWork performanceMax. rated lift capacity × work radiuskg.m100000×3.0Max. load moment of basic boomkN.m3339Max. load moment of fully extended main boomkN.m1388Max. lift height of fully extended main boomm45.6Max. lift height of jibm63DimensionsOverall dimensions(L×W×H)mm14247×3620×3960Outrigger spread (L×W)mm8000×7900

Main boom length

(Fully retracted fully extended)

mm10800-34000

Jib length

 (Jib section 1,jib sections 1+2)

mm10000-17000Boom angle°-3 - 78Swing range°

360       360°

unlimited swing

(Full range)

Work Speeds

Max. hoist rope speed

 (Main winch)

m/min126Min. boom extend times170Min. boom retract times158Swing speedr/min0-1.5Hydraulic systemRated work pressureMPa30Rated work oil flowL/min500Hydraulic oil tank capacityL1200MassComplete vehicle masskg65000Front axle loadkg33200Rear axle loadkg31800Travel

Max. travel speed

(Forwarsd / backwards)

km/h24/15Wheelbasemm4600Treads (Front / rear)mm2860
