Hydraulic Knuckle Boom Truck Mounted Crane for Sale Sq5za2

XUZHOU BOB-LIFT CONSTRUCTION MACHINERY CO., LTD.

Condition：New
Maximum Lifting Height：10-15m

Base Info

Model NO.：SQ5ZA2
Maximum Lifting Weight：5-7t
Shaft Number：N,a
Crane Jib：Two-Arm
Color：According to Customer Requirements
Working Radius：8.05m
Boom Type：Hydraulic and Knuckle Boom
Tip Load：1100kg
Oil Tank Capacity：100L
Product Name：Hydraulic Knuckle Boom Truck Mounted Crane for Sal
Rotation Angle：400
Self Weight：1850 Kg
Material：Hq60,Hq70,Q345
Warranty：12 Months
Transport Package：Wooden
Specification：2600*890*2303mm
Trademark：BOB-LIFT
Origin：Made in China
HS Code：842691000
Production Capacity：120 Sets,Month

Description

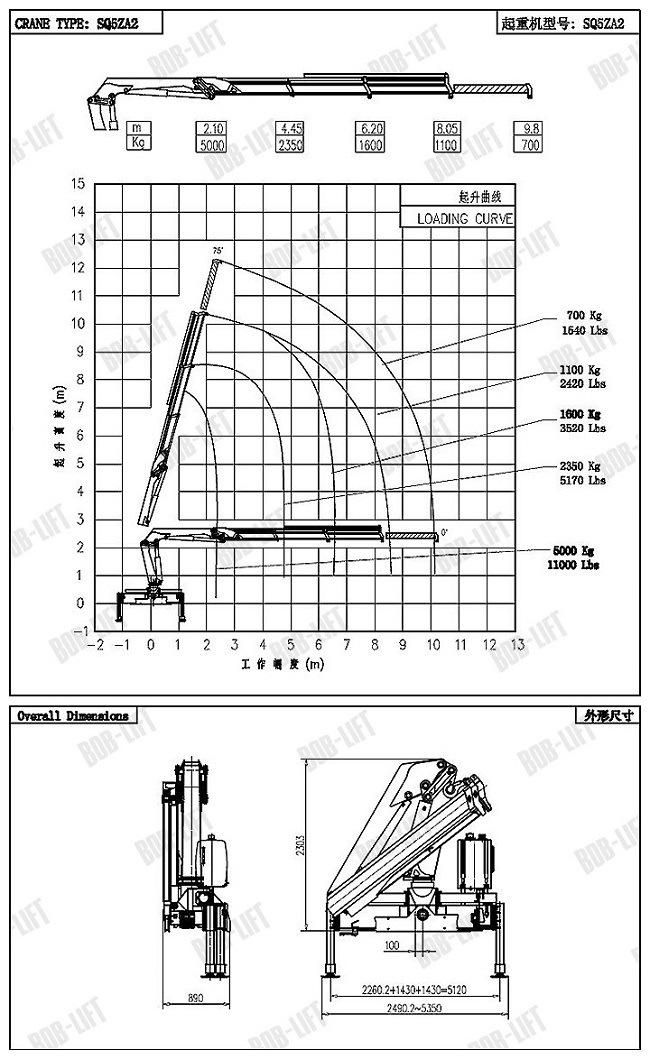

truck mounted craneMax lifting capacityton5Max lifting momentton.m10.5Recommend powerKW22Hydraulic system flowL/Min35Hydraulic system pressureMpa20Oil tank capacityL100Installation spacemm1050Self weightkg1850Rotation angle°4002).Technical drawings
Hydraulic Knuckle Boom Truck Mounted Crane for Sale Sq5za2

Hydraulic Knuckle Boom Truck Mounted Crane for Sale Sq5za2

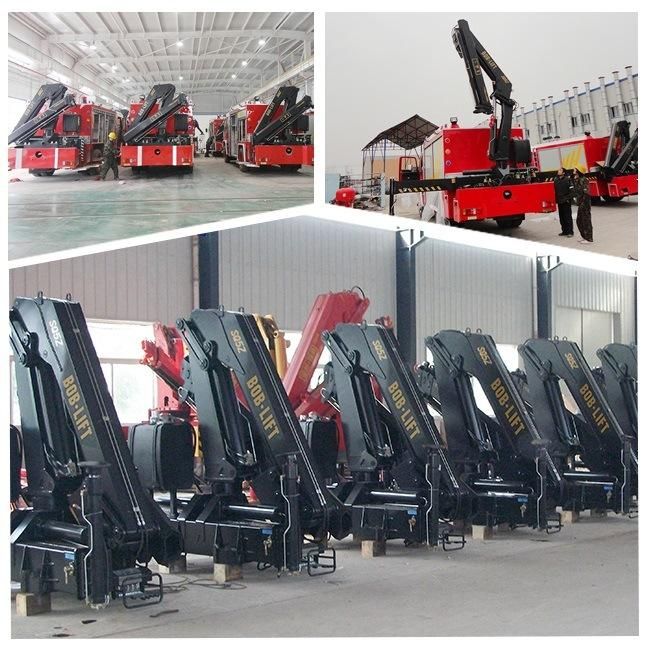

3).Product photos
Hydraulic Knuckle Boom Truck Mounted Crane for Sale Sq5za2

Hydraulic Knuckle Boom Truck Mounted Crane for Sale Sq5za2

4).Shipping details
Hydraulic Knuckle Boom Truck Mounted Crane for Sale Sq5za2

Hydraulic Knuckle Boom Truck Mounted Crane for Sale Sq5za2

5).Certificates
Hydraulic Knuckle Boom Truck Mounted Crane for Sale Sq5za2

Hydraulic Knuckle Boom Truck Mounted Crane for Sale Sq5za2

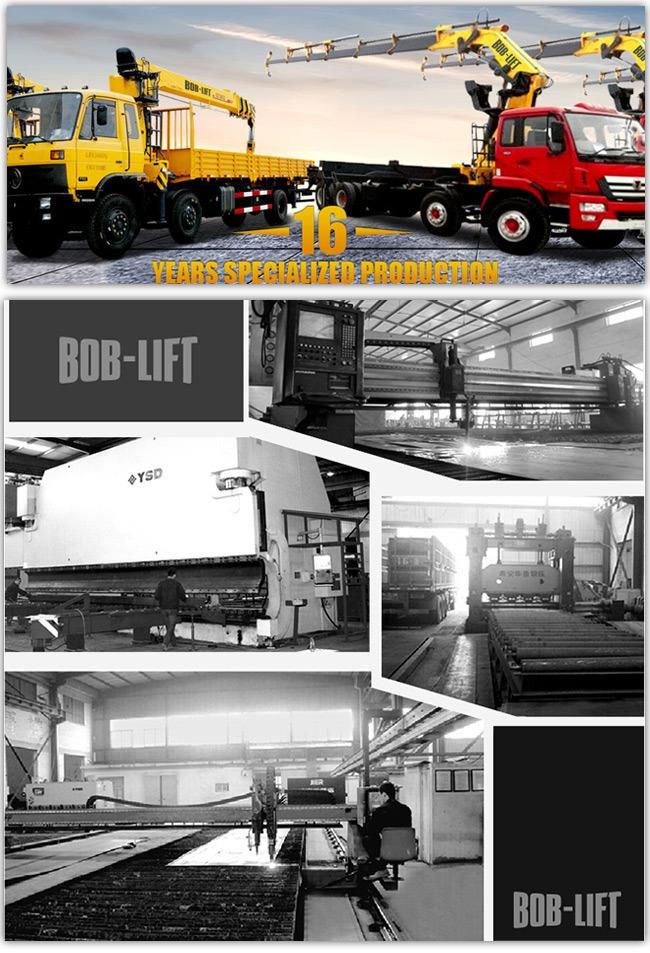

6).Our factory
Hydraulic Knuckle Boom Truck Mounted Crane for Sale Sq5za2

Hydraulic Knuckle Boom Truck Mounted Crane for Sale Sq5za2

Hydraulic Knuckle Boom Truck Mounted Crane for Sale SQ5ZA2

Category

Recommended

2020 Top Quality Mobile Crane Truck Crane Stc250
Parameter of STC250 25ton Truck CraneModelSTC250SLifting load(T)25TBoom43.5Lifting height (M)79mSwing radius360°Outrigger span12.2MFullyextendingMin workingradius(75°)5.176mMax workingradius(45°)43.5MDead weight in working25 tonsDimension12.85m *2.50m *3.65mEngine model4D*23-130E3Power t
Wholesale 25t Mobile Crane with Cheap Price
Parameter of STC250 25ton Truck CraneModelSTC250SLifting load(T)25TBoom43.5Lifting height (M)79mSwing radius360°Outrigger span12.2MFullyextendingMin workingradius(75°)5.176mMax workingradius(45°)43.5MDead weight in working25 tonsDimension12.85m *2.50m *3.65mEngine model4D*23-130E3Power t
25 Ton New Small Truck Crane Made in China
Parameter of STC250 25ton Truck CraneModelSTC250SLifting load(T)25TBoom43.5Lifting height (M)79mSwing radius360°Outrigger span12.2MFullyextendingMin workingradius(75°)5.176mMax workingradius(45°)43.5MDead weight in working25 tonsDimension12.85m *2.50m *3.65mEngine model4D*23-130E3Power t
25t Hydraulic Truck Crane Stc250 New Pickup Truck Crane
Parameter of STC250 25ton Truck CraneModelSTC250SLifting load(T)25TBoom43.5Lifting height (M)79mSwing radius360°Outrigger span12.2MFullyextendingMin workingradius(75°)5.176mMax workingradius(45°)43.5MDead weight in working25 tonsDimension12.85m *2.50m *3.65mEngine model4D*23-130E3Power t
Remote Control Wire Rope Hoist Gantry Crane with Best Price
BrandProduct NameCertificationColorWorking ClassDingya CraneSingle/Double Girder Gantry CraneCE,ISOYellow,RedA3--A5

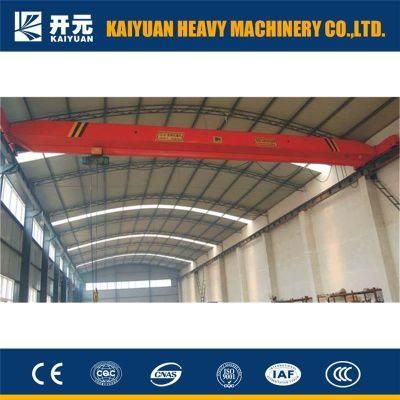

Single Girder Suspending Type Overhead Crane with Good Quality
Lifting Capacity (t)0.5, 1, 2, 3, 5, 10Span (m)3~16Crane Traveling MechanismTraveling Speed (m/min)20/30Motor0.5-3tZDY21-4/0.4kw*2n=1380r/min5-10tZDY21-4/0.8kw*2n=1380r/minLifting MechanismElectric HoistModelCD/MDLifting Speed (m/min)0.5t-5t8, 0.8/810t7, 0.7/7Lifting Height (m)6, 9, 12, 18, 24, 30Tr
16/32 Ton Single Girder Suspending Type Overhead Crane for Sale
Lifting Capacity (t)0.5, 1, 2, 3, 5, 10Span (m)3~16Crane Traveling MechanismTraveling Speed (m/min)20/30Motor0.5-3tZDY21-4/0.4kw*2n=1380r/min5-10tZDY21-4/0.8kw*2n=1380r/minLifting MechanismElectric HoistModelCD/MDLifting Speed (m/min)0.5t-5t8, 0.8/810t7, 0.7/7Lifting Height (m)6, 9, 12, 18, 24, 30Tr

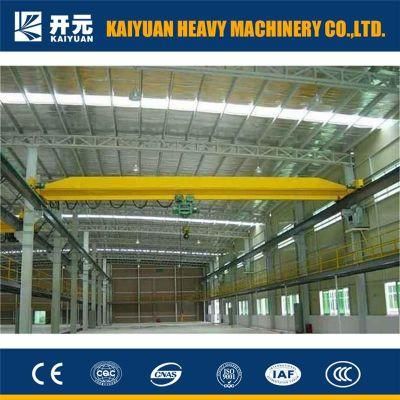

Kaiyuan Insulation Overhead Crane for Sale
