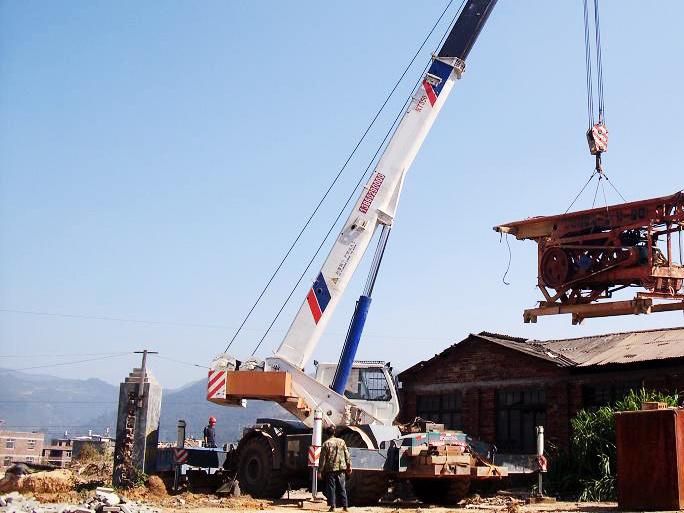

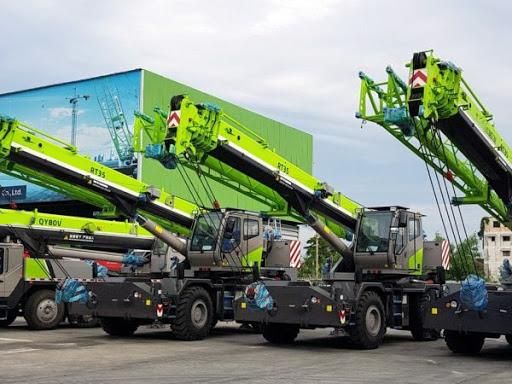

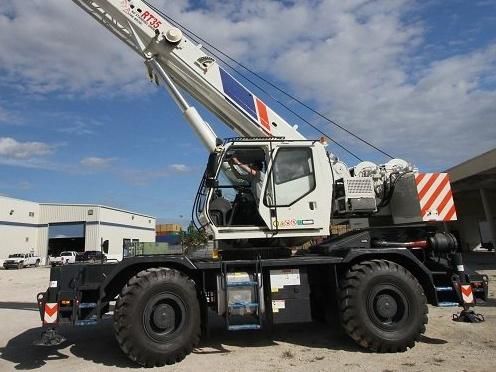

Rough Terrain Crane 35 Ton Rt35 at a Nice Price
Cruking Engineering Equipment (Xiamen) Co., Ltd.- After-sales Service:Video Technical Support, Online Support
- Warranty:1 Year
- Certification:CE, ISO9001
- Condition:New
- Maximum Lifting Height:50m
- Maximum Lifting Weight:35 Ton
Base Info
- Model NO.:RT35
- Shaft Number:3
- Crane Jib:Five-Arm
- Type:Straight Arm
- Max. Rated Lifting Weight:35000 Kg
- Max. Lifting Moment of Basic Boom:1344kn.M
- Max.Lifting Moment of Longest Boom:870kn.M
- Max. Lifting Height of Longest Boom:31 M
- Max. Lifting Height of Jib:46m
- Outline Dimensions:11935*2980*3600mm
- Boom Extension Time:70s
- Boom Retraction Time:75 S
- Boom Derricking up Time:46 S
- Swing Speed:0~2.5r,Min
- Rated Working Pressure:27MPa
- Rated Working Flow:400L,Min
- Hydraulic Oil Tank Capacity:600L
- Complete Vehicle Kerb Mass:32000kg
- Front Axle Load:15030kg
- Transport Package:Nude Packing
- Specification:RT35
- Trademark:Truck crane
- Origin:Jiangsu, China
- HS Code:8705109200
- Production Capacity:1000 Unit,Units Per Month
Description
Product OverviewProduct ParamentersType Item Unit Value Working performance Max. rated lifting weight × working radius kg.m 35000×3.0 Max. lifting moment of basic boom kN.m 1344 Max.lifting moment of longest boom kN.m 870 Max. lifting height of longest boom m 31 Max. lifting height of jib m 46 Dimensions Outline dimensions (L×W×H) mm 11935×2980×3600 Distance between outriggers (Longitudinal × transversal) mm 6810×6800 Main boom length (completely retracted - completely extended) mm 9800~31000 Jib length (completely retracted - completely extended) mm 9088~15028 Main boom angle of elevation ° -3~78 Swing range 360°continuously Working speed Max.speed of single rope on the drum of main winch m/min 150 Boom extension time s 70 Boom retraction time s 75 Boom derricking up time s 46 Boom derricking down time s 47 Swing speed r/min 0~2.5 Hydraulic system Rated working pressure MPa 27 Rated working flow L/min 400 Hydraulic oil tank capacity L 600 Mass Complete vehicle kerb mass kg 32000 Front axle load kg 15030 Rear axle load kg 16970 Traveling Max. traveling speed (forwards / backwards) km/h 38/15 Wheelbase mm 3820 Treads (front / rear) mm 2444 Max. gradeability % 57 Min. turning radius (outer edge of the vehicle body) m 6.5 Min. turning radius (2 wheels) m 11.25
