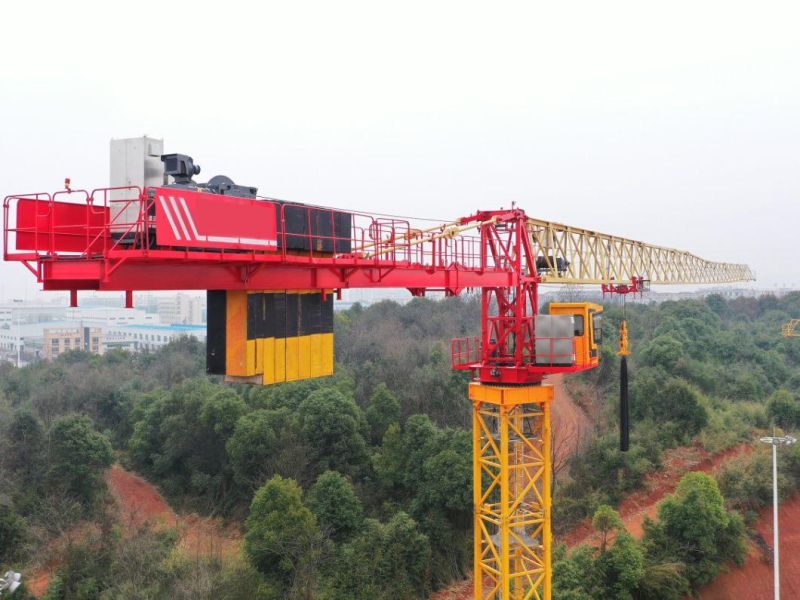

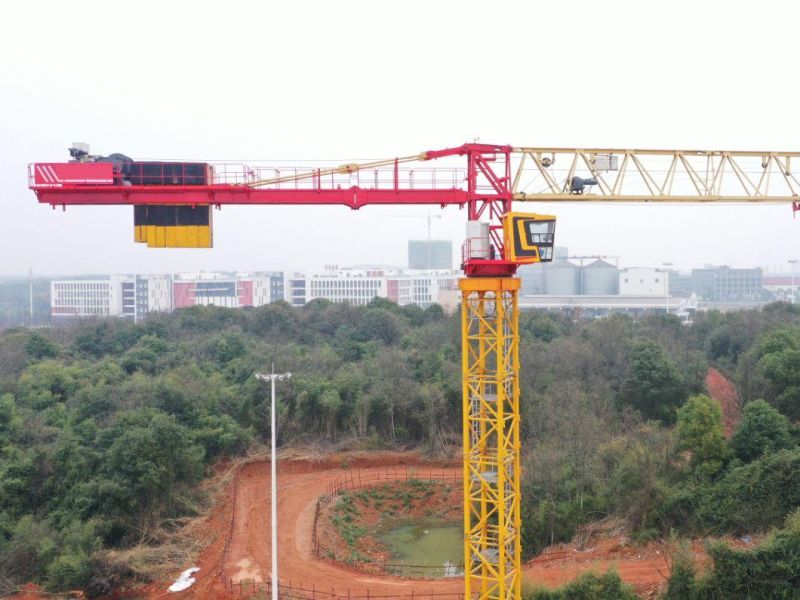

Good Working Condition 10 Ton Lifting Capacity Tower Crane Sft160
Cruking Engineering Equipment (Xiamen) Co., Ltd.- After-sales Service：Video Technical Support, Online Support
- Warranty：1 Year
- Certification：CE, ISO9001
- Condition：New
- Maximum Lifting Height：47m
- Maximum Lifting Weight：10 Ton
Base Info
- Model NO.：SFT160
- Installation：Assembled
- Moving Type：Orbital
- Type：Top-Slewing Crane
- Application：Construction
- Power Frequency：50Hz
- Power Voltage：380V
- Free Standing Height：47m
- Max Jib Length：65m
- Max Lifting Capacity：10t
- Max Lifting Moment：160t.M
- The Max Height Under Hook：268.2m
- Tip Load at Max Jib Length：1.8t
- The Power of Hoisting Mechanism：45kw
- The Power of Luffing Mechanism：5.5kw
- The Power of Slewing Mechanism：2X5.5kw
- The Speed of Hoisting Mechanism：0-100r,Min
- The Speed of Luffing Mechanism：0-60r,Min
- The Speed of Slewing Mechanism：0-0.7r,Min
- Transport Package：Nude Packing
- Specification：TC300A
- Trademark：Tower crane
- Origin：Jiangsu, China
- HS Code：8426200000
- Production Capacity：1000 Unit,Units Per Month
Description
Product OverviewProduct Paramenters0-0.7r/min
