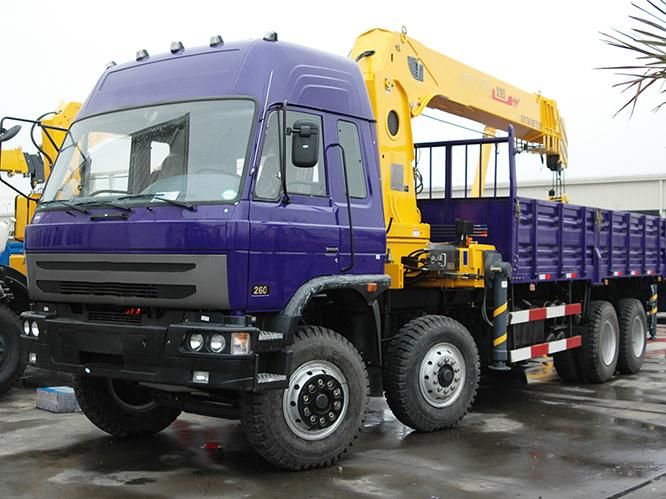

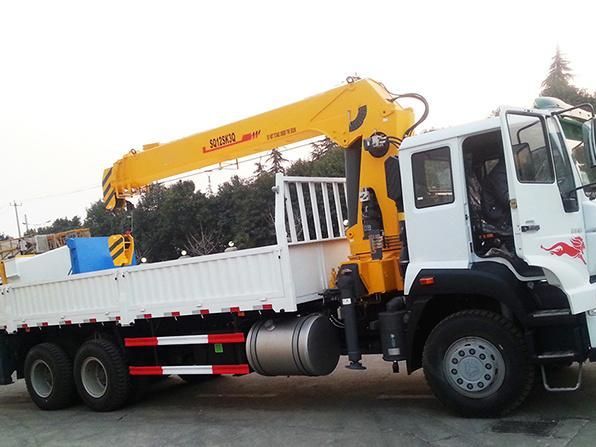

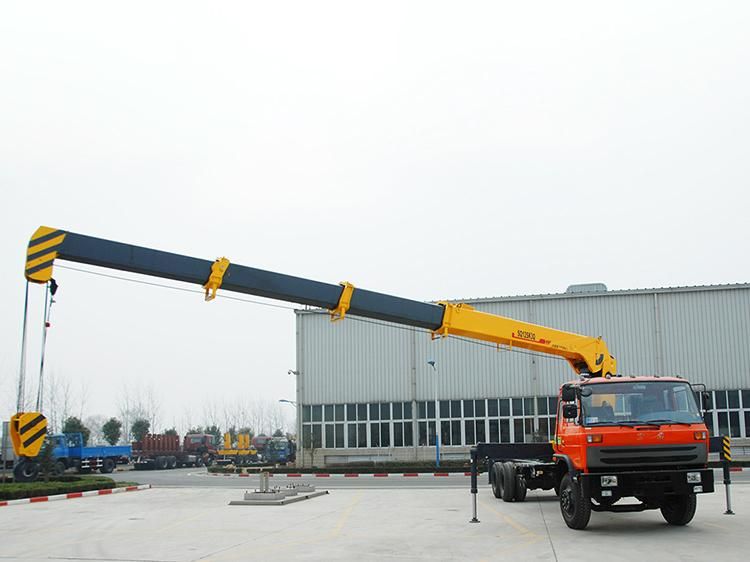

Official 12 Ton Truck Mounted Crane with Foldable Arm Sq12zk3q

Cruking Engineering Equipment (Xiamen) Co., Ltd.
  • After-sales Service：Video Technical Support, Online Support
  • Warranty：1 Year
  • Certification：CE, ISO9001
  • Condition：New
  • Maximum Lifting Height：<10m
  • Maximum Lifting Weight：12 Ton

Base Info

  • Model NO.：SQ12ZK3Q
  • Shaft Number：3
  • Crane Jib：Five-Arm
  • Type：Straight Arm
  • Application：Construction
  • Rated Lifting Moment：30t.M
  • Span：5.272m
  • Weight：4130 Kg
  • Max Lifting Moment：30 T.M
  • Max Lifting Capacity：12000 Kg
  • Oil Tank Capacity：160L
  • Rotation Angle：(360deg)All Rotation
  • Installation Space：1400mm
  • Extension Length：9780mm
  • Crane Weight：4130kg
  • Rated Pressure of Hydraulic System：30 MPa
  • Max Oil Flow：55L,Min
  • Max. Lifting Height：9.78m
  • Working Radius：7.9m
  • Transport Package：Nude Packing
  • Specification：SQ12ZK3Q
  • Trademark：Truck crane
  • Origin：Jiangsu, China
  • HS Code：8705109200
  • Production Capacity：1000 Unit,Units Per Month

Description

Product OverviewProduct ParamentersModelSQ12ZK3QUnitMax Lifting Moment30t.mMax Lifting Capacity12000kgRecommend Power Needed At Recommend Oil Flow32kwMax Oil Flow of Hydraulic System55L/minRated Pressure Of Hydraulic System30MPaOil Tank Capacity160LRotation Angle(360°)All Rotation°Crane Weight4130kgInstallation Space1400mmChoice of ChassisDFL1250A9 ; DFL1311A3 ; CA1240PK2L7T4EA81; EQ5201GFJ6; BJ1317VNPJJ-S5; BJ5253ZKPJJ; DFL1253AX;SQ12ZK3Q Lifting capability diagramWorking radius (m)2.54.26.027.99.78Lifting capacity (kg)120006900456034102650Product Configuration
