• Model NO.：XCT30E
• Type：Straight Arm
• Max. Lifting Height：41.5m
• Rated Lifting Moment：962kn.M
• Span：5.3m * 6.2m
• Transport Package：Nude Packing by Roro Shipment
• Specification：30ton
• Trademark：Newindu
• Origin：China
• HS Code：8705109100
• Production Capacity：100sets,Month

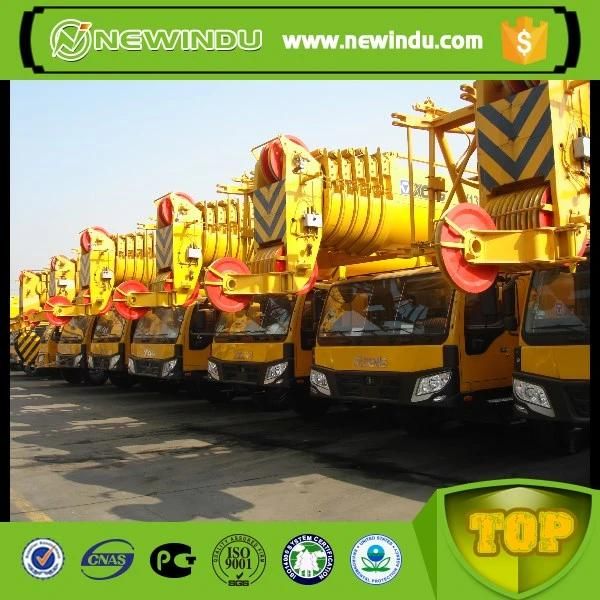

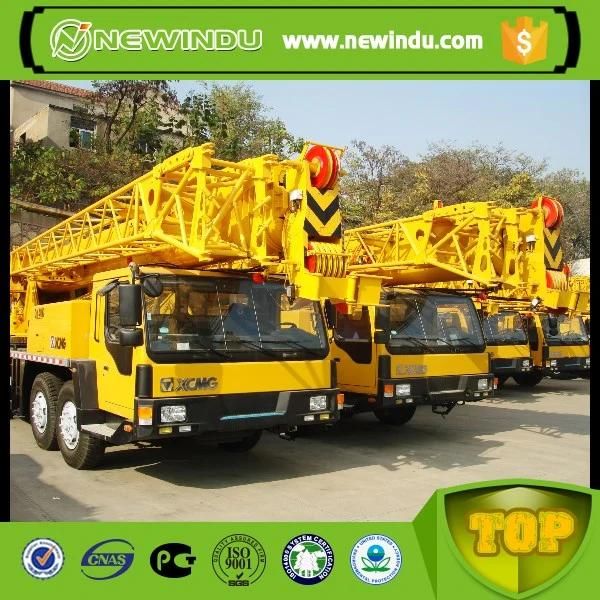

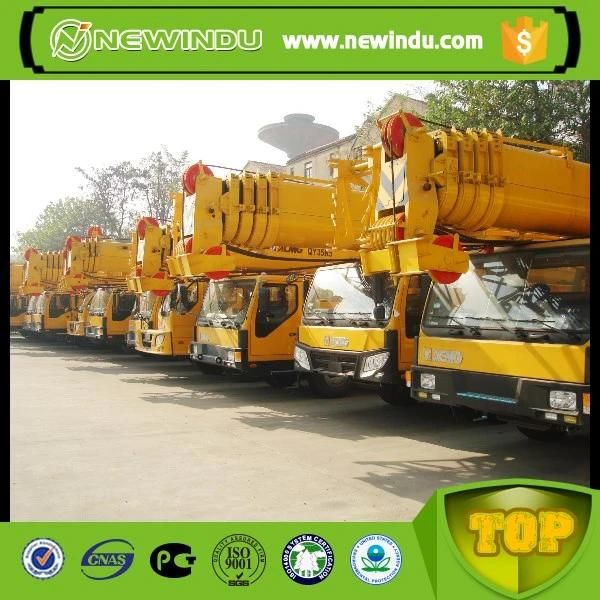

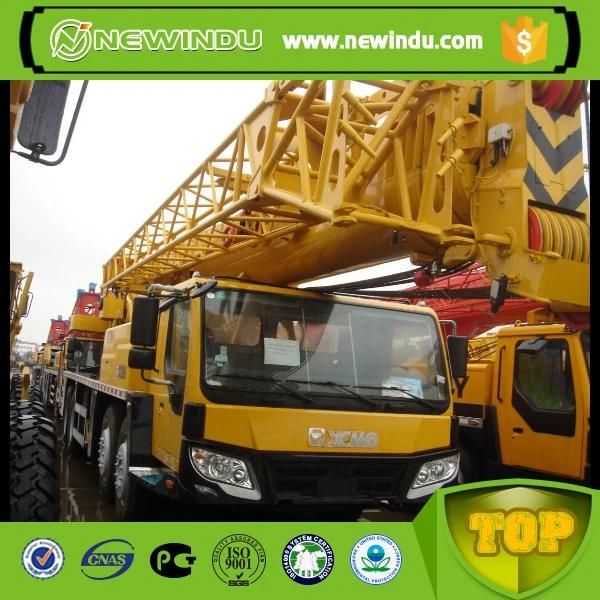

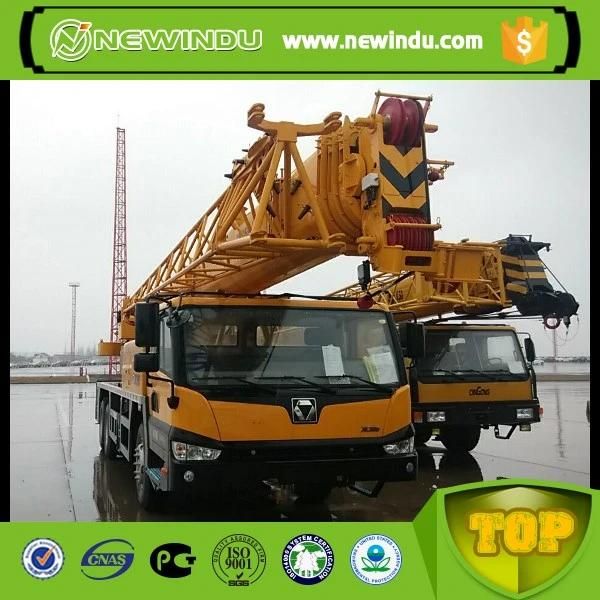

DimensionsUnit Overall lengthMm12740Overall widthMm2500Overall heightMm3480Weight  Dead weight in travel stateKg33490Front axle loadKg7900Rear axle loadKg25590Power  Engine model SC8DK280Q3 SC9DF300Q3 WD615.329Engine rated outputKw(r/min)206/2200 221/2200 213/2200Engine rated torqueN.m(r/min)1112/1400 1250/1400 1160/1100-1600Travel  Max.travel speedKm/h80Min. turning diameterM22Min. ground clearanceMm290Approach angle.20Departure angle.16Max. gradeability%≥40Fuel consumption of per 100kmL≈37Lifting performance  Max. total rated lifting loadT30Min. rated working radiusM3Turning radius at swing table tailMm3270Base boom max. load momentKn.m1128Base boomM10.6Full-extend boomM41Full-extend boom+Jibm49.3Outrigger longitudinal distance spanM5.65Outrigger lateral distance spanM6.0/4.8Working speed  Boom elevating timeS68Boom telescoping timeS165Max. slewing speedr/min2.5Main winch max. speed(single line)m/min120Auxiliary winch max.speed(single line)m/min120Product photos
