Cheap Qy110K Motor Truck Crane Hot Sale

Newindu Construction Engineering (Shanghai) Co., Ltd.

Certification：ISO9001
Condition：New
Maximum Lifting Height：10-15m
Maximum Lifting Weight：>16t
Shaft Number：3
Crane Jib：Three-Arm

Base Info

Model NO.：QY110K
Type：Straight Arm
Max. Lifting Height：59m
Rated Lifting Moment：1774kn.M
Span：6*7.2m

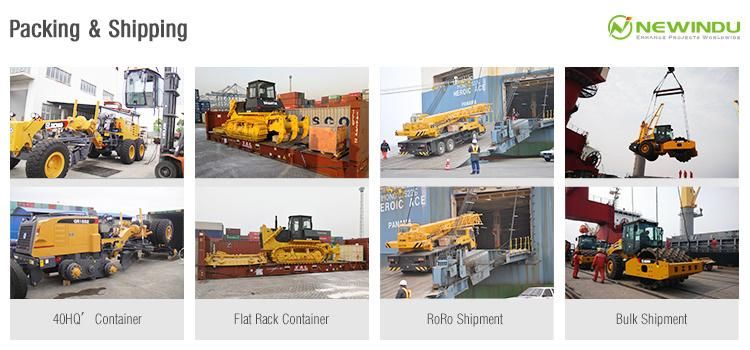

Transport Package：Nude Packing by Roro Shipment
Specification：110ton
Trademark：Newindu
Origin：China
HS Code：8705109100
Production Capacity：100sets,Month

Description

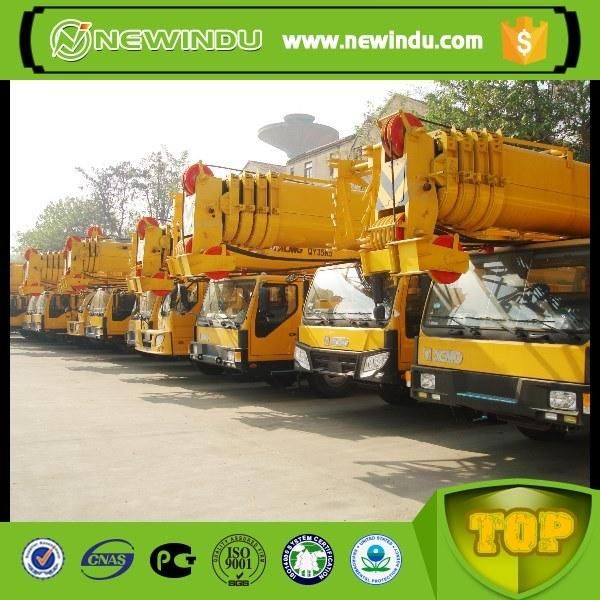

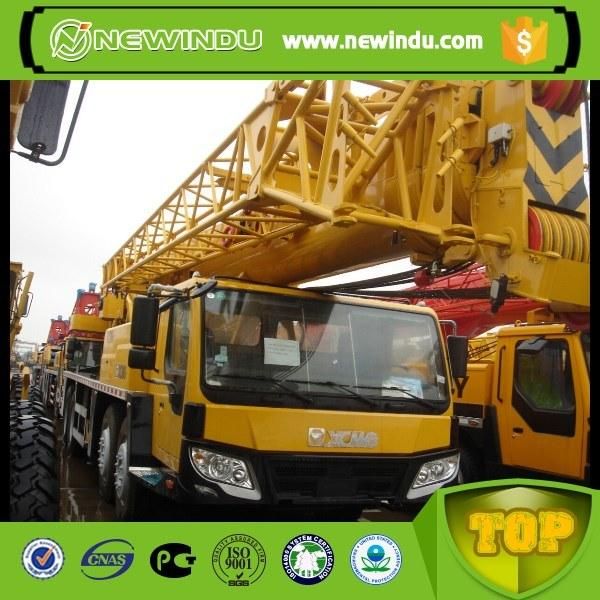

DimensionUnitQY110KOverall lengthmm14800/15270Overall widthmm3000Overall heightmm3920Weight Total weight in travelkg54900/58000Front axle load (axle 1, 2, 3)kg7500/7500/8300(9000)Rear axle load (axle 4, 5)kg12000(13000)12000(13000)/7600(8000)Power Engine model OM906LA/OM460LAEngine rated powerkW/(r/min)162/2100 360/1800Engine rated torqueN.m/(r/min)1054/1500 2200/1300Travel Max. travel speedkm/h80Min. turning diameterm24Min. ground clearancemm300Approach angle°20Departure angle°14Max. grade ability%40Fuel consumption for 100kmL75Main performance Max. rated total lifting capacityt110Min. rated working radiusm3Turning radius at turntable tailm4.51Max. lifting torquekN.m4233Base boomm12.8Fully extended boomm58Fully extended boom+ jibm76.1Longitudinal outrigger spanm7.56Lateral outrigger spanm7.6(5.2)Working speed Boom luffing times60Boom full extension times600Max. swing speedr/min1.9Max. speed of main winch (single rope) (no load)m/min≥105Max. speed of aux. winch (single rope) (no load)m/min≥105Product photos

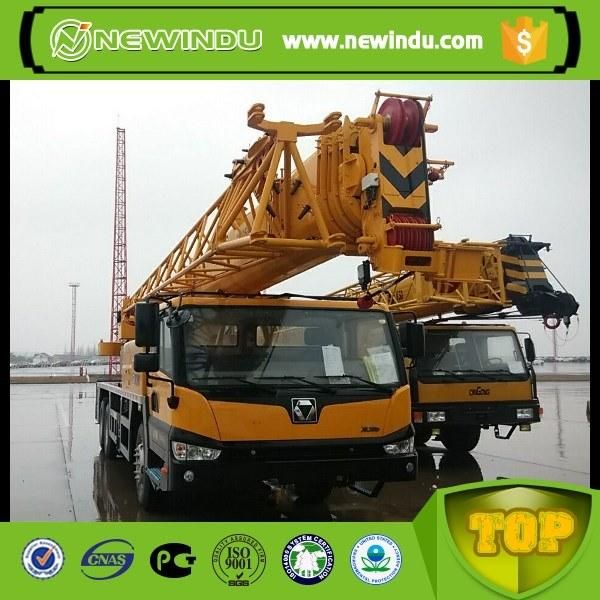

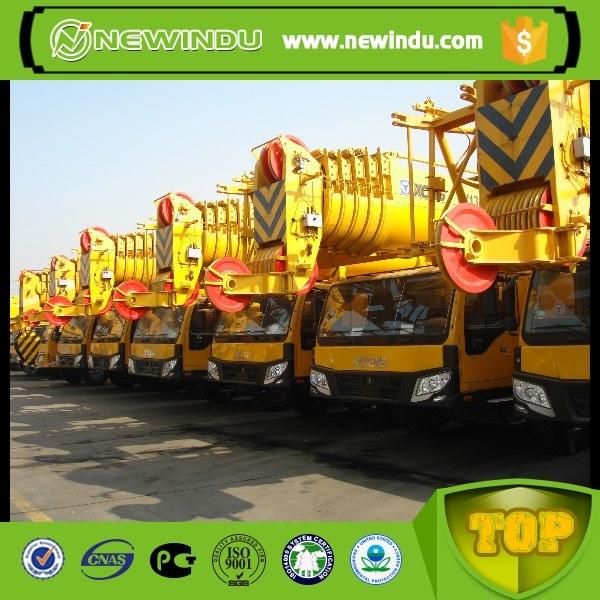

Cheap Qy110K Motor Truck Crane Hot Sale

Cheap Qy110K Motor Truck Crane Hot Sale

Cheap Qy110K Motor Truck Crane Hot Sale

Cheap Qy110K Motor Truck Crane Hot Sale

Cheap Qy110K Motor Truck Crane Hot Sale

Cheap Qy110K Motor Truck Crane Hot Sale

Cheap Qy110K Motor Truck Crane Hot Sale

Cheap Qy110K Motor Truck Crane Hot Sale
