Chinese Brand SA/Ny for Sale Scc1000A 100t Crawler Crane
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- After-sales Service:Engineer Available
- Max. Lifting Height:1 Year
- Rated Loading Capacity:100t
- Certification:ISO9001, CE, RoHS, BV
- Condition:New
- Warranty:1 Year
Base Info
- Model NO.:SCC1000A
- Max Lifting Moment:396TM
- Max Boom Length:64m
- Engine:Isu-Zu, Weichai
- Transport Package:Nude Package, Containers
- Specification:100T crawler crane
- Trademark:SA,NY
- Origin:Hunan, China
- HS Code:8426491000
- Production Capacity:100 Sets,Month
Description
Basic Info.
Model NO. SCC1000A Max Lifting Moment 396TM Max Boom Length 64m Engine Isu-Zu, Weichai Transport Package Nude Package, Containers Specification 100T crawler crane Trademark SA/NY Origin Hunan, China HS Code 8426491000 Production Capacity 100 Sets/MonthProduct Description

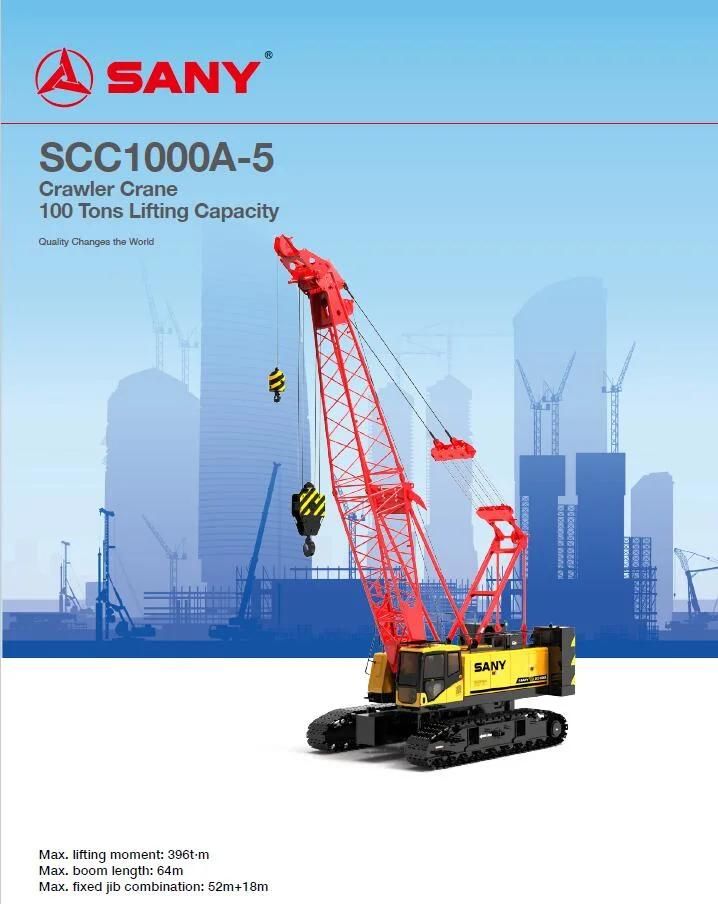

Chinese Brand SA/NY for sale SCC1000A 100t Crawler Crane
Max. lifting moment: 396t·m
Max. boom length: 64m
Max. fi xed jib combination: 52m+18m
EASY TO TRANSPORT
Transport performance in line with global standards, low transport costs.
SELF ASSEMBLY/DISASSEMBLY
Efficient self assembly/disassembly system, greatly reducing assembly and disassembly time.
Engine
▪▪ISU/ZU 6HK1XKSC Diesel Engine;
▪▪Type: 6-cylinder in-line, direct injection, turbo-charger, watercooled,
intercooler. Compliant with European Off-highway Tier
III emission standard, and Chinese Off-highway Tier III emission
standard;
▪▪Displacement: 7.79L;
▪▪Rated power: 212kW/2000rpm;
▪▪Operation power: 200kW/1800rpm;
▪▪Max. output torque 1080N·m/1500rpm;
▪▪Starter device: 24V-5.0kW;
▪▪Battery: two 12V large battery in serial connection;
▪▪Fuel tank: 400L.
Electrical Control System
▪▪Self-developed SYIC-II integrated control system is adopted with
higher integration, precise operation and reliable quality;
▪▪Control system consists of power system, engine system,
main control system, LML system, auxiliary system and safety
monitoring system. CAN BUS is used for data communication
between controller, monitor and the engine;
▪▪Monitor: the working parameters and status are shown on the
monitor, such as the engine speed, fuel volume, engine oil
pressure, servo pressure, engine working hours, lifting conditions
and boom angle;
▪▪The Sky Eye system and the function to get on/off the trailer by
remote control are offered optionally.

SCC1000A-5 | SCC1000A-6 | ||
Max Lifting Capacity | 100T | 100T | |
Max Lifting Moment | 396t·m | 396t·m | |
Max Boom Length | 64m | 64m | |
Fixed jib length | 18m | 18m | |
Longest main boom + fixed jib | 52+18m | 52+18m | |
Luffing jib length | /m | /m | |
Longest main boom + luffing jib | /m | /m | |
Engine | ISU/ZU 6HK1XKSC | 9Weichai WP7 | |
Engine output | 212/2000kW/ rpm | 199/2300kW/ rpm |
