• Model NO.：SCA1000A
• Max Lifting Moment：380TM
• Max Boom Length：64m
• Engine：Cummins Qsl9
• Transport Package：Nude Package, Containers
• Specification：100T crawler crane
• Trademark：SA,NY
• Origin：Hunan, China
• HS Code：8426491000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. SCA1000A Max Lifting Moment 380TM Max Boom Length 64m Engine Cummins Qsl9 Transport Package Nude Package, Containers Specification 100T crawler crane Trademark SA/NY Origin Hunan, China HS Code 8426491000 Production Capacity 100 Sets/Month

Product Description

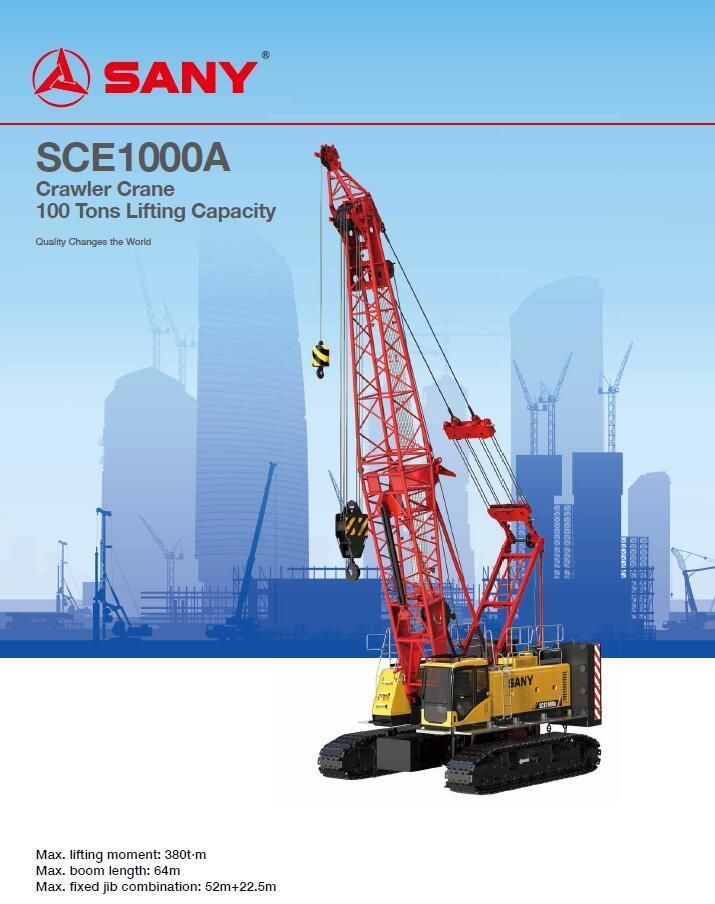

Crane SCE1000A SCA1000A 100T Lattice Boom Crawler Crane

Max. lifting moment: 380t·m
Max. boom length: 64m
Max. fi xed jib combination: 52m+22.5m

EASY TO TRANSPORT
Transport performance in line with global standards, low transport costs.

SELF ASSEMBLY/DISASSEMBLY
Efficient self assembly/disassembly system, greatly reducing assembly and disassembly time.

Engine
▪▪Model: Cummins QSL9-C325 Diesel engine;
▪▪Type: 4-stroke, water-cooled, vertical in-line 6 cylinders, direct
injection, turbo-charger, intercooler, complied with European
Non-road Tier V Emission Standard and US EPA Tier F4(f)
Emission Standard;
▪▪Displacement: 8.9L;
▪▪Rated power: 242kW/1800rpm;
▪▪Operation power: 242kW/1800rpm;
▪▪Max. Torque: 1526N.m/1400rpm;
▪▪Starter: 24V-6.0kW;
▪▪Radiator: fin type aluminum plate core;
▪▪Air cleaner: Dry type system with main filter element, safety
element and resistance indicator;
▪▪Throttle: Grip type hand throttle, electrically-controlled;
▪▪Fuel filter: Replaceable paper element;
▪▪Batteries: Two 12V×165Ah capacity batteries, connected in
series;
▪▪Fuel tank capacity: 400L.

Electrical Control System
▪▪Self-developed SYIC-II integrated control system is adopted with
higher integration, precise operation and reliable quality;
▪▪Control system consists of power system, engine system,
main control system, LMI system, auxiliary system and safety
monitoring system. CAN BUS is used for data communication
between controller, monitor and the engine;
▪▪Monitor: the working parameters and status are shown on the
monitor, such as the engine speed, fuel volume, engine oil
pressure, servo pressure, engine working hours, lifting conditions
and boom angle.



	SCE1000A	SCE1000A
Max Lifting Capacity	100T	100T
Max Lifting Moment	380t·m	380t·m
Max Boom Length	64m	64m
Fixed jib length	22.5m	22.5m
Longest main boom + fixed jib	52+22.5m	52+22.5m
Luffing jib length	/m	/m
Longest main boom + luffing jib	/m	/m
Engine	CCUMMINS QSL9	CUMMINS QSL9
Engine output	249/2100kW/ rpm	249/2100kW/ rpm
