• Model NO.：SQ6.3ZA3
• Shaft Number：2
• Crane Jib：Three-Arm
• Type：Folding
• Color：According Customer Requirement
• Painting：Galvanized, Anti Oxidation
• Materials：Hq60, Hq70, Q345
• Boom Type：Telescopic Boom
• Max Working Radius：8.3m
• The Min Capacity：550kg
• Installation Space：750mm
• Self Weight：1150kg
• Rotation Angle：360
• Product Name：6 Ton Boom Truck Mounted Mobile Crane in Kenya for
• Transport Package：Wooden Cases
• Specification：4110*264*612; 2396*643*1843
• Trademark：BOB-LIFT
• Origin：Xuzhou, China
• HS Code：8426910000
• Production Capacity：100 Sets,Month

SQ6.3ZA2 Max Lifting Capacity Ton 6.3 Max Lifting Moment Ton.m 13 Recommend Power KW 22 Hydraulic System Flow L/min 35 Hydraulic System Pressure MPa 28 Oil Tank Capacity L 100 Installation Space mm 1050 Rotation Angle °400

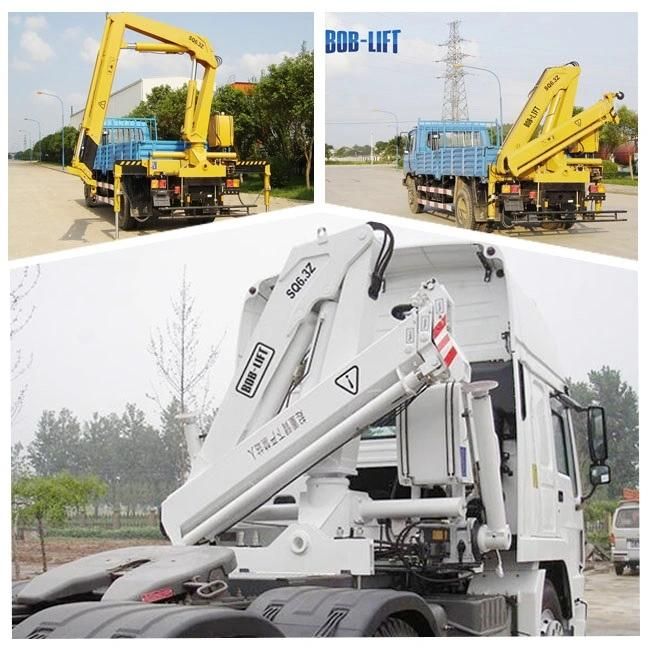

PRODUCT PICTURES

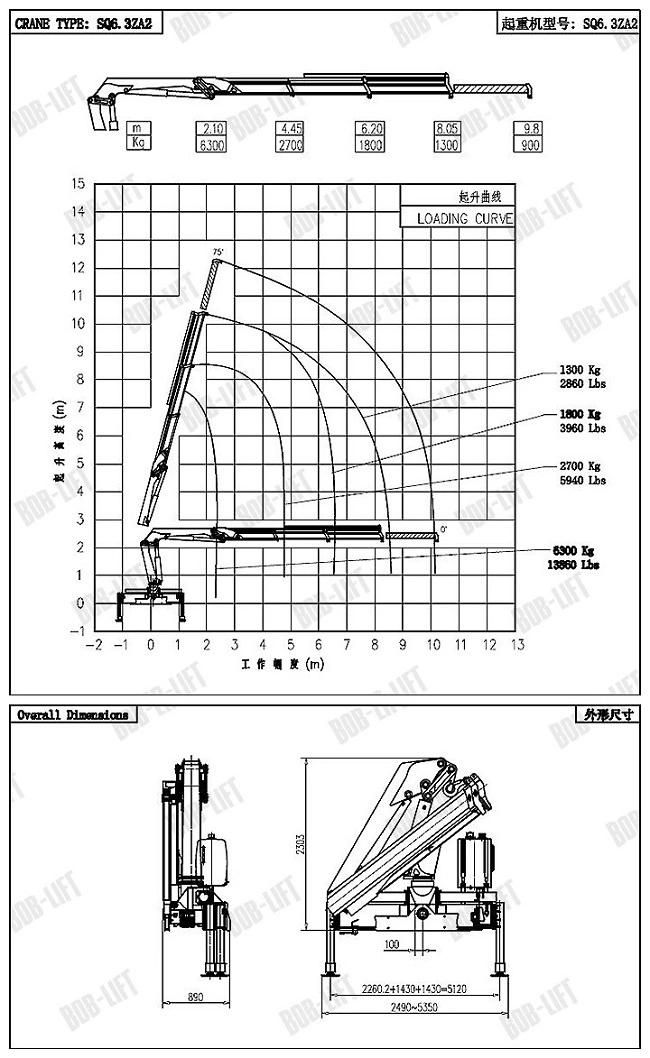

TECHNICAL DATA



PACKING DETAILS

CERTIFICATE


FAQ

1. Factory History?

16 Years production, 10 years export experience.

2. Steel material manufacturer?
Shanghai Baosteel

3. Type of the boom?
Hydraulic boom+jib/manual boom(optional attachment)

4. How to finish the preshipment inspection?
Factory Inspection, video provided

5. Optional Attachments

Remote Control, Moment Limited Valve, Top Seat, Work Basket, Assistant Stabilizer leg...
