Hydraulic Folding Arm Crane Manipulator China

XUZHOU BOB-LIFT CONSTRUCTION MACHINERY CO., LTD.
  • After-sales Service：Yes
  • Warranty：1year
  • Certification：CE, ISO9001
  • Condition：New
  • Maximum Lifting Height：<10m
  • Maximum Lifting Weight：2-4t

Base Info

  • Model NO.：SQ3.2ZA2
  • Shaft Number：2
  • Crane Jib：Three-Arm
  • Type：Folding
  • Color：According Customer Requirement
  • Painting：Galvanized, Anti Oxidation
  • Materials：Hq60, Hq70, Q345
  • Boom Type：Knuckle Boom
  • Max Working Radius：7.7m
  • The Min Capacity：680kg
  • Installation Space：850mm
  • Self Weight：1150kg
  • Rotation Angle：400
  • Product Name：Articulated Crane Hydraulic Arm for Trucks
  • Transport Package：Wooden Cases
  • Specification：2372*1080*2418
  • Trademark：BOB-LIFT
  • Origin：Xuzhou, China
  • HS Code：83269100
  • Production Capacity：100 Sets,Month

Description

SQ3.2ZA2 Max Lifting Capacity Ton 3.2 Max Lifting Moment Ton.m 6.8 Recommend Power KW 14 Hydraulic System Flow L/min 25 Hydraulic System Pressure MPa 25 Oil Tank Capacity L 160 Installation Space mm 850 Rotation Angle °400

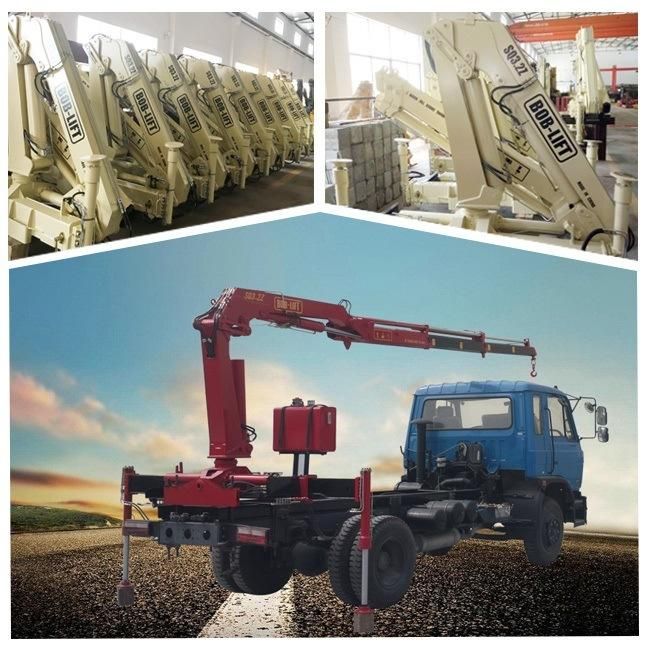

PRODUCT PICTURES
Hydraulic Folding Arm Crane Manipulator China

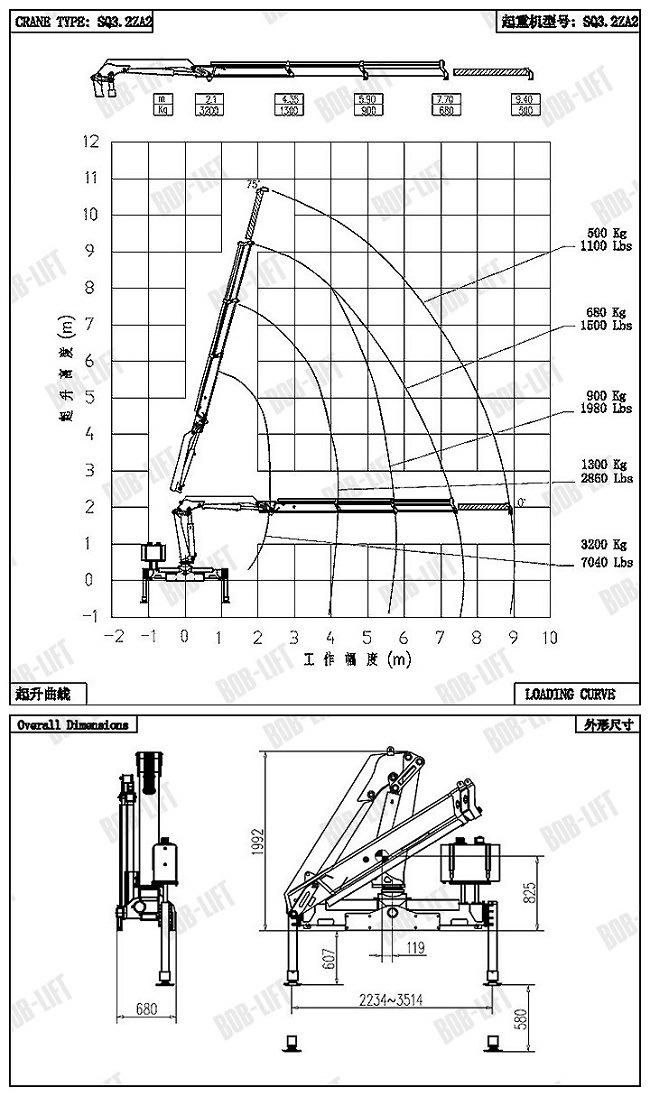

TECHNICAL DATA

Hydraulic Folding Arm Crane Manipulator China


PACKING DETAILS

Hydraulic Folding Arm Crane Manipulator China
CERTIFICATE

Hydraulic Folding Arm Crane Manipulator China
FAQ

1. Factory History?

16 Years production, 10 years export experience.

2. Steel material manufacturer?
Shanghai Baosteel

3. Type of the boom?
Hydraulic boom+jib/manual boom(optional attachment)

4. How to finish the preshipment inspection?
Factory Inspection, video provided

5. Optional Attachments

Remote Control, Moment Limited Valve, Top Seat, Work Basket, Assistant Stabilizer leg...


Hydraulic Folding Arm Crane Manipulator China
