• Model NO.：SQ3.2SA2
• Shaft Number：2
• Crane Jib：Three-Arm
• Type：Straight Arm
• Color：According Customer Requirement
• Painting：Galvanized, Anti Oxidation
• Materials：Hq60, Hq70, Q345
• Boom Type：Telescopic Boom
• Max Working Radius：8.3m
• The Min Capacity：550kg
• Installation Space：750mm
• Self Weight：1150kg
• Rotation Angle：360
• Product Name：Small Hydraulic Truck with Crane
• Transport Package：Wooden Cases
• Specification：4110*264*612; 2396*643*1843
• Trademark：BOB-LIFT
• Origin：Xuzhou, China
• HS Code：8426910000
• Production Capacity：100 Sets,Month

SQ3.2SA2 Max Lifting Capacity Ton 3.2 Max Lifting Moment Ton.m 7 Recommend Power KW 14 Hydraulic System Flow L/min 25 Hydraulic System Pressure MPa 20 Oil Tank Capacity L 60 Installation Space mm 750 Rotation Angle °1150

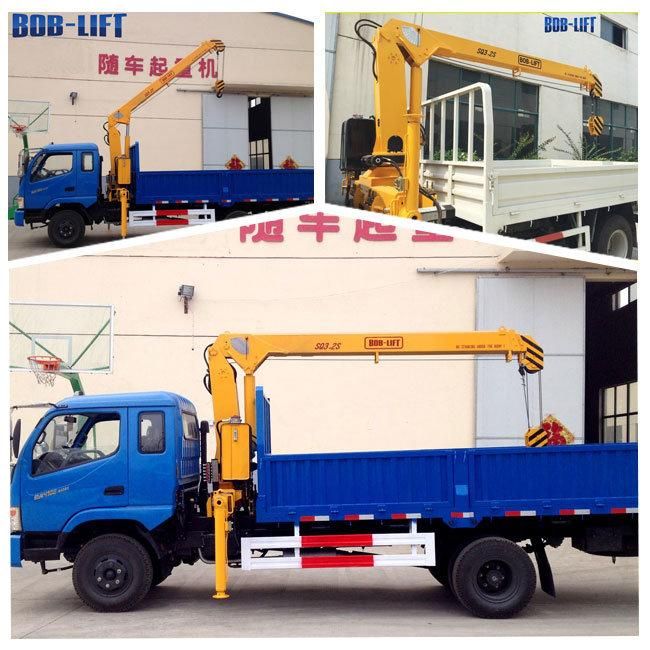

PRODUCT PICTURES

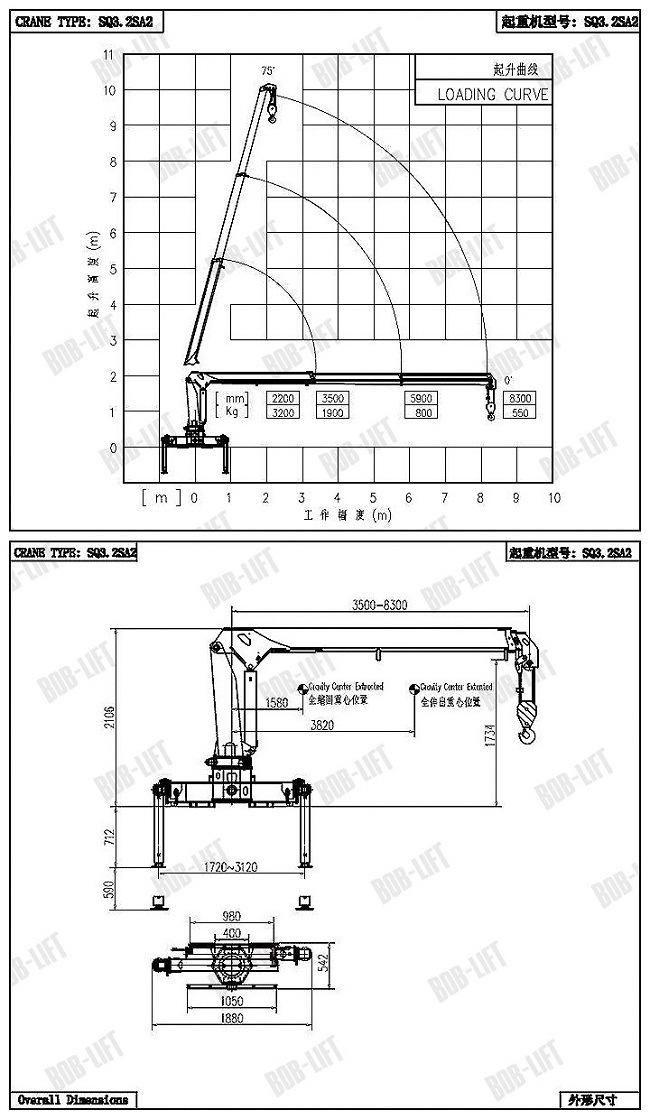

TECHNICAL DATA


PACKING DETAILS

CERTIFICATE

FAQ

1. Factory History?

16 Years production, 10 years export experience.

2. Steel material manufacturer?
Shanghai Baosteel

3. Type of the boom?
Hydraulic boom+jib/manual boom(optional attachment)

4. How to finish the preshipment inspection?
Factory Inspection, video provided

5. Optional Attachments

Remote Control, Moment Limited Valve, Top Seat, Work Basket, Assistant Stabilizer leg...
