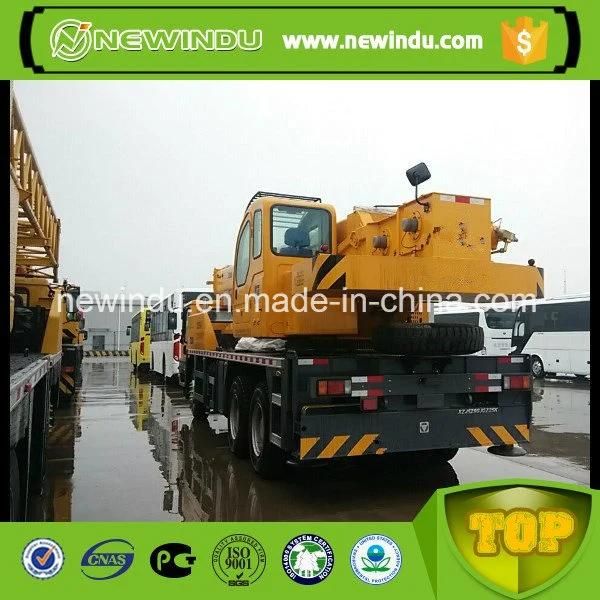

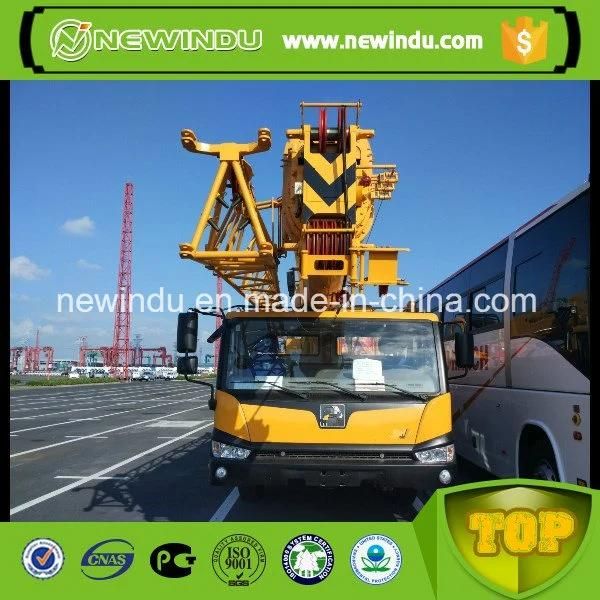

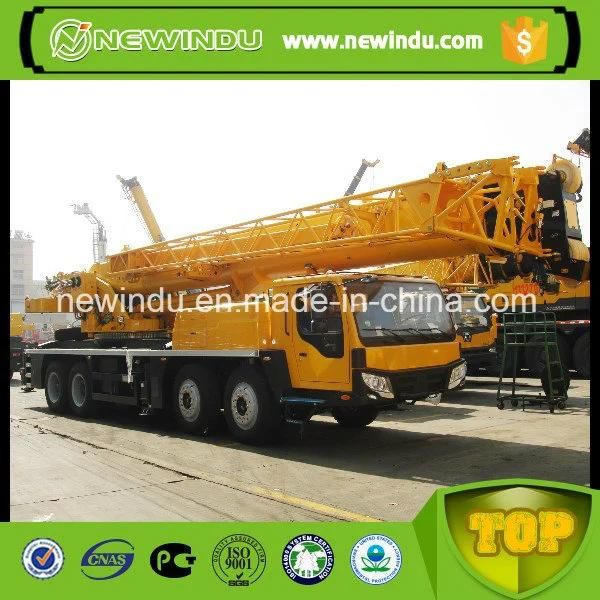

Hoisting Machine Mini Truck Crane 12 Ton Xct12L4 New Mobile Crane
Newindu Construction Engineering (Shanghai) Co., Ltd.- After-sales Service：Online Service, Spare Parts
- Warranty：2 Years
- Certification：GS, RoHS, CE, ISO9001
- Condition：New
- Maximum Lifting Height：30-40m
- Maximum Lifting Weight：11-13t
Base Info
- Model NO.：XCT12L4
- Shaft Number：3
- Crane Jib：Four-Arm
- Type：Straight Arm
- Total Weight in Travel：16000kg
- Engine：Shangchai
- Rated Power：158kw
- Length：10200mm
- Transport Package：Container Roro Bulk Break Shipment
- Specification：10200*2500*3200mm
- Trademark：China
- Origin：Jiangsu
- HS Code：8705109100
- Production Capacity：50PCS,Month
Description
Dimension
Unit
Overall length
mm
10200
Overall width
mm
2500
Overall height
mm
3200
Weight
Total weight in travel
kg
16000
Front axle load
kg
6000
Rear axle load
kg
10000
Power
Engine model
6C215,WD415.21,SC8DK230Q3
Engine rated power
kW/(r/min)
158/2200,155/2200,170/2200
790/1400,820/1400,830/1400
Engine rated torque
N.m/(r/min)
Travel
Max. travel speed
km/h
68,75
Min. turning diameter
mm
18000
Min. ground clearance
mm
260
Approach angle
°
21
Departure angle
°
10
Max. grade ability
%
≥26,≥28
Fuel consumption for 100km
L
30, 40
Our company
We, Newindu E-Commerce (Shanghai) Co., Ltd, are professional in construction machinery for nearlly 10 years,exporting with good quality and low price, having excavator,truck crane,bulldozer,wheel loader,motor grader,drilling rig,dump truck,road roller,forklift,reach stacker,and also including the spare parts,etc.
