• Model NO.：QY25K5
• Shaft Number：2
• Crane Jib：Two-Arm
• Type：Straight Arm
• Transport Package：Nude Package
• Specification：25 ton
• Trademark：Sinomada
• Origin：China
• HS Code：8429521200
• Production Capacity：50000pieces,Year

Basic Info.

Model NO. QY25K5 Shaft Number 2 Crane Jib Two-Arm Type Straight Arm Transport Package Nude Package Specification 25 ton Trademark Sinomada Origin China HS Code 8429521200 Production Capacity 50000pieces/Year

Product Description

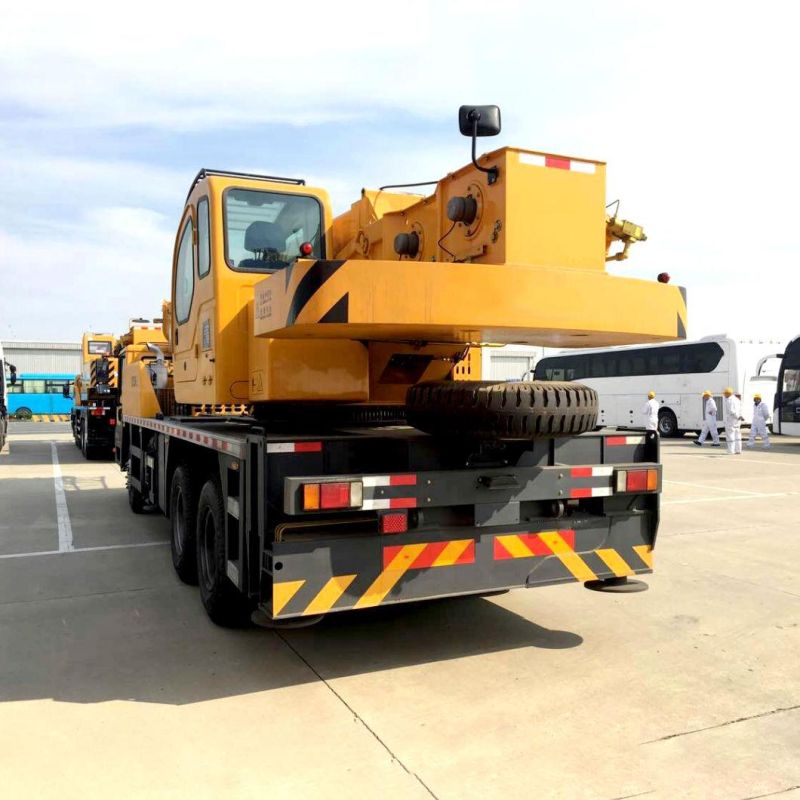

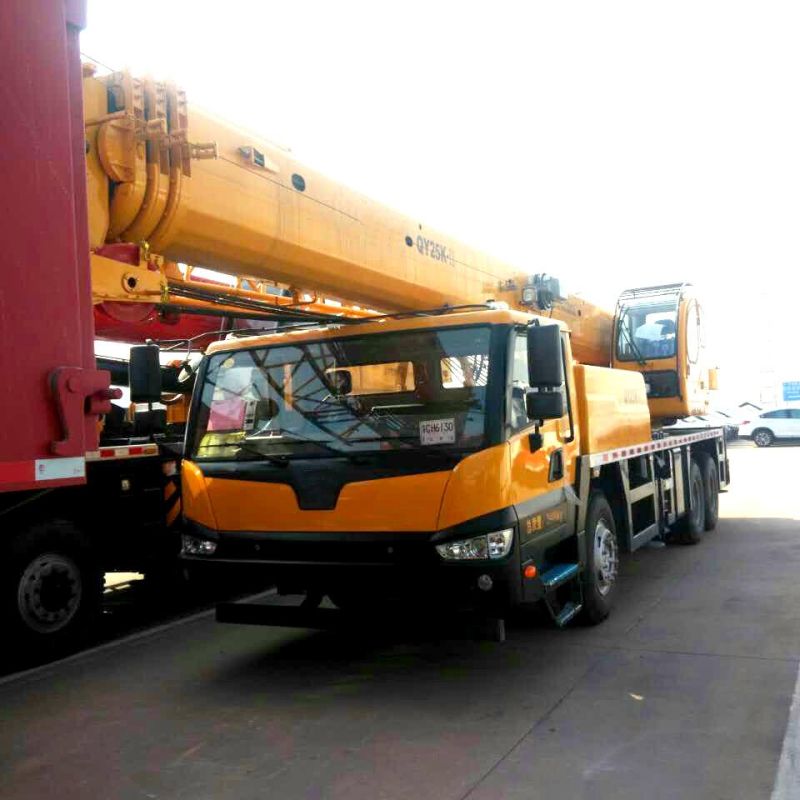

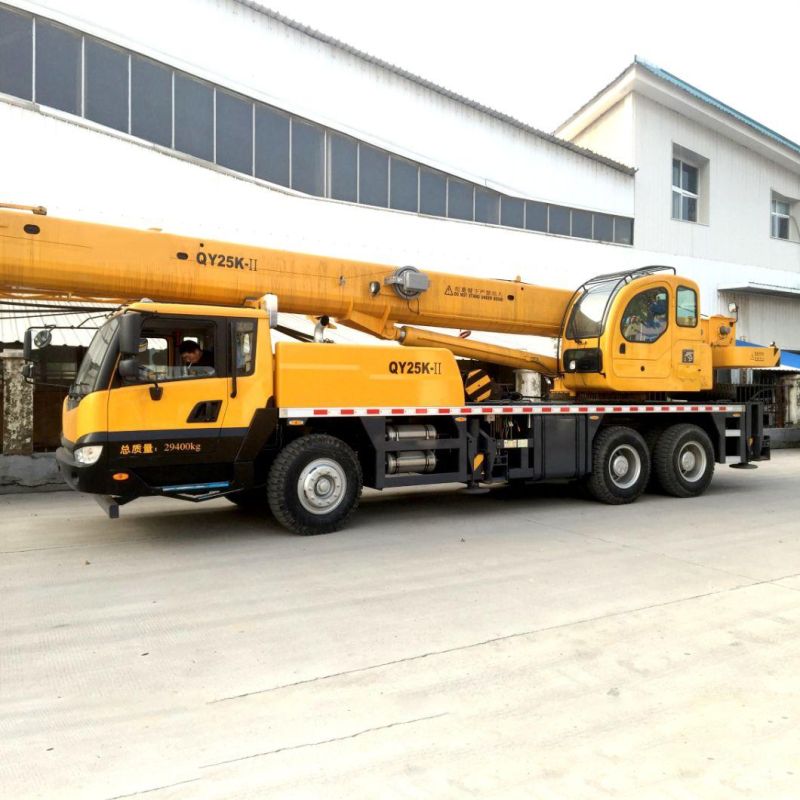

QY25K5 Truck Crane 25t Mobile Construction Crane For Sale

1. Truck crane QY25k5 adopts U-shaped cross-section boom has small depth-width ratio, strong bearing capacity, small deformation,strong anti-bending and powerful lifting capacity.The main boom length is 10.6m to 41.0m, the performance of mid-extended boom and fully-extended are also superior.



2. Plug-in boom head effectively increases theboom connect length andreducesboom deformation.



3. Truck crane QY25k5 embedded sliders are equipped, which enlarge the contact square and reduce the contact stress of boom.



4. Truck crane QY25k5 with 9-speed transmission equipped, it has superior travel and grade ability. The max. grade abilityis 40%, max. travel speed is 90km/h.



5.Meets the requirements of speed and reduces the energy consumption and system heat effectively.


Category	Item	Unit	Parameter
Outline Dimensions	Overall length	mm	12680
	Overall width	mm	2500
	Overall height	mm	3400
	Axle base	mm	4425+1350
	Wheel base	mm	2074/1834/1834
Weight	Total vehicle mass in travel configuration	kg	32865
Power	Model		SC9DF290Q3
	Rated power	kw/(r/min)	213/2200
	Rated torque	N.m/(r/min)	1200/1400
Travel Performance	Max. travel speed	km/h	90
	Min. turning diameter	m	22
	Min. ground clearance	mm	275
	Approach angle	°	11
	Departure angle	°	12
	Braking distance(at 30 km/h)	m	≤10
