• Model NO.：STC500E
• Shaft Number：4
• Crane Jib：Four-Arm
• Type：Straight Arm
• Color：Red
• Power Source：Hydraulic
• Sling Type：Wire Rope
• Rated Output：247kw
• Engine：Weichai Engine
• Max Lifting Height：61m
• Max Lifting Moment：2058kn.M
• Max Boom Length：44.5m
• Jib Length：16m
• Max Traveling Speed：85km,H
• Transport Package：Nude, Suitable for Shiping
• Specification：ISO
• Trademark：ORIEMAC
• Origin：Hunan, China
• Production Capacity：100 Sets,Month

Max.lift capacity 50tDimensions & WeightsOverall Length 13750 mm Overall Width  2760 mmOverall Height 3650 mm Axle DistanceAxle 1-21450 mmAxle 2-34000 mmAxle3,41350mmOverall WeightAxle Load Alex Load 1-216000Kg Axle Load 3-426000 Kg Crane Carrier    Rated Power  250KW/2100RPMRated Torque 1425Nm/1200RPM Maxi.Travelling Speed 85 KM/HMin.Turning Radius 12mMin.Turning Radius Of Boom Head 14.5mWheel Formula 8x4Min.Ground Clearance 295mmApproach Angle  18°Departure Angle  12°Max.Gradeablity 40%Fuel Consumption per 100km ≤ 45LCrane Superstructure  Temperature Range -20 ° till + 40 °Min.Rated Range  3 mBoom Section  5Boom Shape U ShapeMax.Lifting Moment Base Boom1774KN.MFull Extend Boom840.5KN.MFull Extend Boom+Jib318KN.MBoom LengthBase Boom11.5 m Full Extend Boom43 m Full Extend Boom+Jib59 mOut Trigger Span
(LongitudinalxTransversal) 6x7.2mJib Offset  0°/15°/30°

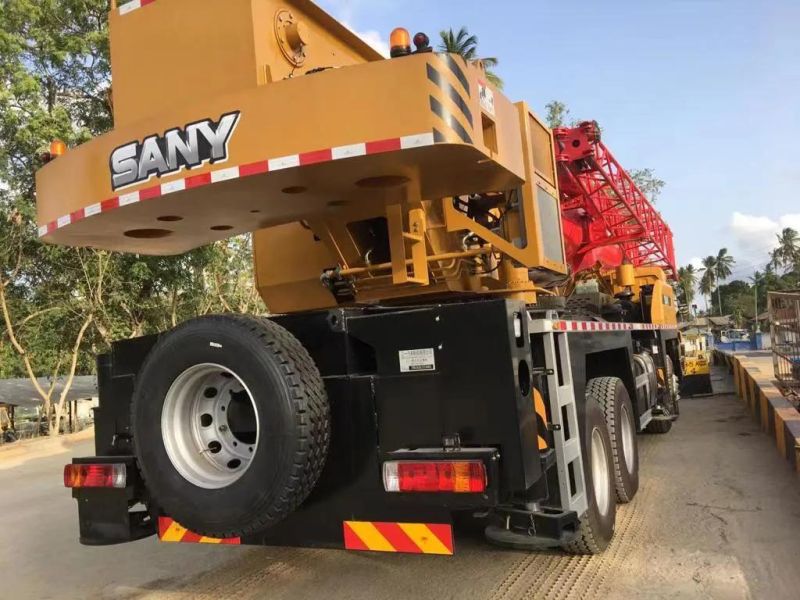

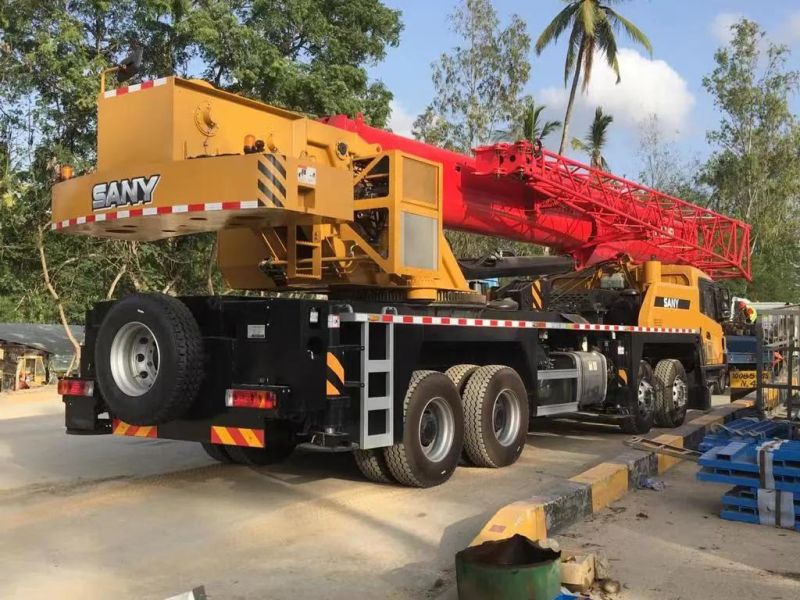

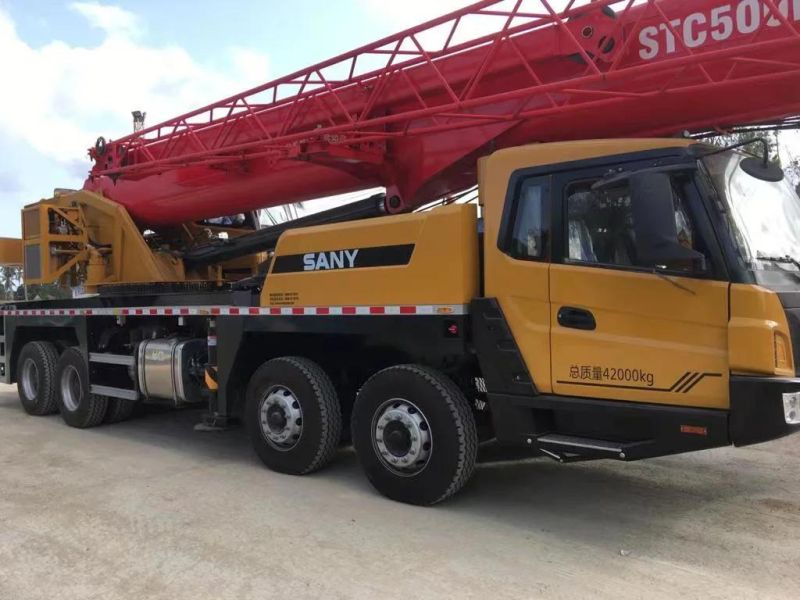

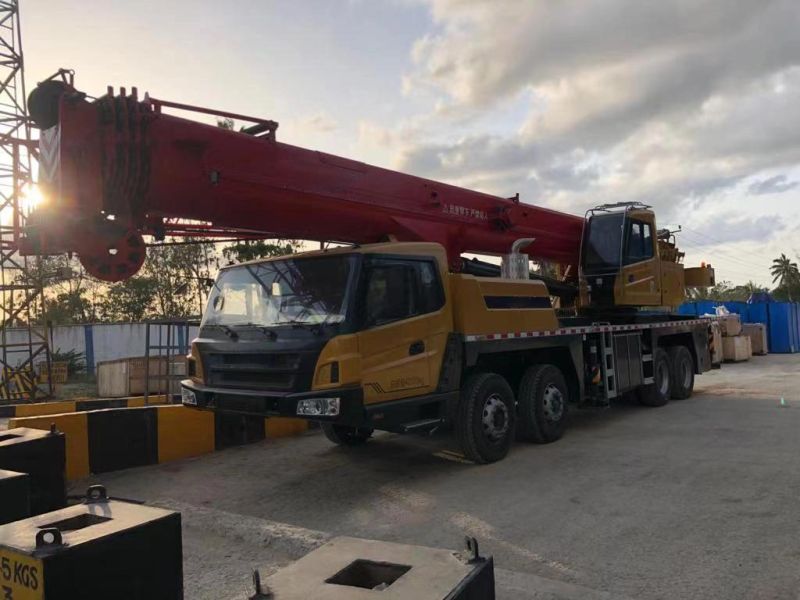

Photo Show:
